STwrench BATTERY
MODEL

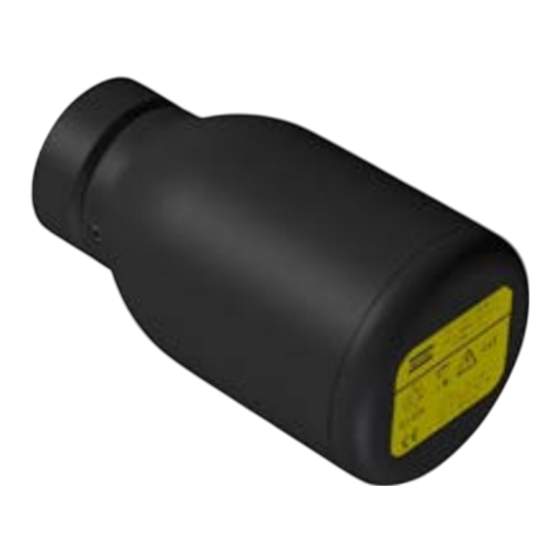

STwrench battery
8059 0930 86
P/N
TYPE
Lithium-ion, 3.75V 5.2Ah
215g
CELL WEIGHT
The cells are installed inside the battery shell. When the product is dismissed, remove the
cover to extract the battery pack (for Battery BI open separate the shell in two parts to extract
the battery):
Remove the cover
NOTE: Once removed, the wasted batteries must be dismissed according local regulations
1 (4)
BATTERY INSTALLATION GUIDE
BATTERY PACK SPECIFICATION
Extract the battery
STwrench battery short HD
8059 0930 83
Lithium-ion, 3.75V 2.6Ah
110g
STwrench Battery BI
8059 0930 85
Lithium-ion, 3.7V 2.9Ah
50g
9836 4565 01 Revision 2.3
Advertisement
Related Manuals for Atlas Copco STwrench battery
Summary of Contents for Atlas Copco STwrench battery

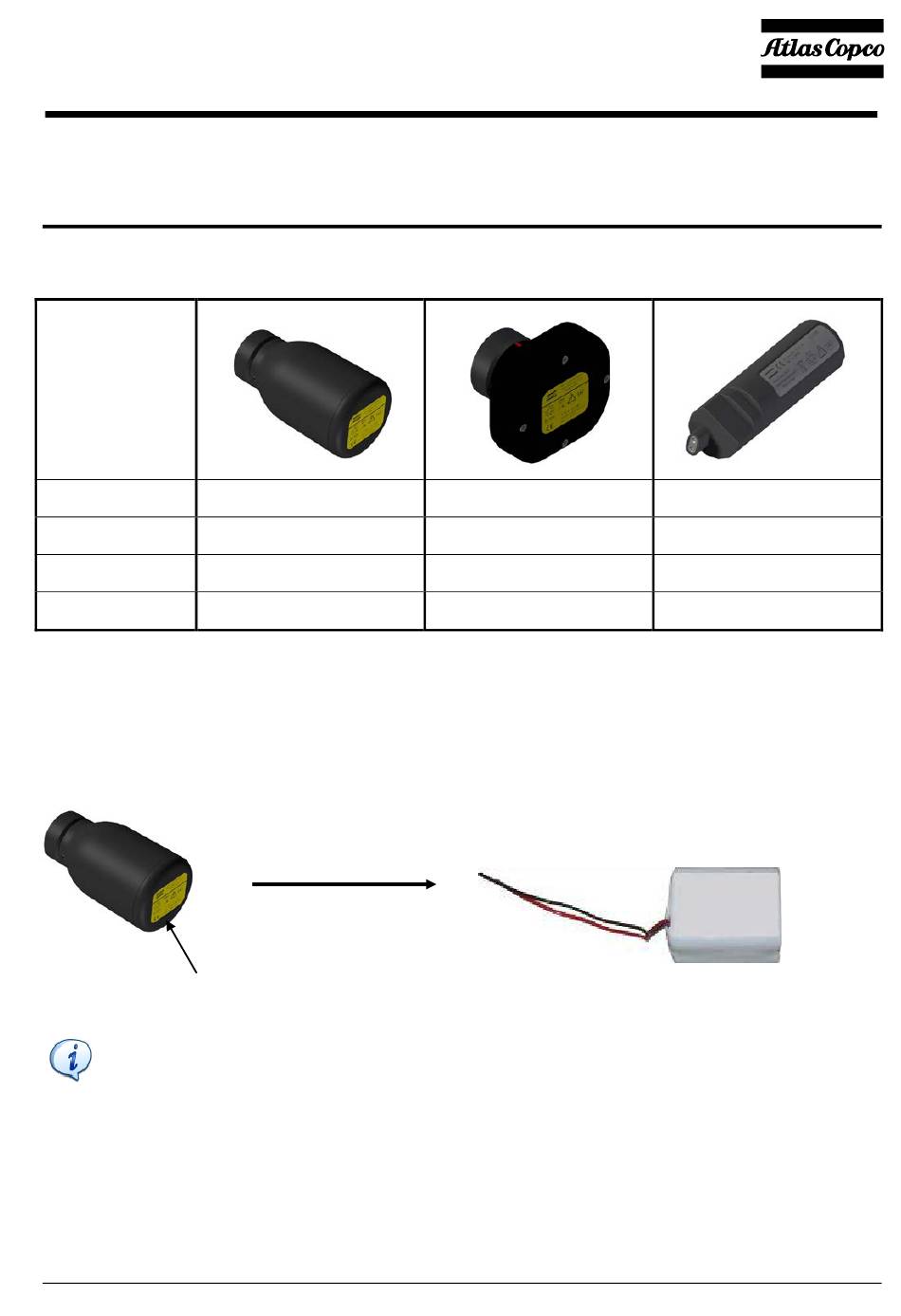

- Page 1 STwrench BATTERY BATTERY INSTALLATION GUIDE BATTERY PACK SPECIFICATION MODEL STwrench battery STwrench battery short HD STwrench Battery BI 8059 0930 86 8059 0930 83 8059 0930 85 TYPE Lithium-ion, 3.75V 5.2Ah Lithium-ion, 3.75V 2.6Ah Lithium-ion, 3.7V 2.9Ah 215g 110g CELL WEIGHT The cells are installed inside the battery shell.
- Page 2 STwrench BATTERY GENERAL The STwrench Battery is a Lithium-ion battery, which provides the power supply to the STwrench. Two different models are also available: • “Short HD” version, to be installed on the standard STwrench controller. • “Battery inside” (BI) version, to be installed in the STwrench controller BI.
- Page 3 STwrench BATTERY STwrench Battery BI Cover Battery inside NOTE: there is only one way to insert the battery in the wrench controller. Be careful to insert the pins in the position to match the pins inside the controller. The cover cannot be mounted if the battery is not inserted properly in the controller.
- Page 4 STwrench BATTERY RECHARGING THE BATTERY Battery inside BI Standard or “short HD” battery Adapter LEDs Battery Charger Battery Charger • Connect the battery charger to the AC power • Plug-in the battery in the battery charger • Verify that the Power On and the Charging LEDs on the battery charger are alighted •...
