Summary of Contents for JUNO JGU6426

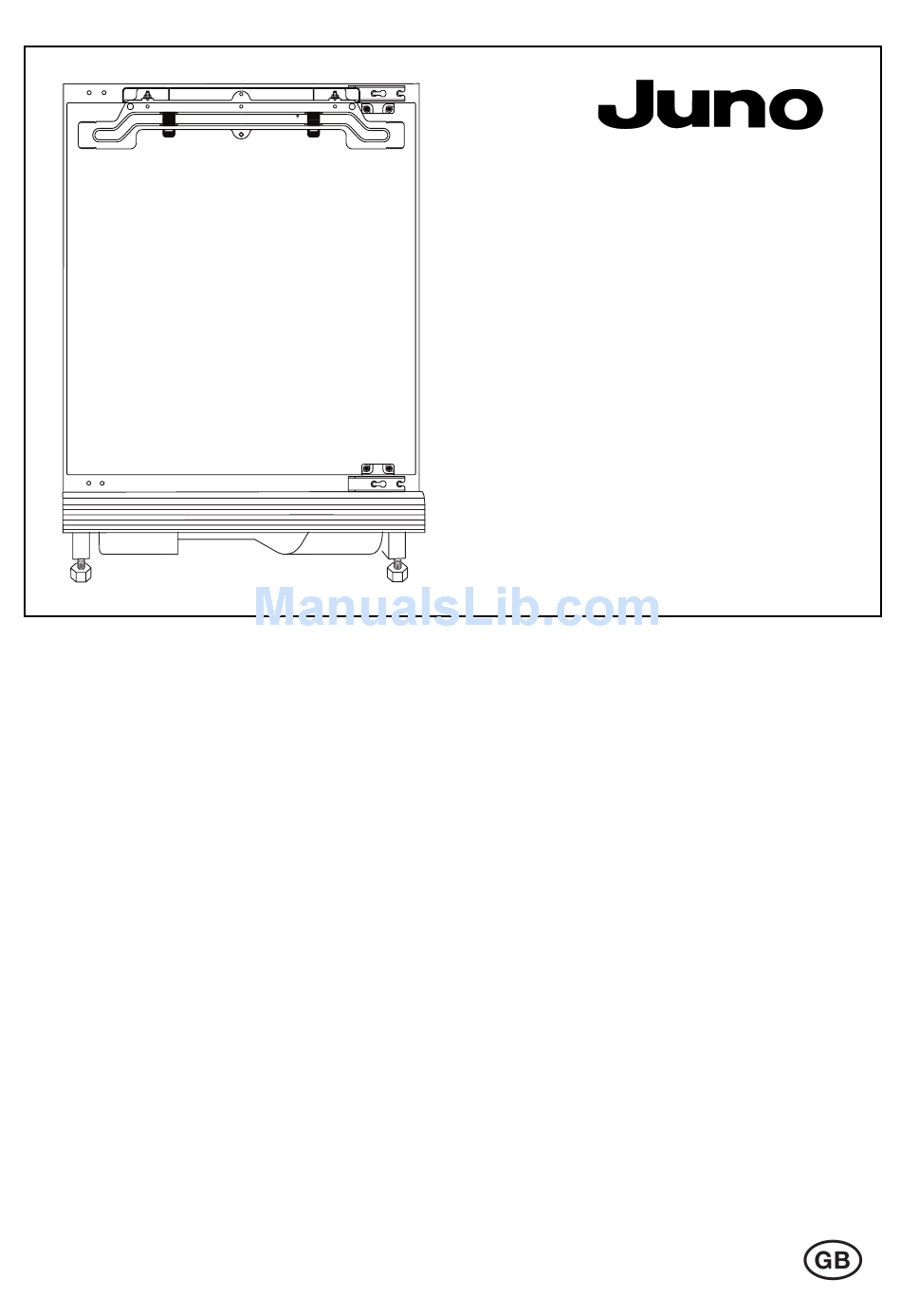

- Page 1 JGU 6426 GEBRAUCHSANWEISUNG OPERATING INSTRUCTION 2222738-62...
-
Page 2: Table Of Contents
Installation Positioning Electrical connection Cleaning the interior Grid preparation Control panel Door reversal Starting up Building in the appliance under a worktop Temperature regulation Fitting the plinth Quick freezing Warning light Acoustic alarm Cold accumulators Freezing calendar Freezing of fresh foods... -
Page 3: Important Safety Instructions
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can be acquainted with the functioning of the appliance and the relevant warnings. -
Page 4: Description Of The Appliance
Always ensure that there is adequate refrigerant circuit or insulation materials. The ventilation as a failure to do this will result in appliance shall not be discarded together with component failure and possible food loss. See the urban refuse and rubbish. -
Page 5: Use
Do not use detergents or abrasive powders, as these will damage the finish. Control panel Symbol for acoustic alarm Fast freeze switch and for stopping the acoustic alarm (warning light on) Fast freeze light (yellow) Warning light (red) Pilot light (green) -
Page 6: Quick Freezing
Fill these trays with water, then put them in the freezer. To quick-freeze foods when the appliance has not Do not use metallic instruments to remove been in use, switch on the freezer and let it run on the the trays from the freezer. -
Page 7: Tips
Avoid opening the door too frequently and when that the wrapping adheres closely to the food and you do open it, leave it open only for as long as is is well sealed. In this way, by avoiding contact with strictly necessary;... -
Page 8: Periodic Cleaning
To carry out complete defrosting proceed as follows: 1. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place. 2. Turn the thermostat control to the «O» setting. 3. Leave the door open. -
Page 9: Customer Service And Spare Parts
TECHNICAL SPECIFICATIONS The technical data is indicated in the rating plate on the left side inside the appliance. Height 815 mm Width 596 mm Depth 540 mm... -
Page 10: Grid Preparation
Door reversal Left door opening: To reverse the opening direction of the door, proceed as shown in the figures: Remove the left side (A) of the grid cutting it from the rear (see figure). DO002/2 Right door opening: Remove the right side (B) of the grid cutting it from the rear (see figure). -
Page 11: Building In The Appliance Under A Worktop
Warning! If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket or accelerate this process by heating up the part involved with a normal hairdrier. - Page 12 II52 3. Position the two brackets as shown in the figure. 6. If necessary, pads are supplied for the rear feet to make sliding the appliance in and out of the recess easier. To fit the pads, press them onto the rear feet.
- Page 13 Screw appliance into place and retain the cabinet with screws. 9. To mount the furniture door proceed as shown in the figures: UPPER PART OF KITCHEN FURNITURE PANEL LOWER PART OF KITCHEN FURNITURE PANEL...
-
Page 14: Fitting The Plinth
For plinth heights greater than a=100 mm, b=150 mm, a cut should be made in the plinth, 580 mm wide, in the centre of the appliance position, leaving a remaining height of a=100 mm, b=150 Attach plinth to the kitchen units.
