Kingfisher SGUP/ST Installation Instructions

1 2 3 4
21/02/24 26/03/24 13/04/23 30/07/24
MD MD MD ELVIN
EN Emergency Bulkhead Exit
EN IMPORTANT - These instructions are for your
safety. Please read through them thoroughly prior
to handling the product and retain them for future
reference.
SGUP/ST
5059340964287
SGUP/Y/ST
5059340964034
V20724_5059340964287_MAND2_2324
5059340964287_MNL_IN_V04.indd 1 5059340964287_MNL_IN_V04.indd 1
5
XX/XX/24 EAN: 5059340964287
Page Size: A4
NAME
Impala Ref: PRJ31756

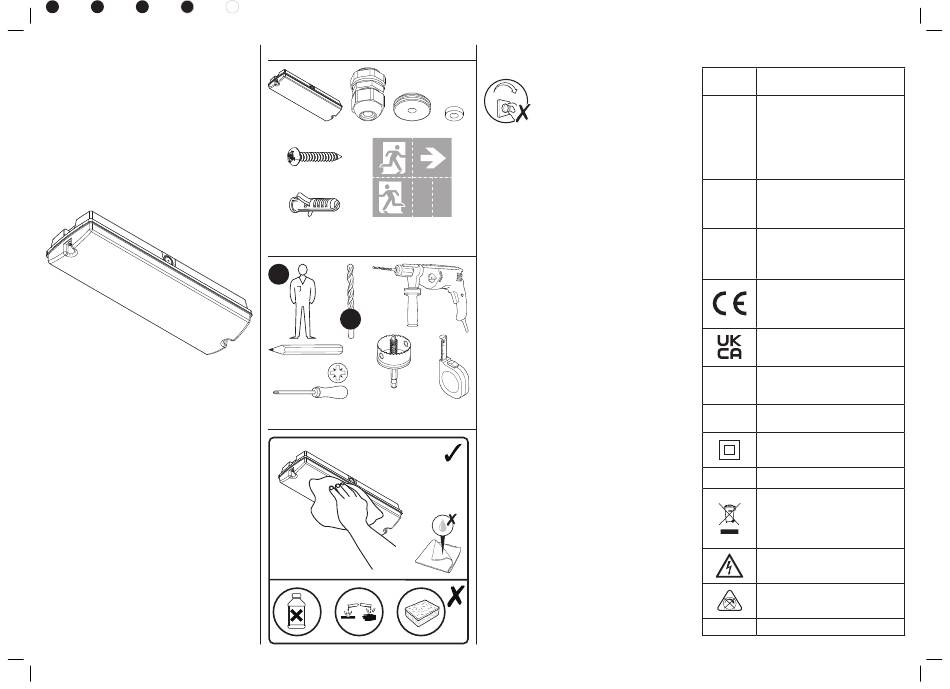

EN Parts
01. x1 02. x1 03. x1
05. x4
06. x4 07. x1
EN You will need
1
x
4/6
mm
Ø20 mm
EN Care & maintenance
EN
Safety
• IMPORTANT Do not use with a
dimmer switch.
0% 100%
• IMPORTANT, Retain for future
reference: read carefully.
04. x4
• These instructions are for your safety. Please
read through them thoroughly prior to installation
and retain them for future reference.
• All fittings must be installed by a competent
person in accordance with local regulations
(IET wiring regulation BS7671).
• Check the pack and make sure you have all of
the parts listed.
• Remove all packaging, wrap etc from the
product.
• Decide on the appropriate location for your
product.
• CAUTION: IP66 is guaranteed when the product
is properly installed and sealed.
• Always avoid the product to be located at
corrosive environment.
• Always refer to the installation drawing for the
orientation of the product.
• The product must be securely fixed to the
mounting surface using the screws and wall
plugs supplied. The screws and wall plugs
supplied are suitable for "masonry" only. Other
fixings not supplied and must be purchased.
• Take care not to drill into any pipes or mains
cables beneath the surface during mounting
holes preparation.
• IMPORTANT: The fixing point(s) selected must
be capable of supporting the full weight of the
light fitting.
• Wiring diagram is for reference only. Always refer
to the terminal marking for wiring. Ensure that all
electrical connections are tight and that no loose
strands are left out of the terminal block.
• Never put anything on the product or hang
anything on any part of this product.
• Never use the terminal cables to bear the
product weight.
• When the product does not light after installation:
> Ensure there is no electricity failure
> Ensure all the connections are secured
• If you have any doubt about installation/use of
this product, consult a qualified electrician.
• Always disconnect the product from mains at
least 10 minutes allowing to cool down before
any maintenance or adjustment.
• It is recommended to have a regular schedule
of care and maintenance to keep the surface
condition well.
Technical Data
Supply 5059340964287: 220-240 V~ 50 Hz
voltage: 5059340964034: 110 V~ 50 Hz
LED (3.5 W)
The light source contained in this
luminaire shall only be replaced by the
Bulb Type: manufacturer or his service agent or a
similar qualified person.
Do not stare at the operating light
source.
Operation
ambient
0 °C to 45 °C
temperature
(ta):
Charging time: 24 hours
Type: 1 x 3.2 V 1500 mAh 18650
Battery:
LiFePO4 0-60°C. Replace only with
the same or equivalent type.
This product complies with
conformity requirements of the
applicable European Regulations or
Directives.
This product complies with
conformity requirements of the
applicable UK Regulations.
Energy
This product contains a light source
efficiency
of energy efficiency class <D>.
class:
Control Replaceable control gear by a
gear: professional.
Class II product - Double Insulated -
No earth required.
IP66
Powerful water jet-proof
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or
local store for recycling advice.
Caution! Risk of electric shock!
Do not use with a dimmer switch.
xxWyy xx-year; yy-week of the year.
