Summary of Contents for SPC SIL Series

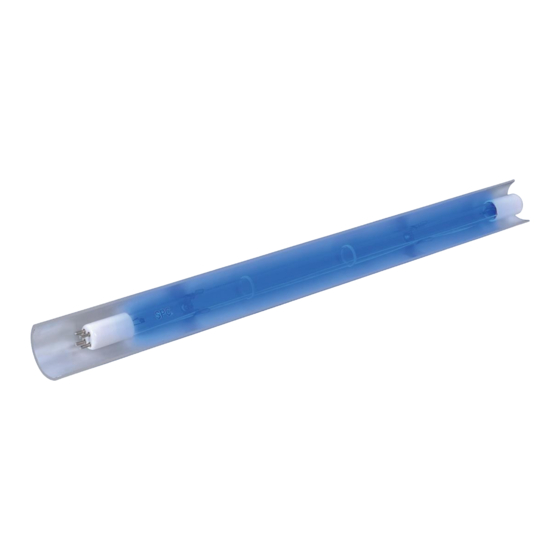

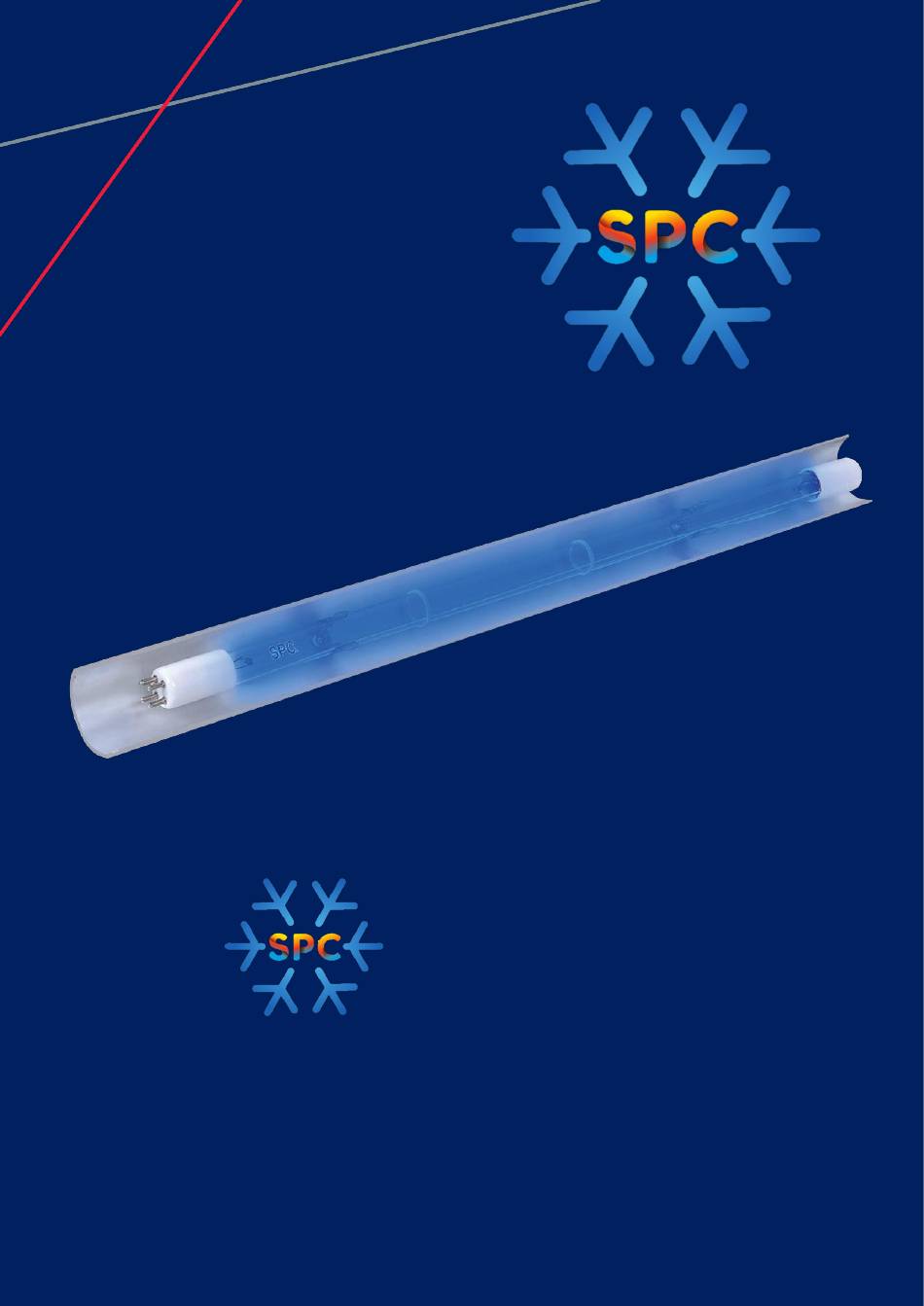

- Page 1 UV Coil Sterilization Installation, operation & maintenance instructions SIL Series...
-
Page 2: Table Of Contents
System. This manual describes the characteristics of the equipment at the current time; therefore it may not capture later technological improvements introduced by SPC as part of its constant endeavor to enhance the performance, ergonomics, safety and functionality of its products. -
Page 3: Safety Instructions
1. Safety instructions SPC believes in a policy of Safety first. We recommend all of our customers who are in direct or indirect use of our product to read the safety instructions first before installation, use of product and performing planned or unplanned maintenance or service. -
Page 4: Technical Data
Lamps 2. Connecting cable, plug and protective boot. should be positioned as indicated on the drawing 3. Control Ballast. provided by SPC. Ideally the coil should be mounted 10-12 inches Note: Depending on the installation; the ballast may be supplied: from the face of the coil. -
Page 5: Installation Guidelines
UVC light, or be constructed of a material that is capable of withstanding UVC exposure levels expected in the product without degrading The SIL Series installation kit contains the following: 2. Mark the position of Aluminum channels to be A) UV lamps fixed on AHU floor as per location shown in B) Aluminum reflectors. - Page 6 UV Coil Sterilization, SIL, Issue 2 Rev:0 5. Fit the Aluminum reflectors as per height location shown in the selection tool Figure d 6. Fit the UV lamp on reflector. Refer figure d. 7. Wipe the UV lamp with dry cloth. 8.
-
Page 7: Operation
USE ONLY SPC TYPE T5, 48 W LAMPS for model SIL24, ARBE24 USE ONLY SPC TYPE T5, 63 W LAMPS for model SIL36, ARBE36 US E ONLY SPC TYPE T5, 83 W LAMPS for model SIL48, ARBE 48 USE ONLY SPC TYPE T5, 108 W LAMPS for model SIL64, ARBE 64... -
Page 8: Wiring Diagram
UV Coil Sterilization, SIL, Issue 2 Rev:0 7. Wiring Diagram (WHITE) P Lamp–:12inch - 36inch, HO 800 mA BALLAST (BLACK) N 230 V AC (WHITE) P Lamp–:46inch - 64inch, HO 800 mA BALLAST (BLACK) N 230 V AC Red–1,2,3,4 Yellow–5... - Page 9 Oasis Coils & Coatings L.L.C P.O. Box: 282711, Dubai, United Arab Emirates Tel: +971 4 3409595 info@occglobal.com...
