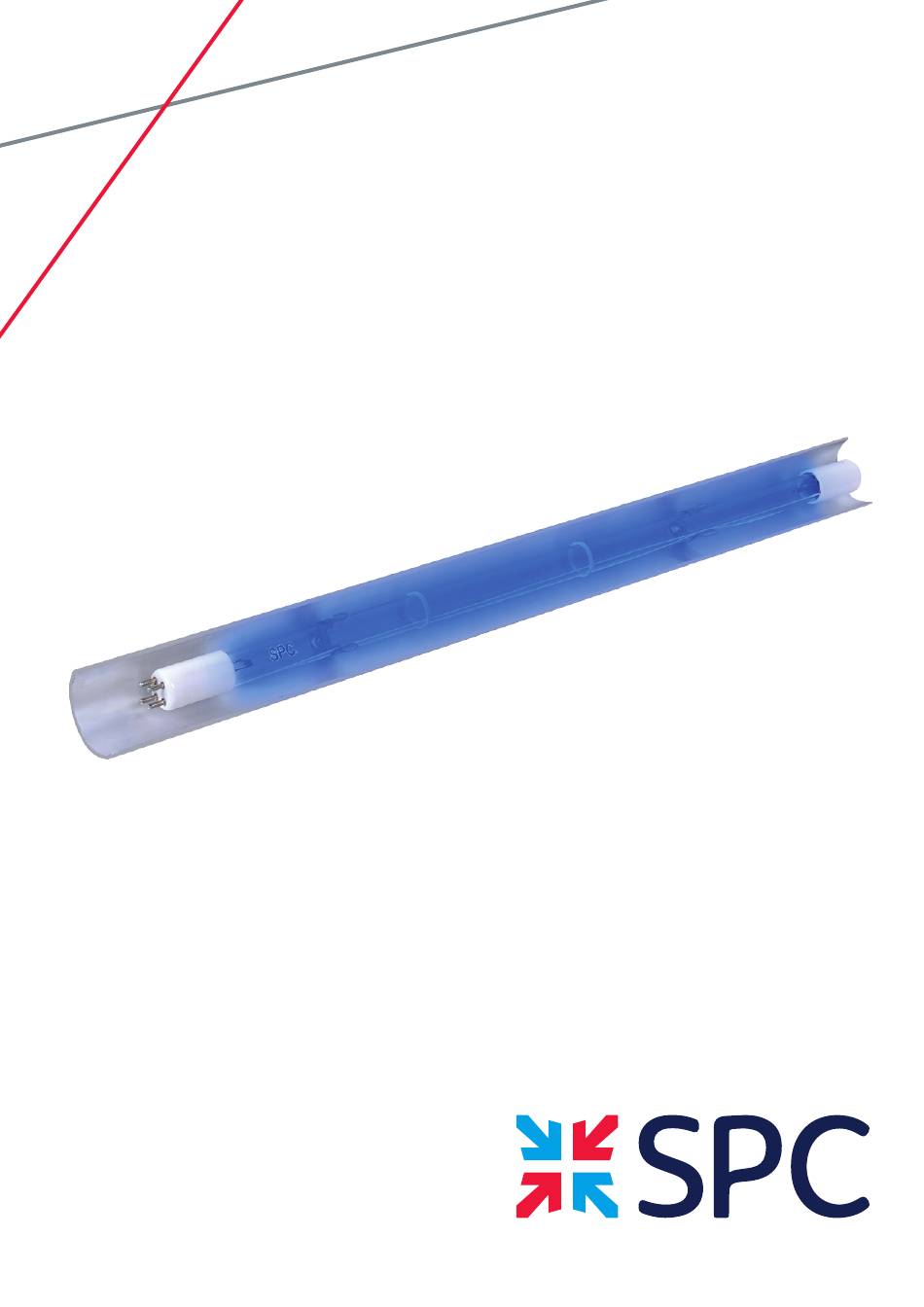

- Page 1 UV Coil Sterlisation Installation, operation & maintenance instructions ALP Series SPC Heat Pipes FZC...
-
Page 2: Table Of Contents
System. This manual describes the characteristics of the equipment at the current time; therefore it may not capture later technological improvements introduced by SPC as part of its constant endeavour to enhance the performance, ergonomics, safety and functionality of its products. -
Page 3: Safety Instructions
1. Safety instructions SPC believes in a policy of Safety first. We recommend all of our customers who are in direct or indirect use of our product to read the safety instructions first before installation, use of product and performing planned or unplanned maintenance or service. -
Page 4: Technical Data
2. Connecting cable, plug and protective boot. space and orientation of the equipment. Lamps 3. Control Ballast. should be positioned as indicated on the drawing provided by SPC. Note: Depending on the installation; the ballast may be supplied: Ideally the coil should be mounted 10-12 inches from the face of the coil. -
Page 5: Installation Guidelines
4. Installation guidelines Tools required will be: The ALP Series installation kit contains the following: A) UV lamps 1) Allen key set B) Aluminium reflectors. 2) Screw driver C) Clip for lamp holding 3) Electric tester D) Ballast for each lamp. -
Page 6: Operation
UV Coil Sterilisation, ALP, Issue 1 7. Wipe the UV lamp with dry cloth. 8. Fit the wire to the lamps. 9. Install the ballast box in a suitable position ideally outside the AHU or inside where the chance of direct exposure to moisture is minimised. -
Page 7: Wiring Diagram
7. Wiring Diagram (WHITE) P Lamp–:12inch - 36inch, HO 800 mA BALLAST (BLACK) N 230 V AC (WHITE) P Lamp–:46inch - 64inch, HO 800 mA BALLAST (BLACK) N 230 V AC Red–1,2,3,4 Yellow–5... - Page 8 SPC Heat Pipes FZC SPC Heat Pipes FZC P.O. BOX 50816 Dubai T: +971-4-3341178 E: spcoils@spcoils.ae www.spcoils.ae UV Coil Sterilisation, ALP, Issue 1...
