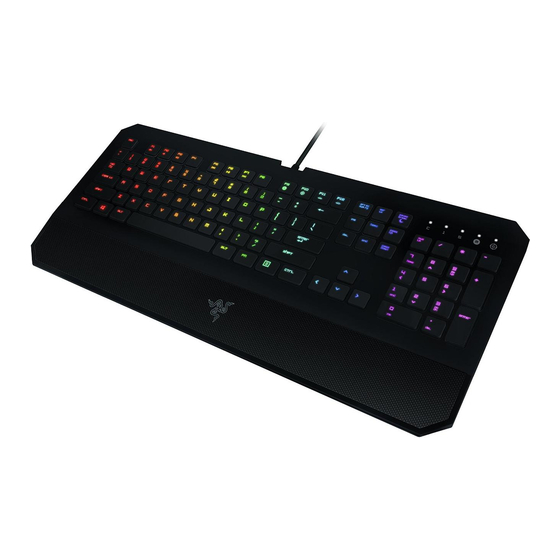

The Razer DeathStalker Chroma membrane gaming keyboard delivers merciless power
when it is designed with slim chiclet keycaps for shorter travel distance and rapid-fire
actuations. Your fingers will be flying across the low-profile keys at lightning speed and
in comfort, executing commands for your master plan faster than enemies can react.
Unlike traditional keyboards that can only register up to 3 simultaneous key presses,
the superior anti-ghosting technology built into the Razer DeathStalker Chroma allows
up to ten simultaneous key presses to obliterate the competition more effortlessly.
Every key actuated at the same time will respond accurately in-game with zero lag.
Now with Chroma customizable backlighting, the latest version of this gaming keyboard
unleashes the entire spectrum of 16.8 million colors and allows you to create elaborate
lighting effects that are uniquely yours.
0 | For gamers by gamers™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DeathStalker Chroma and is the answer not in the manual?

Questions and answers

Related Manuals for Razer DeathStalker Chroma

Summary of Contents for Razer DeathStalker Chroma

  • Page 1 Unlike traditional keyboards that can only register up to 3 simultaneous key presses, the superior anti-ghosting technology built into the Razer DeathStalker Chroma allows up to ten simultaneous key presses to obliterate the competition more effortlessly.

  • Page 2: Table Of Contents

    2. REGISTRATION / TECHNICAL SUPPORT ........... 3 3. TECHNICAL SPECIFICATIONS ..............4 4. DEVICE LAYOUT ..................5 5. INSTALLING YOUR RAZER DEATHSTALKER CHROMA ......6 6. USING YOUR RAZER DEATHSTALKER CHROMA ........7 7. CONFIGURING YOUR RAZER DEATHSTALKER CHROMA ......9 8.

  • Page 3: Package Contents / System Requirements

    1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS PACKAGE CONTENTS  Razer DeathStalker Chroma – Expert Membrane Gaming Keyboard  Important Product Information Guide SYSTEM REQUIREMENTS  Mac with a free USB port  Mac OS X (10.8-10.10)  Internet connection  200MB of free hard disk space...

  • Page 4: Registration / Technical Support

    To learn more about Razer Synapse and all its features, visit www.razerzone.com/synapse. If you are already a Razer ID user, register your product by clicking on your email address within the Razer Synapse application and select Warranty Status from the dropdown list.

  • Page 5: Technical Specifications

    3. TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS  Chiclet key caps  Chroma lighting with 16.8 million customizable color options  Razer Synapse enabled  1000Hz Ultrapolling  Fully programmable keys with on the fly macro recording  Dedicated Gaming Mode  Anti-ghosting capability for up to 10 simultaneous key presses ...

  • Page 6: Device Layout

    4. DEVICE LAYOUT A. Volume Control Keys B. Media Keys C. On-The-Fly Macro record Key D. Gaming Mode Key E. LED Control Keys F. Sleep Mode Key G. LED Indicators 5 | razer™...

  • Page 7: Installing Your Razer Deathstalker Chroma

    5. INSTALLING YOUR RAZER DEATHSTALKER CHROMA Note: You may skip Steps 2-4 if you already have Razer Synapse installed and an existing account. Step 1: Plug the Razer DeathStalker Chroma to your computer. Step 2: Download the Razer Synapse installer from www.razerzone.com/synapse.

  • Page 8: Using Your Razer Deathstalker Chroma

    6. USING YOUR RAZER DEATHSTALKER CHROMA The audio volume controls allow you to mute ( ), decrease ( ) and increase ) the audio output. The media keys allow you to play/pause ) a track or skip tracks backward ) and forward (...
  • Page 9 ON-THE-FLY MACRO RECORDING Follow these steps to create an OTF Macro Recording: 1. Press the Macro key to start recording. 2. The Macro Recording Indicator will light up to show that the device is ready to record. 3. Type in the keys you want to record. 4.

  • Page 10: Configuring Your Razer Deathstalker Chroma

    7. CONFIGURING YOUR RAZER DEATHSTALKER CHROMA Disclaimer: The features listed here require you to log in to Razer Synapse. These features are also subject to change based on the current software version and your Operating System. KEYBOARD TAB The Keyboard Tab is your default tab when you first install Razer Synapse. This tab allows you to customize your device’s profiles and key assignments.
  • Page 11 Profile A Profile is a convenient way of organizing all your custom settings and you can have an infinite number of profiles at your disposal. Any changes made within each tab are automatically saved to the current profile and stored into the cloud servers. You can create a new profile by clicking the button or delete the current profile by clicking the...
  • Page 12 Customize Tab The Customize Tab is where you can modify the basic functionalities of your device such as key assignments to suit your gaming needs. The changes made in this tab are automatically saved to your current profile. 11 | razer™...
  • Page 13 Key Assignment Menu Initially, each key is set to DEFAULT. However, you may change the function of this key by clicking the desired key to access the Key Assignment Menu. Listed below are the customization options and their description. Default This option enables you to return the key to its original function.
  • Page 14 Inter-device from the Key Assignment Menu, a sub-menu will appear. DEVICE TO LINK allows you to choose which currently connected Razer device can be linked while FUNCTION allows you to choose which functionality you want to use for the linked device.
  • Page 15 Switch Profile The Switch Profile enables you to change profiles on the fly and immediately load all your pre-configured settings. When you select Switch Profile from the Key Assignment Menu, a sub-menu will appear that will allow you to choose which profile to use. An on-screen display will automatically appear whenever you switch profiles.
  • Page 16 Note: You must configure the keyboard lighting based on zones. Individual keys cannot be separately customized. If you have other Chroma-enabled devices, you can synchronize all lighting scheme by clicking the button. Note that this synchronization function will only apply on devices that support the selected scheme. 15 | razer™...
  • Page 17 Basic lighting effects Name Description How to set up Spectrum The lighting on the keyboard Default effect. No further cycling will cycle between 16.8 customization is required million colors indefinitely Wave The keyboard lighting will Select either left-to-right or scroll in the direction right-to-left wave direction selected with a default spectrum of colors...
  • Page 18 The Gaming Mode Tab allows you to customize each profile to use either the function key or the multimedia key by turning Gaming Mode On or Off. An indicator will light up when Gaming Mode is turned ON. 17 | razer™...
  • Page 19 MACROS TAB The Macros Tab allows you to create a series of precise keystrokes and button presses. This tab also allows you to have numerous macros and extremely long macro commands at your disposal. The Macro section works similarly to Profile wherein you can rename a macro by typing on the field below MACRO NAME.
  • Page 20 DEFAULT DELAY uses a predefined time (expressed in seconds) as the delay. And NO DELAY omits all the pauses in-between keystrokes and button presses. Note: You may use up to three decimal places when inserting values on the seconds (sec) field. 19 | razer™...
  • Page 21 Once you have recorded a macro, you may edit the commands you have entered by selecting each command on the macro screen. Each keystroke or button press is arranged sequentially with the first command shown at the top of the screen. button allows you to edit a particular command and the button enables you to delete a command.
  • Page 22 The dropdown menu on this window allows you to choose a keystroke or a delay to be added in before or after the highlighted macro command. 21 | razer™...
  • Page 23 You may add in a new set of macro commands by clicking the button on the keystroke menu; or input time delays on the duration field using the delay menu. 22 | For gamers by gamers™...

  • Page 24: Safety And Maintenance

    8. SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer DeathStalker Chroma, we suggest that you adopt the following guidelines: 1. Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to www.razersupport.com...
  • Page 25 MAINTENANCE AND USE The Razer DeathStalker Chroma requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab with a bit of warm water to prevent dirt buildup.

  • Page 26: Legalese

    LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.
  • Page 27 (in so far as it is invalid or unenforceable) shall be given no effect and deemed to be excluded without invalidating any of the remaining terms. Razer reserves the right to amend any term at any time without notice. This device is manufactured under one or more of the following patents: U.S.
