Page 1: Title Page

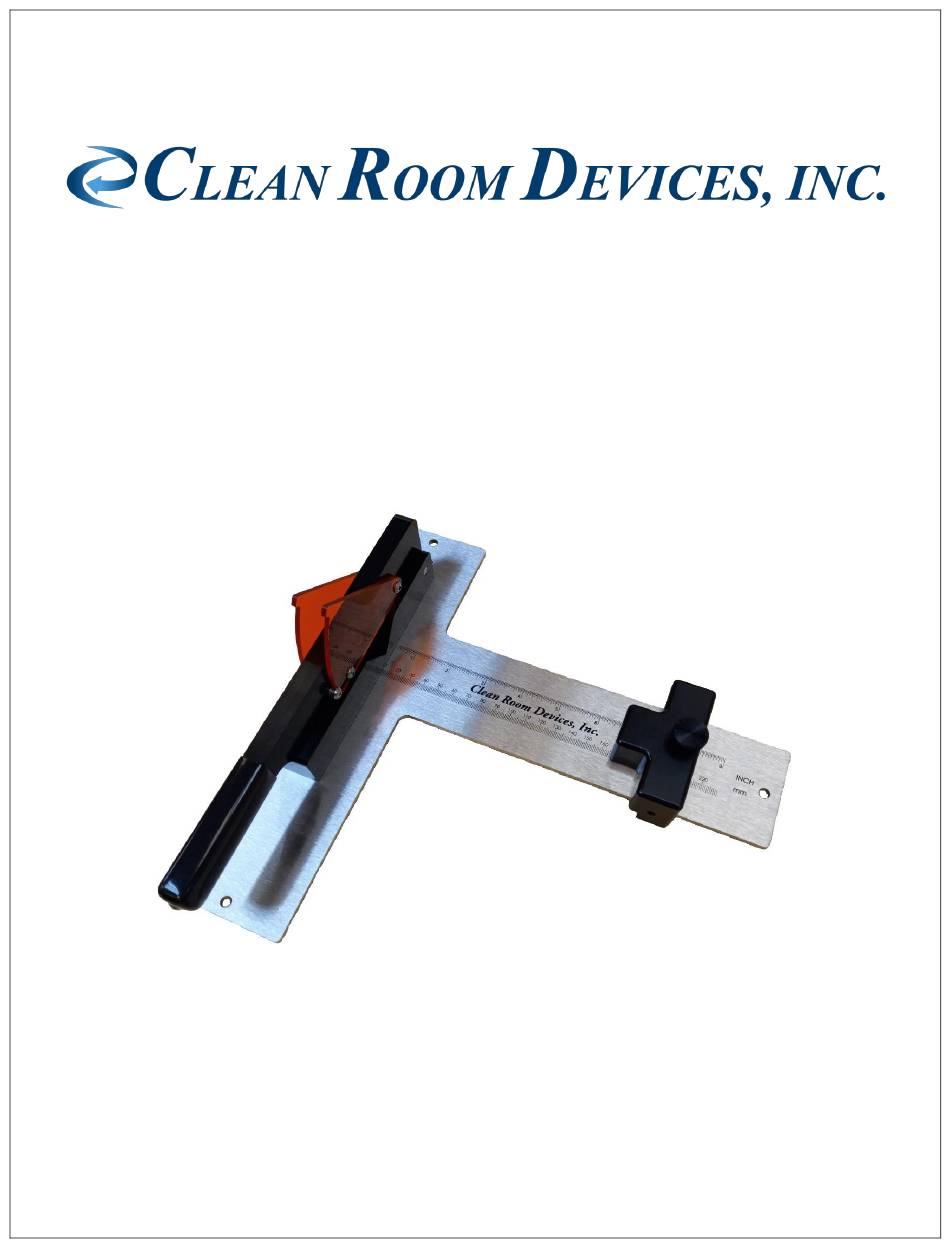

CRD130-12SS TUBING CUTTER OPERATIONS MANUAL VERSION 1.3 LAST EDITED 11.07.2023 cleanroomdevices.com... -
Page 2: Table Of Contents
Table of Contents Title Page……………………………………….……………..………………………………….1 Table of Contents…………………….…………………………………………………………...2 General Product & Safety Information…………………………………………….…..…3 Product Information Safety Information Installation………………………………………………….………………..….………..3 Operation…………………………………………………………………..……...…..….3 Troubleshooting………………………………………….……………….…………..….4 Maintenance…………………………………………………………………….…….….4 Blade Replacement Periodic Cleaning Product Specifications…………………………………………………………………...5 Durometer Scale…………………………………………………………………………5 Replacement Parts List…………………………………………………………………..6 Warranty…………………………………..…………………………….…………….…7 Warranty Warranty Period... -
Page 3: General Product & Safety Information
1.0 General Product & Safety Information Product Information • The CRD130-12SS Tubing Cutter is designed to cut flexible tubing (including heatshrink) up to 90 durometer, shore A, including any non-metallic braided materials. The cutter will cut a maximum diameter of 3/4”... -
Page 4: Troubleshooting
4.0 Troubleshooting Operating Error Action 1. Ensure the tubing being cut does not exceed the recommended durometer. Cutting blade makes bad cuts or leaves burrs. 2. Check the cutting blade for wear or damage and possible replacement. 1. Fully loosen the thumb screw to slide. Slide block does not move in either direction. -
Page 5: Product Specifications
6.0 Product Specifications Unit Weight 3.5 LBS / 1.6 KG 12” L x 11 5/8” W x 4-1/4” H Overall Dimensions 7.0 Durometer Scale... -
Page 6: Replacement Parts List
8.0 Parts List Item Part Number Description CD130-009 Cutter Base CD130-010 Cutter Handle CD130-12SS Stainless Steel Base P00353 Handle Cover CD135-001 Rotating Guard P00102 4mm SS Washer P00436 Wear Resistant Acetal Flat Washer P00441 Threaded Female Round Standoff CB100 Chevron Blade P00351 Plastic Bearing 1/4”... -
Page 7: Warranty
