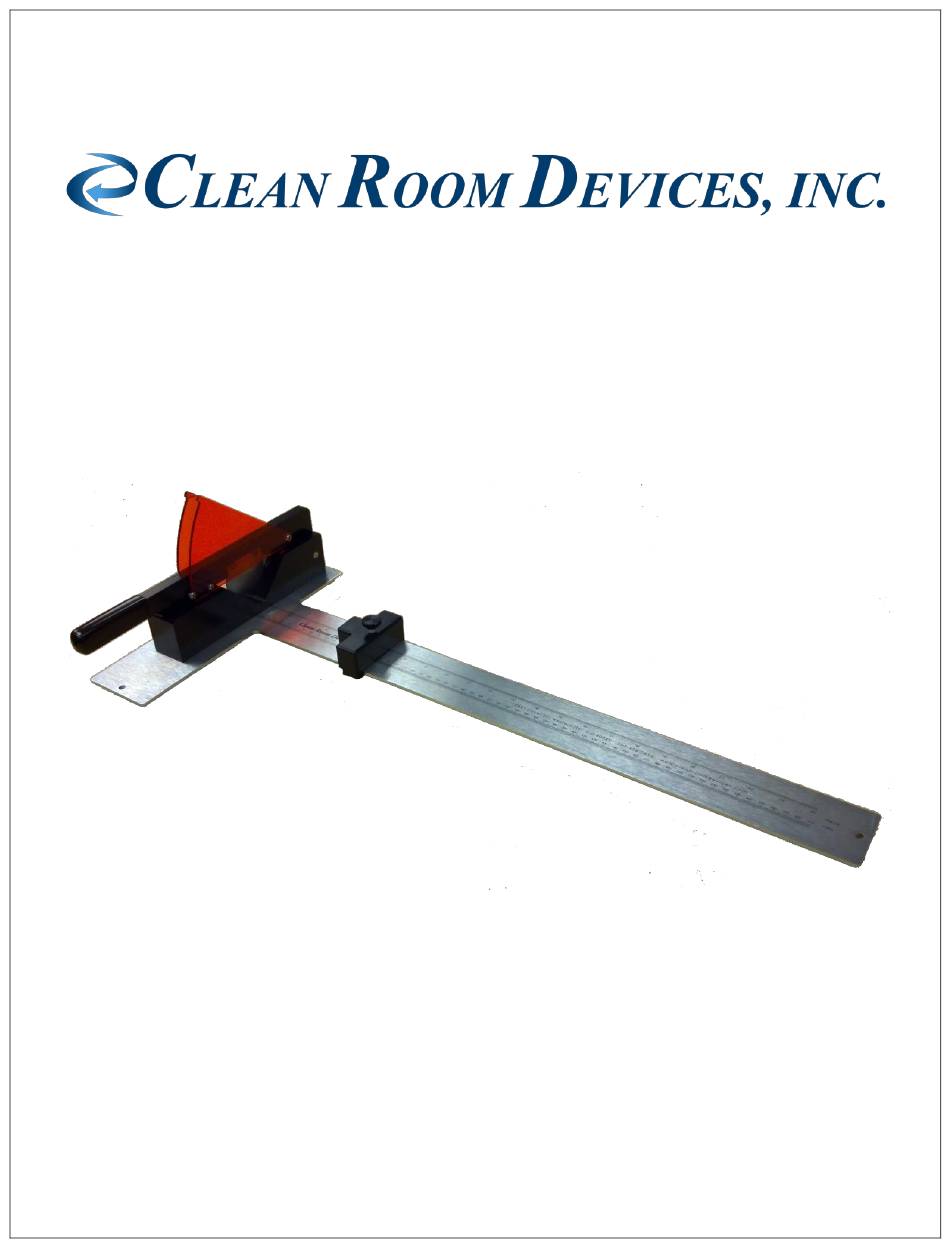

- Page 1 CRD160 TUBING CUTTER OPERATIONS MANUAL VERSION1.2 LAST EDITED 05.01.2018 cleanroomdevices.com...
- Page 2 Table of Contents Title Page……………………………………….……………..………………………………….1 Table of Contents…………………….…………………………………………………………..2 General Product & Safety Information…………………………………………….…..…3 Product Information Safety Information Installation………………………………………………….………………..….………..3 Operation…………………………………………………………………..……...…..….4 Troubleshooting………………………………………….……………….…………..…..4 Maintenance…………………………………………………………………….…….…..4 Blade Replacement Periodic Cleaning Product Specifications……………………………………………………………………5 Durometer Scale………………………………………………………………………….5 Parts List……………………………………………………………………..…………...6 Warranty…………………………………..…………………………….………..………7 Warranty Warranty Period...
- Page 3 1.0 General Product & Safety Information Product Information The CRD160 Tubing Cutter is designed to cut flexible tubing (including heatshrink) up to 90 durometer, shore A, including any non-metallic braided materials. The cutter will cut a maximum diameter of 1-1/2”...
- Page 4 3.0 Operation Position the slide block at the desired cut length using the scale and tighten the thumbscrew. Lift the cutter handle with your left hand, with your right hand pull the tubing through the cutter cradle to the slide block. Pull down the cutter handle with your left hand. ...
- Page 5 Install the new knife blade using a magnetic tipped screwdriver and reusing the same screws. Ensure the blade is centered and positioned on the mounting block properly. The knife blade screws should be checked periodically for tightness. Periodic Cleaning ...
- Page 6 Parts List Item Part Number Description CD160-002 Cutter Base CD160-003 Cutter Handle CD130-006 Stainless Steel Base P00353 Handle Cover CD160-005 Rotating Guard P00102 4mm SS Washer P00436 Wear Resistant Acetal Flat Washer P00441 Threaded Female Round Standoff CB200 Large Chevron Blade P00489 Plastic Bearing 5/16”...
- Page 7 For additional information contact: www.cleanroomdevices.com Clean Room Devices, Inc. 10855 Dover Street, Suite 100 Westminster, CO 80021...
