TruAudio ULTRASCAPE SAT12 User Manual

Box Contents
ULTRA12-SAT

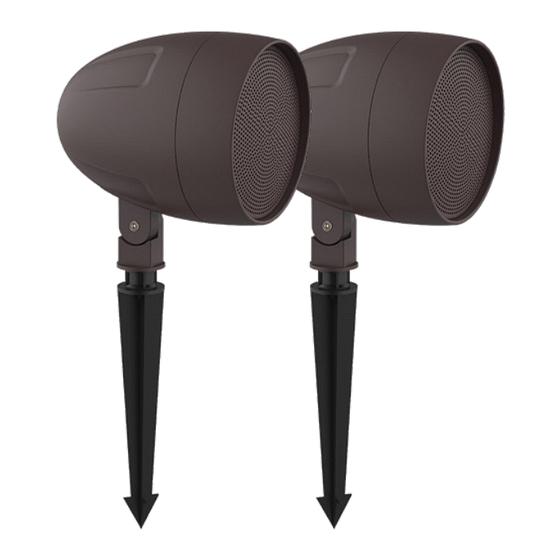

(2) Satellite speakers
(2) Satellite speaker ground stakes
(4) Silicone filled wire nuts
NOTE: Use speakers only from the UltraScape12 family. Do not use any other speakers. By doing so, could
damage your amplifier.

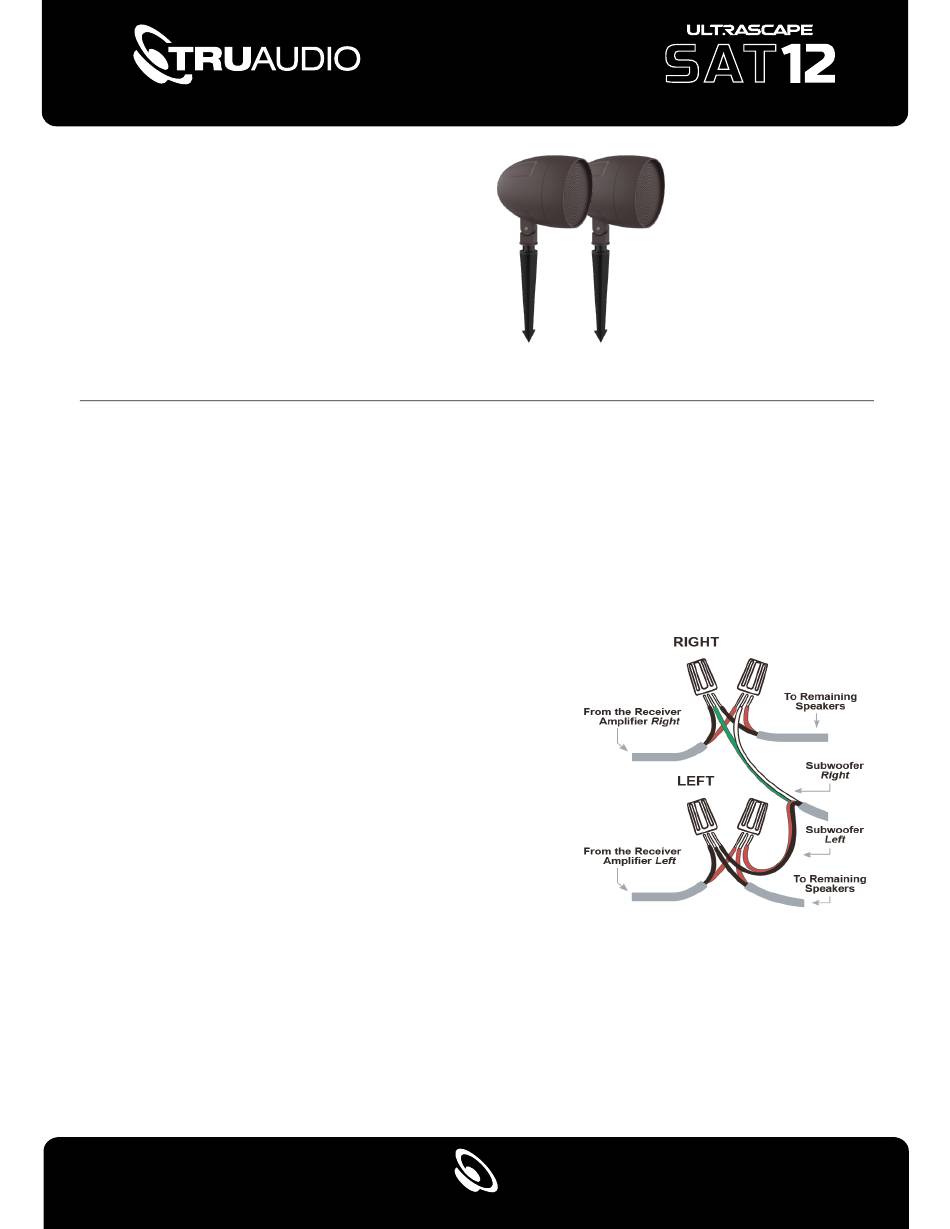

Wiring Diagram
The satellite speakers and subwoofer should be connected in two parallel wire runs and buried in a single
trench. The UltraScape12 is designed for speakers to be evenly divided between two wire runs with the
subwoofer connected to both right and left. Below is a recommended connection.
Use only the waterproof wire nuts that came with your
speakers. This will assure that no water will get in the
connection.
The subwoofer has a dual voice coil with two sets of
connections: One for the right channel and one for the left.
The right uses WHITE for positive (+) and GREEN for
negative (-). The left uses RED for positive (+) and BLACK
for negative (-).
The satellite speakers use RED for positive (+) and
BLACK for negative (-).
Bundle all three of the right channel positive (+) wires from
the first speaker, and wire the remaining speakers together
as noted above. Then, do the same for the left channel,
negative (-) wires. Run the wires to the next speaker and
connect them the same way.
