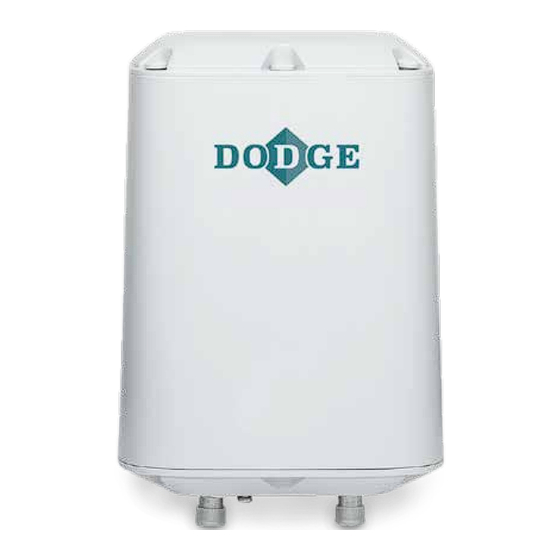

X2000 Gateway – Plug-and-Play
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dodge X2000 and is the answer not in the manual?

Questions and answers

Related Manuals for RBC Dodge X2000

Summary of Contents for RBC Dodge X2000

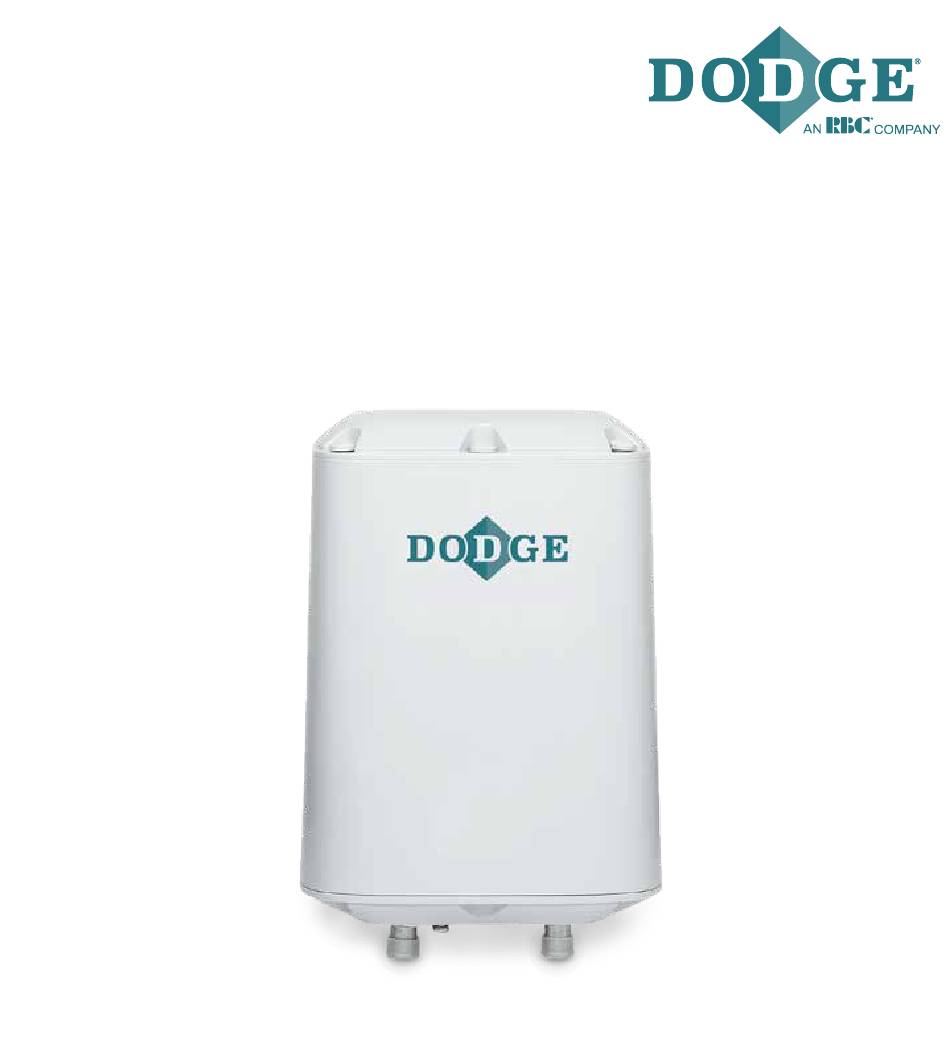

  • Page 1 X2000 Gateway – Plug-and-Play Instruction Manual...

  • Page 2: Table Of Contents

    These instructions must be read thoroughly before installation or operation. This instruction manual was accurate at the time of printing. TABLE OF CONTENTS 1 GENERAL ������������������������������������������������������2 2 INSTALLATION ����������������������������������������������4 Prerequisites for installation ........4 Recommended location ..........6 Network and power connection summary ....8 2.4 Gateway configuration confirmation ......

  • Page 3: General

    1 GENERAL The X2000 Gateway – Plug-and-Play is used to upload Dodge sensor data automatically to the OPTIFY platform. ® The gateway requires no configuration to communicate with OPTIFY as it supports connection to OPTIFY through a 4G mobile network with a preinstalled cellular USB dongle.
  • Page 4 The package includes: CASSIA X2000 Bluetooth Router X2000 Plug and Play Gateway QUICK START GUIDE INSTALLATION MANUAL 1.X2000 Router (1) 2.Pole Mounting Straps (2) 3.Cable Glands (2) 4.Mounting Bracket (1) 5.Extra Top Screw Covers (2) 6.SIM Card (1) 7.Anchors with Screws (2*4) 8.PoE Injector (1) 9.Power Cord (1) 10.Ethernet Cable (1)

  • Page 5: Installation

    2 INSTALLATION 2�1 Prerequisites for installation Internet connection The X2000 Gateway – Plug-and-Play connects to the internet via a preinstalled cellular USB dongle. Please ensure the gateway is installed in a location with adequate signal strength to reliably connect to a cellular network.
  • Page 6 Power supply • The gateway can be powered either via a Power over Ethernet (PoE) network or using a 12 V 2 A DC adapter • For PoE, use the included PoE injector and Ethernet cable to power the gateway •...

  • Page 7: Recommended Location

    Mounting • A flat-head screwdriver can be used for pole mounting • A Phillips-head screwdriver and a drill (optional if needed) can be used for wall mounting • Mounting the gateway is not mandatory but is recommended so the unit is secured in its intended location 2�2 Recommended location Height •...
  • Page 8 Figure 2 - Grounding cable location...

  • Page 9: Network And Power Connection Summary

    2�3 Network and power connection summary The gateway includes a USB mobile dongle with a SIM card for connection to cellular networks. Power the gateway using the provided PoE injector and Ethernet cable as shown in Figure 3. Alternatively, a 12 V 2 A adapter can be used to power the gateway as shown in Figure 4.

  • Page 10: Gateway Configuration Confirmation

    2.4 Gateway configuration confirmation When the gateway is powered on, the power LED at the bottom of the gateway will turn green. The bootup takes about 30—60 seconds. After bootup, the gateway will turn on its Wi-Fi hotspot. Connect to the Wi-Fi hotspot to change configuration settings (e.g., computer, mobile phone, or tablet).
  • Page 11 Figure 5 - Login page Once logged in, the status page (Figure 6) is shown to display the current operating mode and connection status of the gateway. The AC Online Time shows how long the gateway has been connected to the AC server.
  • Page 12 Figure 6 - Status page with access controller connection The Basic page, as shown in Figure 8, is where the configuration is managed. The following values on the Basic page are common for all X2000 Plug-and-Play gateways, regardless of mobile network: • Gateway name: Not required but recommended...
  • Page 13 Do not make any changes to the following values: • Gateway mode: AC Managed Gateway • Tx power: 19 • External antenna: None • Statistics report interval: 5 Minutes • AC server address: gw.dodgeoptify.com • AC-Gateway protocol priority: MQTT • Connection priority: Cellular •...
  • Page 14 Figure 7 - Changing the Wi-Fi hotspot password NOTE: If you forget your login credentials or make a mistake while configuring the Wi-Fi network’s SSID or password, please contact Dodge support using the information at the end of this document. NOTE: Do not make any changes the Cellular Modem section shown in Figure 8.
  • Page 15 Figure 8 - Basic page...

  • Page 16: Troubleshooting

    3 TROUBLESHOOTING If the AC Online Time is not shown within a few minutes: • Check the configuration and internet connection • Be sure that the gateway mode is set to “AC Managed Gateway” on the basic page • Reboot the gateway by powering it off, then on Connection to the internet can be verified with debug tools on the Other page: • Under debug tools, select “ping”...
  • Page 17 To enable scanning, the router’s mode on the basic page needs to be changed from “AC Managed Gateway” to “Standalone Gateway”. Once changed, the gateway will automatically reboot and will be operational again in 30—60 seconds. In addition, you must type an asterisk (*) in the “Allow Origin” field under “Gateway Web Security” on the Other page. Click apply to save this change.
  • Page 18 Open the following web page on a Wi-Fi enabled computer using Google Chrome: http://www.bluetooth.tech/debugger/ Figure 10 - Gateway Bluetooth debug tool Once the debug tool is loaded, connect your computer to the Wi-Fi network generated by the gateway. Type in the gateway’s MAC address into the Router MAC field and the IP address (192.168.40.1) into the Router IP field. Press “start scan”.
  • Page 19 If the debugger is not displaying any Bluetooth devices after starting the scan, please refer to the debugger troubleshooting guide available here: bluetooth.tech/debugger2/dist/Debugger2-Troubleshooting.pdf RSSI values can be generally categorized into the following groups: • RSSI value between 0 and -70: good •...

  • Page 20: Security

    4 SECURITY 4�1 Enable HTTPS access The gateways allows users to configure an SSL certificate (https) for accessing the gateway through an encrypted channel. The SSL certificate and key will be delivered in the privacy enhanced mail (PEM) format, or a certificate signed by an internal public key infrastructure (PKI) can be used. An example of how to create and import a self-signed certificate is outlined below. Certificate generation A certificate can be created with the OpenSSL tool and the example shows creating the certificate with Ubuntu 22.01.2 WSL system using the built-in tool. The tool uses command line interface (CLI) with appropriate arguments. Use the following command to generate a certificate: •...
  • Page 21 The following arguments are specified: • Cryptographic algorithm: rsa • Key length: 4096 • Type of certificate: x509 • Type of certificate signature: sha256 • Validity period: 365 days You will also be prompted to provide additional data such as country name, location, and other information. The data will be included in your certificate but only the Common Name is required. The Common Name may be the IP address or DNS name if the DNS name is used to resolve and assign an appropriate name for the gateway.
  • Page 22 Figure 11 - Additional information for HTTPS security certificate...
  • Page 23 Figure 12 - Generated files for HTTPS security certificate The generated files can be uploaded on the Other page: • Under the Gateway Web Security section, turn on Enable HTTPS and two new buttons should appear • Upload the certificate and key files to the appropriate areas • Click “Apply” Figure 13 - Gateway web security section to enable HTTPS You will be reconnected to a secure connection (HTTPS).
  • Page 24 Figure 14 - Verifying the certificate To verify your self-signed certificate, click on “Not secure” in the browser address bar and confirm the certificate. NOTE: The process of approving a self-signed certificate may depend on the specific browser used. The data presented should match your certificate data. Advanced users can also verify the fingerprint as needed for their security requirements.
  • Page 25 Figure 15 - Certificate data After completing SSL (HTTPS) setup, you should use the address, https://<gateway address>, when connecting to the gateway as an address leading with “http” will not work.

  • Page 26: Password Update Requirements

    4�2 Enable administrator password update requirements If needed, you can require the administrator password for the management panel to be updated every 180 days. To enable this feature, go to the Other page: • In the Gateway Web Security section, toggle the button for “change password every 180 days”...

  • Page 27: Optify

    5 OPTIFY After a gateway is configured and online, it will need to be commissioned in the OPTIFY platform to read data from sensors. Once a gateway is commissioned, sensors must be assigned to it within OPTIFY as a gateway will only read data from assigned sensors. Commissioning a gateway in OPTIFY can be done using the OPTIFY web portal or mobile app.

  • Page 28: Support

    6 SUPPORT For additional support, please contact the Dodge IIoT Technologies team: • Email: engineering@support.dodgeindustrial.com • Phone: +1 864 284 5700 ext. 6 • Availability: Monday—Friday, 8 am—5 pm EST Scan for the latest digital instructions:...
  • Page 29 Dodge Industrial, Inc. *7006-0524* 1061 Holland Road Simpsonville, SC 29681 +1 864 297 4800 © DODGE INDUSTRIAL, INC. All Rights Reserved. Printed in USA. AN RBC BEARINGS COMPANY MN7006 REV- 05/24...
