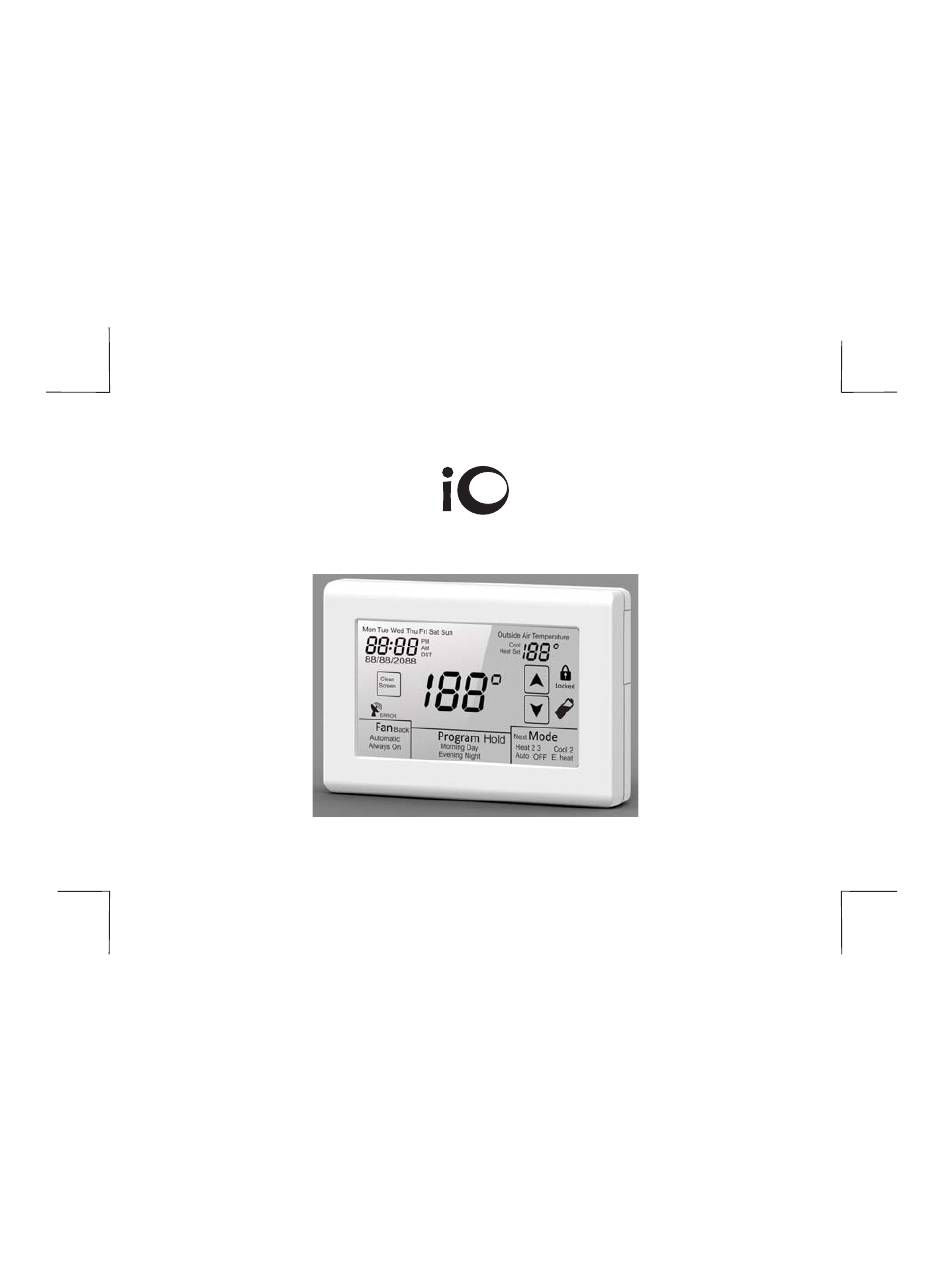

- Page 1 HVAC Controls UT32 Titan Touchscreen Thermostat User Manual...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ............................3 Using the Touchscreen Display ......................4 Typical Display ............................5 Setting the Day, Time and Calendar ....................6 Basic Functions ..........................7-11 Mode Configurations ......................7 Conventional Heating and Cooling Equipment (Gas/Electric) ..........7 Heat Pump and Dual Fuel Equipment ..................7 Mode Selection ........................ - Page 4 TABLE OF CONTENTS Overrides ............................19-20 Temporary Temperature Override ................19-20 Permanent Hold ......................... 20 Other Options and Features ......................21-23 Adaptive Recovery Option ....................21 Clean Screen ........................21 Compressor Time Delay .......................22 Low Battery Indication ......................22 Outdoor Temperature Display ....................23 Changing the Batteries ......................
-
Page 5: Introduction
User Manual, you can take advantage of the many features offered in this premium product. Although great care has been taken in the preparation of this manual, iO HVAC Controls takes no responsibility for errors or omissions contained herein. It is the responsibility of the installer to ensure that this thermostat and the equipment connected to it operate in a safe and efficient manner. -
Page 6: Using The Touchscreen Display
USING THE UT32 TOUCHSCREEN DISPLAY To simplify use, the UT32 only displays information relevant to the current mode of operation. When adjustments are required, the thermostat will display additional information or functional icons. Based on the thermostat configuration, some information and icons may not be displayed. The illustration below shows all the LCD segments and icons along with abbreviated definitions. -
Page 7: Typical Display
TYPICAL DISPLAY During normal operation, the UT32 typically displays the following: 1. Day of the week 5. Fan selection 2. Time of day 6. Program period (programmable mode only) 3. Calendar (M/D/Y) 7. Mode of operation 4. Space temperature 8. Set temperature 9. -
Page 8: Setting The Day, Time And Calendar
SETTING THE DAY, TIME AND CALENDAR Touch the display with your finger until the back light comes on. Touch and hold the clock. The thermostat will beep and the hour will flash. Touch the UP or DOWN arrow to change the hour making sure that AM or PM are correct. -
Page 9: Basic Functions
BASIC FUNCTIONS MODE CONFIGURATIONS Your contractor can configure the thermostat with different mode selections based on user preference and/or equipment type. Mode configurations can be as follows: CONVENTIONAL HEATING AND COOLING EQUIPMENT (GAS/ELECTRIC) Manual Changeover (Heat/Cool/Off) Auto Changeover (Heat/Cool/Auto/Off) Heat Only (Heat/Off) Cool Only (Cool/Off) -
Page 10: Mode Selection
BASIC FUNCTIONS MODE SELECTION To select a mode of operation, touch the display until the back light comes on. Touch the Mode repeatedly on the screen to select the mode of operation. Based on the equipment and thermostat configuration, mode selection can be as follows: Off - Thermostat will not call for heating or cooling. -
Page 11: Fan Selection
BASIC FUNCTIONS FAN SELECTION Touch the display until the back light comes on. Touch the box on the screen to select Automatic Always On fan mode. In Automatic mode, the fan operates with a heating or cooling call. If set to Always On, the fan will run continuously. If the thermostat is turned Off while the fan is set to Always On, the fan will continue to run until it is placed in the Automatic mode. -
Page 12: Changing The Heating Or Cooling Temperature Setting (Manual Heat/Cool Mode)
BASIC FUNCTIONS CHANGING THE HEATING OR COOLING TEMPERATURE SETTING Manual Heat/Cool Mode In manual changeover mode, only the heating or cooling temperature setting will be displayed. To change the setting, touch the display until the back light comes on and then touch the temperature displayed on the screen. -
Page 13: Changing The Heating Or Cooling Temperature Setting (Auto Mode)
BASIC FUNCTIONS CHANGING THE HEATING OR COOLING TEMPERATURE SETTING Auto Mode In auto changeover mode, the heating and cooling temperature setting alternate on the screen. To change the settings, touch the display until the back light comes on and then touch the temperature displayed on the screen. -
Page 14: Programming
PROGRAMMING 7-DAY SCHEDULE (4 OR 2 DAILY EVENTS) Your contractor can configure the UT32 with two programming options for 7-day scheduling. You can elect to have 4 daily events ( Morning, Day, Evening, Night ) or 2 daily event ( Day, Night ) for each day of the week. -
Page 15: Daily Events
PROGRAMMING 7-DAY SCHEDULE (4 OR 2 DAILY EVENTS) Your contractor can configure the UT32 with two programming options for 7-day scheduling. You can elect to have 4 daily events ( Morning, Day, Evening, Night ) or 2 daily event ( Day, Night ) for each day of the week. - Page 16 PROGRAMMING Touch Program again and the Morning start time will appear. The hour and AM or PM will flash. Touch the UP or DOWN arrow to change the Morning start time hour. The factory default is 6:00 AM. Touch Program again and the minutes will flash.
- Page 17 PROGRAMMING Touch Program again and the Morning Cool Set temperature will be displayed and flash. Tough the UP or DOWN arrow to change the cooling temperature. The factory default if 75° F for the morning schedule. Touch Program again and the Morning Heat Set temperature will be displayed and flash.
- Page 18 PROGRAMMING Touch Program again and the Day start time will appear. The hour will flash along with AM or PM. Follow the same steps as in the Morning sequence. The factory defaults for the Day event are 8:00 AM, Cool Set 78° F, Heat Set 62° F. After setting the Day Heat Set temperature, touch...
-
Page 19: Daily Events
PROGRAMMING If you elect to have a different schedule for each day of the week, simply touch Program when appears in order to advance to the next day. Night 2 DAILY EVENTS Seven day scheduling for 2 daily events uses the same programming steps as 4 daily events other than you only have to program Night . -
Page 20: Programmable Fan
PROGRAMMING PROGRAMMABLE FAN If your contractor has configured the UT32 with the Programmable Fan Option, you will be able to select Automatic Always On fan with each programmed event. When programming the thermostat, the Programmable Fan Option will appear at the end of each programming event. When the word Automatic begins to flash, touch the UP arrow to change to... -
Page 21: Overrides
OVERRIDES When the UT32 is configured for programmable operation, there are two types of temperature overrides available. TEMPORARY TEMPERATURE OVERRIDE Temporary Temperature Override is designed to allow you to adjust the heating or cooling temperature without affecting the programmed temperatures. For example, if you want to change the heating temperature, touch the displayed until the back light comes on and then touch the temperature setting. -
Page 22: Permanent Hold
OVERRIDES The new heating temperature will remain active until the next scheduled event takes place at which time it will be deleted and only the programmed temperatures will be used. To manually cancel Temporary Override, touch the display until the back light comes on and then touch Program until Hold... -
Page 23: Other Options And Features
OTHER OPTIONS AND FEATURES ADAPTIVE RECOVERY OPTION If your thermostat has been configured for programmable operation, your contractor can add the Adaptive Recovery Option. Adaptive Recovery compares the space temperature deviation from the set temperature for the next scheduled event and brings the equipment on to reach the next temperature setting at the scheduled event start time. -
Page 24: Compressor Time Delay
OTHER OPTIONS AND FEATURES COMPRESSOR TIME DELAY Your thermostat has a built in 4 minute time delay to prevent the air conditioner or heat pump from short cycling. When the short cycle timer is active and the thermostat is calling, the word Mode will flash on the display until the time delay has expired. -
Page 25: Outdoor Temperature Display
OUTDOOR TEMPERATURE DISPLAY If an outdoor sensor has been installed on your thermostat, the outdoor temperature will be displayed from 1 degree Fahrenheit to 130 degrees Fahrenheit. If the outdoor temperature falls below 1 degree F, the thermostat will display and if the outdoor temperature rises above 130 degrees F, the thermostat will display CHANGING THE BATTERIES... -
Page 26: Timed Ventilation Option
TIMED VENTILATION OPTION Your thermostat may have been setup to provide Timed Ventilation. Timed Ventilation is designed to improve residential indoor air quality by introducing fresh, outside air through a 2-wire, power open / spring closed motorized intake damper controlled by the thermostat. The thermostat automatically controls the amount of fresh air required each hour based on ASHRAE 62.2 - 2013 Ventilation and Indoor Air Quality Standard. - Page 28 www.iohvaccontrols.com HVAC Controls For Technical Support Call Toll Free: 866-225-5032 iO-06-1245-040919...
