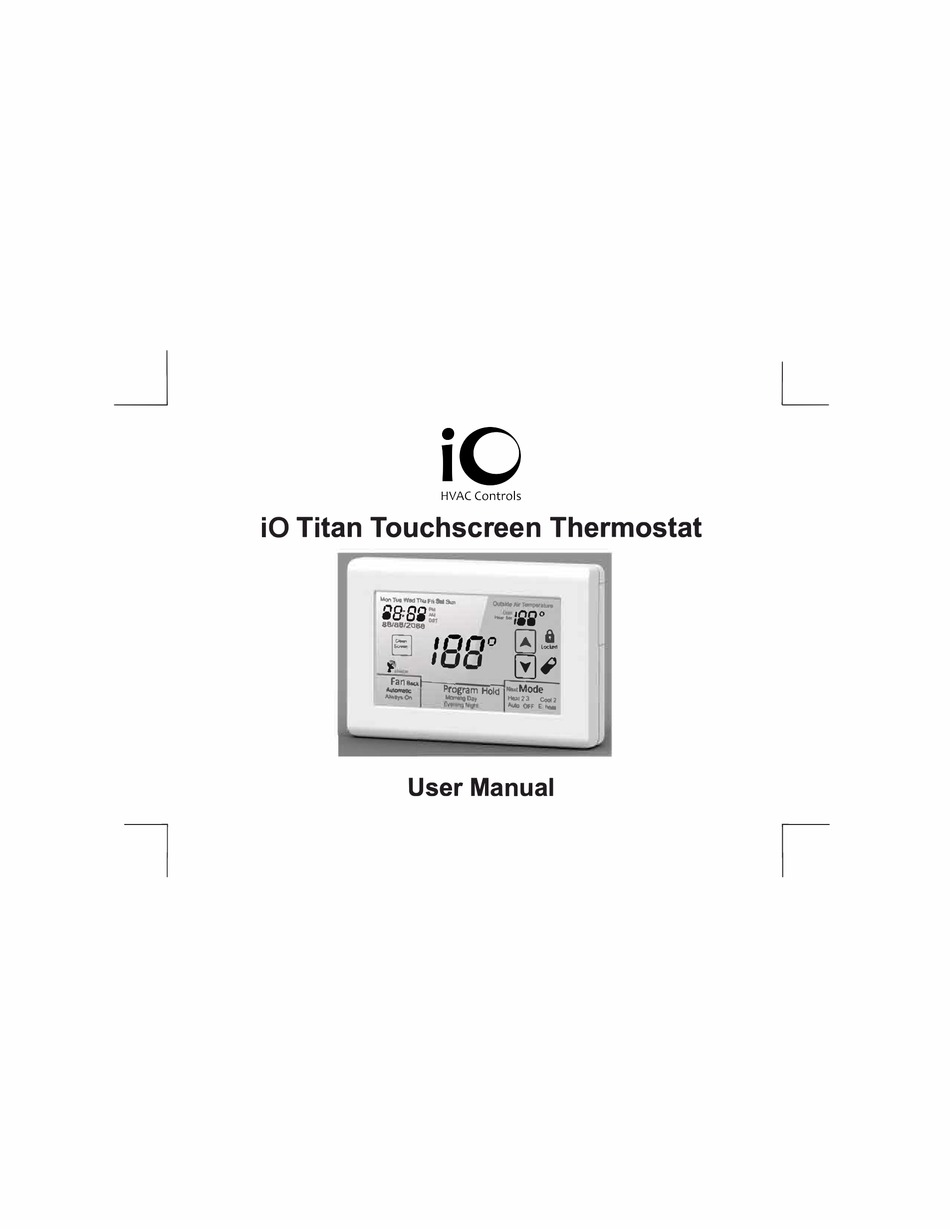

Page 1: User Manual
iO Titan Touchscreen Thermostat Mon Tw W!d Thu Fli Sil Sun ..,gg o 88 :88 Oumidt M T*11plnb,q � � �! u, ao 88/8 812 088 , o o Fan ..1--.;:-: ---..r � -,--,- -" Program Hold ""'Mode �... - Page 5 User Manual, you can take advantage of the many features offered in this premium product. Although great care has been taken in the preparation of this manual, iO HVAC Controls takes no responsibility for errors or omissions contained herein. It is the responsibility of the installer to ensure that this thermostat and the equipment connected to it operate in a safe and efficient manner.
-
Page 6: Using The Touchscreen Display
USING THE TOUCHSCREEN DISPLAY To simplify use, the UT32 only displays information relevant to the current mode of operation. When adjustments are required, the thermostat will display additional information or functional icons. Based on the thermostat configuration, some information and icons may not be displayed. T he illustration below shows all the LCD segments and icons along with abbreviated definitions. -
Page 7: Typical Display
TYPICAL DISPLAY During normal operation, the UT32 typically displays the following: 1. Day of the week 5. Fan selection 2. Time of day 6. Program period (programmable mode only) 3. Calendar (M/D/Y) 7. Mode of operation 4. Space temperature 8. Set temperature 9. - Page 14 PROGRAMMING 7-DAY SCHEDULE (4 OR 2 DAILY EVENTS) Your contractor can configure the UT32 with two programming options for 7-day scheduling. You can elect to have 4 daily events (Morning, Day, Evening, Night) or 2 daily event (Day, Night) for each day of the week.
-
Page 15: Daily Events
PROGRAMMING 7-DAY SCHEDULE (4 OR 2 DAILY EVENTS) Your contractor can configure the UT32 with two programming options for 7-day scheduling. You can elect to have 4 daily events (Morning, Day, Evening, Night) or 2 daily event (Day, Night) for each day of the week. - Page 18 PROGRAMMING Touch Program again and the Day start time will appear. The hour will flash along with AM or PM. Follow the same steps as in the Morning sequence. The factory defaults for the Day event are ° 8:00 AM, Cool Set 78 F, Heat Set 62 °...
- Page 19 PROGRAMMING If you elect to have a different schedule for each day of the week, simply touch Program when COP appears in order to advance to the next day. 2 DAILY EVENTS Seven day scheduling for 2 daily events uses the same programming steps as 4 daily events other than you only have to program Day and Night.
-
Page 20: Programmable Fan
PROGRAMMING PROGRAMMABLE FAN If your contractor has configured the UT32 with the Programmable Fan Option, you will be able to select Automatic or Always On fan with each programmed event. When programming the thermostat, the Programmable Fan Option will appear at the end of each programming event. When the word Automatic begins to flash, touch the UP arrow to change to Always On or simply touch Program to maintain Automatic fan operation for the program period. -
Page 21: Temporary Temperature Override
OVERRIDES When the UT32 is configured for programmable operation, there are two types of temperature overrides available. TEMPORARY TEMPERATURE OVERRIDE Temporary Temperature Override is designed to allow you to adjust the heating or cooling temperature without affecting the programmed temperatures. For example, if you want to change the heating temperature, touch the displayed until the back light comes on and then touch the temperature setting. - Page 28 www.iohvaccontrols.com 06-1245-010818...
