Related Manuals for BOSS Grill Alabama Elite
Summary of Contents for BOSS Grill Alabama Elite
- Page 1 OWNER’S MANUAL PREMIUM 6 BURNER BBQ WITH SIDE BURNER AND ICE BOX IQBBQ6BSS / IQBBQ6BBL / IQBBQ6BWH...
-
Page 2: Table Of Contents
Thank you for purchasing a BOSS GRILL BBQ Forged from iron, steel and solid, British values, our BBQ’s deliver a finger- licking feast. We design high-quality grills, so you can serve up a sizzling experience for your family and friends. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read this user manual before using this BBQ and keep it safe for future reference . Read the following instructions carefully Your BBQ can be used with gas cylinders ⚫ ⚫ and be sure your BBQ is properly installed, between 11 kg and 15 kg. -
Page 4: Exploded Diagram
EXPLODED DIAGRAM PARTS LIST Part Part description description Lockable Castor Flame Tamer Cabinet Bottom Panel Large Cooking Grid Cabinet Side Panel Small Cooking Grid Cabinet Rear Panel Warming Rack Cabinet Door Bracket Thermometer Cabinet Crossbeam Bottle Opener Left Support Beam M5x10 Bolt Right Support Beam M4x8 Bolt... -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS Insert 4 x Bolts (A) into the other Lay the Cabinet Bottom Panel (2) on Attach the four Castors (1) using 4 side of the Cabinet Bottom Panel a flat surface with its base facing up. Bolts (A) for each Castor. (2), leaving them protruding by abound 3mm. - Page 6 Attach the Left Support Beam (7) to Attach the Right Support Beam (8) Attach the Bottle Opener (24) to the the Left Side Panel using 2 x Bolts to the Right Side Panel using 2 x left Side Panel using 2 x Bolts (K), 2 (C).
- Page 7 Insert 1 x Bolt (I) into the side of the control panel, leaving it protruding Insert the Ice Box (14) in the Left A further 3 bolts (I) should be used by around 5mm, before slotting the Side Table. to secure the Left Side Table on its Right Side Table (15) into position.
-
Page 8: Gas Supply Information
GAS SUPPLY information This appliance is only suitable for use with low pressure Butane, Propane, or LPG mixtures, fitted with the appropriate low-pressure regulator via a flexible hose. The hose should be secured to the regulator and the appliance with hose clips. This BBQ is set to operate with a 28 mbar regulator when used with Butane gas, a 37 mbar regulator when used with Propane gas, and 30 or 50 mbar for LPG mixtures. -
Page 9: Connecting The Gas Bottle To The Appliance
CONNECTING THE GAS BOTTLE TO THE APPLIANCE • Before connecting the gas supply, ensure that there is no debris caught in the head of the gas cylinder, regulator, burner or burner parts. Spiders and insects can nest within and clog the burner/ venturi tube at the orifice. -
Page 10: Lighting Instructions
LIGHTING INSTRUCTIONS If any burner fails to ignite after a number of attempts, turn the control dial to the off position (clockwise) and also turn the cylinder valve off. Wait for five minutes before attempting to light the BBQ again. MAIN BURNERS 1. -
Page 11: Safely Using Your Bbq
SAFELY USING YOUR BBQ FLARE-UP CONTROL Flare-ups can occur during barbequing, and is caused by fat and juices falling onto a hot surface. Avoid excessive flare-ups to prevent food from being burnt. The flame tamers are designed to help limit the amount of flare ups, but these must be kept in good condition and free of grease to be effective. -
Page 12: Cleaning And Care
CLEANING AND CARE All cleaning and maintenance should be carried out when the BBQ is cool and the fuel supply is turned OFF with the gas cylinder disconnected. OUTSIDE SURFACE • Use mild detergent or baking soda and hot water solution. Non-abrasive scouring powder can be used on stubborn stains, then rinse with water. -
Page 13: Technical Information
Single shot piezo ignition unit which lights a transient pilot Ignition: Side Burner: Single shot piezo ignition unit MANUFACTURER SUPPORT 0330 390 3062 Office hours: 9AM - 5PM Monday to Friday Boss grill Unit J6, Lowfields Business Park Lowfields Way, Elland West Yorkshire, HX5 9DA...
Need help?
Do you have a question about the Alabama Elite and is the answer not in the manual?
Questions and answers
How do I use the pin to fix the gas pipe to the side burner?
Use Pin (G) to fix the Side Burner to the gas pipe from the Control Panel. Insert the pin to secure the connection between the Side Burner and the gas pipe.
This answer is automatically generated

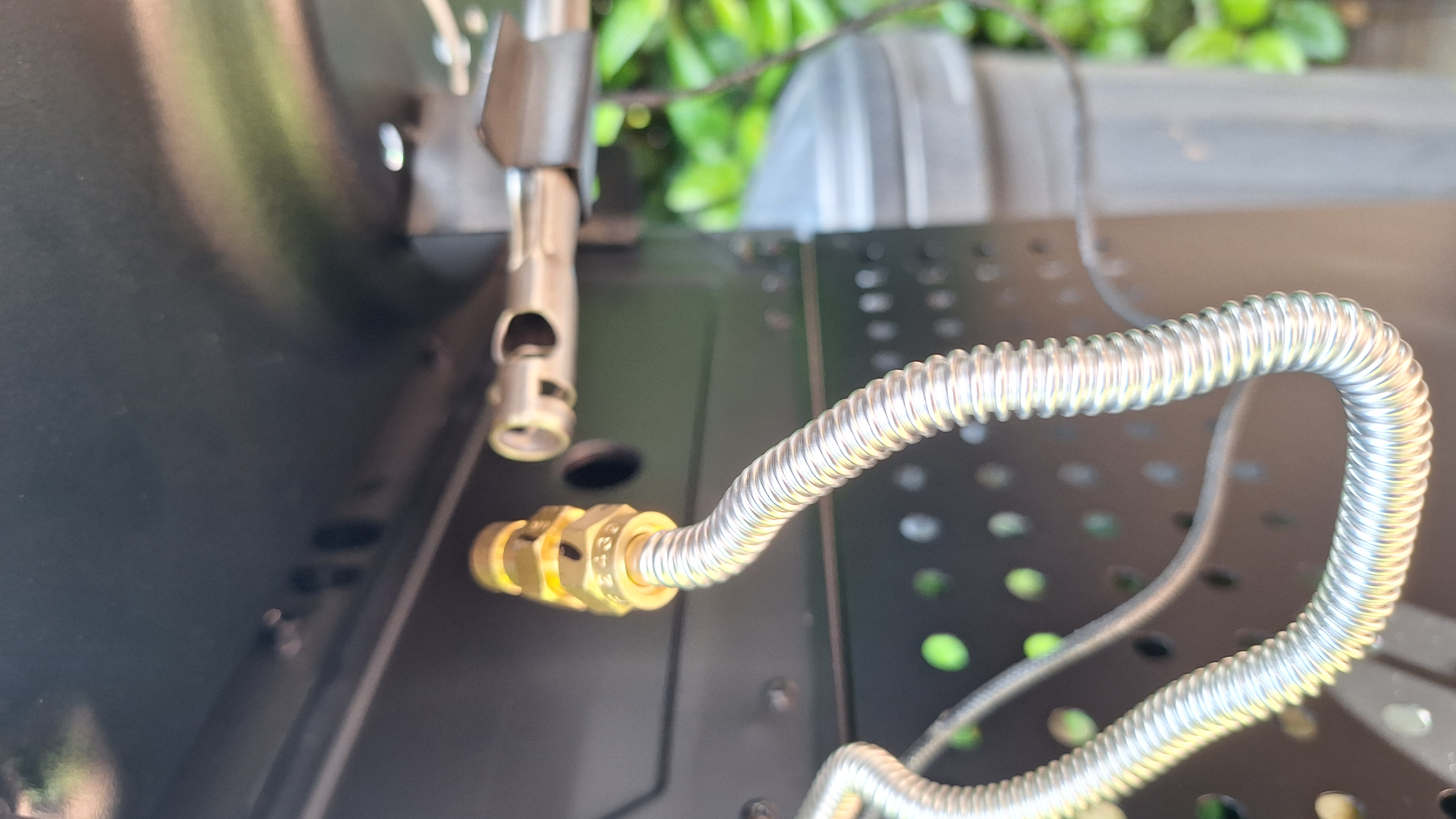

Please show me how to fit the flexible gas pipe to the side hob/burner? Thank you.
