Summary of Contents for Gentworks Biodrier BioLite BJ09W

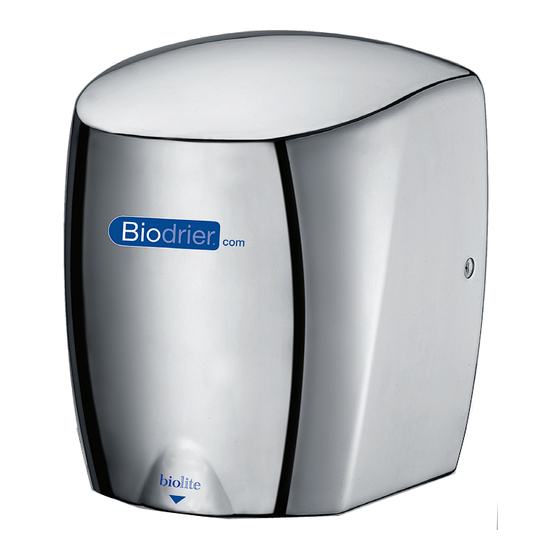

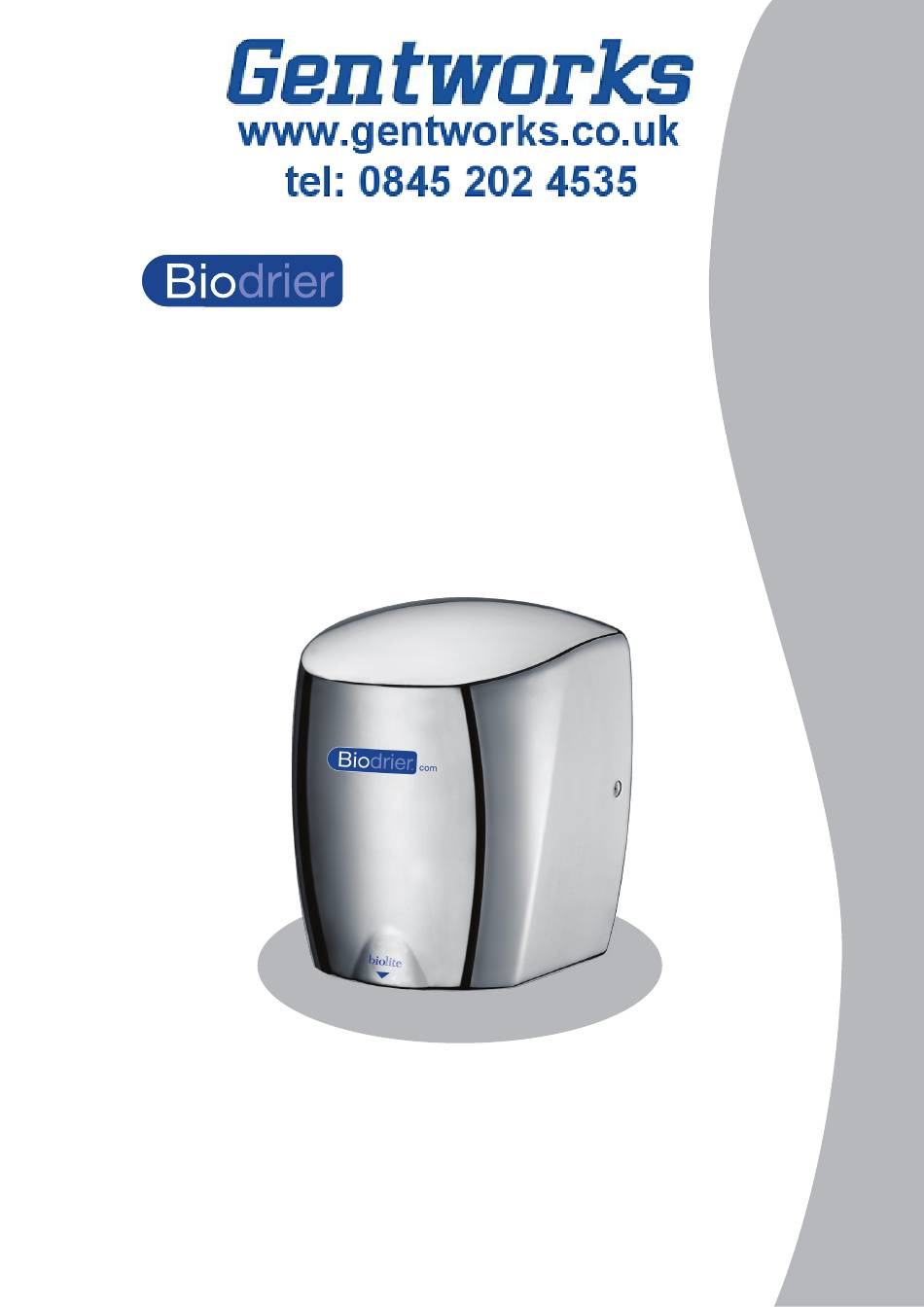

- Page 1 BioLite Hand dryer Automatic High Speed...
-
Page 2: Technical Specifications
Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) 287mm Technical Specifications Item Category Performance Data Operating Voltage 220 - 240Vac, 50Hz, 650 - 900 WATTS (heater off/on) Warm Air Speed Output 64 m/s Air Output Temperature 77°F (25°C) - Ambient Temperature 68°F (20°C) Motor Type 23,000 rpm, Brush Type, Dual Bearings... -
Page 3: Installation
Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) General Safety Information NOTE: Do not install dryer over wash basin. • WARNING Type Y attachment This product is intended for installation by a qualified service person. Use AWAG No.16 solid If the power supply cord is damaged, it must be conductor for wiring. -
Page 4: Operation
Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Recommended Mounting Heights From floor to bottom of dryer. Men’s Ladies Children, ages 11-17 Children, ages 3-10 Disabled 43” 41” 39” 33” 35” 109 cm 104 cm 99 cm 84 cm 89 cm Cleaning and Maintenance... - Page 5 Surface Mounted High Speed Hand Dryer Operating Instructions and Parts Manual (Automatic) Diagram and Parts List Die Cast Cover Cable Clamp Motor Housing Motor Rubber Rubber Washers Circuit Board Module Shock Absorber Circuit Board Cover Motor Heater Switch Blower Housing Heating Element Blower Mounting Plate Sensor Screen...
