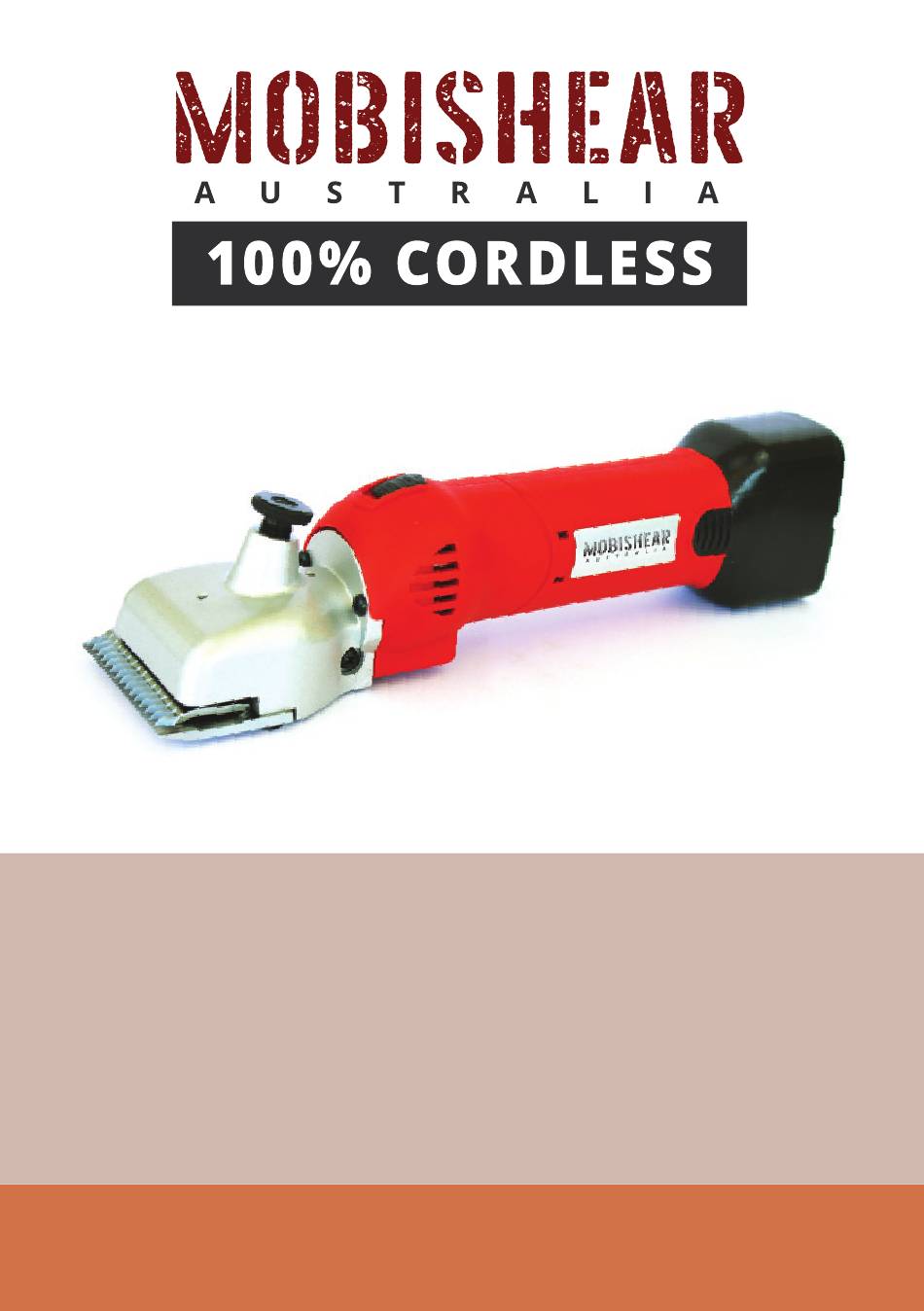

- Page 1 100% CORDLESS HORSE & CATTLE CLIPPER MSCHCH10.8-5 INSTRUCTION MANUAL www.mobishear.com.au...
- Page 2 Register your 100% Cordless Horse & Cattle Clippers online at www.mobishear.com.au for an extended warranty...
-
Page 3: Table Of Contents
Shut Down ..................13 Storage ....................13 Handpiece Maintenance Lubrication ..................14 Cleaning ....................14 Fitting the Clipping Blades ............... 14 Sharpening the Clipping Blades ............15 Troubleshooting .............16 Technical Data..............18 Clipping Handpiece ................18 Battery Cartridge ................18 Material Categories................19 www.mobishear.com.au... -
Page 4: Introduction
INTRODUCTION Mobishear is an Australian farming family owned business that was born from a need for innovation out in the paddock, but more importantly a desire to provide the best possible service. This 100% Cordless Clipping Handpiece has been designed and tested by us to endure Aussie farming conditions. -
Page 5: Precautions Before Use
5. We recommend that protective in the machine’s use and have had the potential dangers explained. goggles and gloves are worn during use. Personal protective equipment is 3. Children must not operate the to be provided by the operator. clipping handpiece. www.mobishear.com.au... -
Page 6: Case Contents
CASE CONTENTS 1. Clipping handpiece with 5. Lubricating oil clipping head 6. Cleaning brush 2. Battery cartridges x 2 7. Screwdriver 3. Clipping blades 8. Drive cog & circlip 9. Laminated springs 4. Battery charger www.mobishear.com.au... -
Page 7: Product Overview
25. Spindle Sleeve Bottom 12. Motor Gear Fixing Screw 39. Power Supply Cord 13. Handpiece Housing - 26. Pressure Plate 40. Charger Housing Screw Right 27. Laminated Spring 14. Sticker - Right (includes Centering Bush) 11 12 16 17 18 www.mobishear.com.au... -
Page 8: Battery Use & Maintenance
If this occurs, wait a while. Charging will begin after the battery cartridge cools. The battery cartridge will www.mobishear.com.au... -
Page 9: Fitting The Battery Cartridge
2 - 2.5 hours. The clipping handpiece will automatically stop when the battery output is low (<8V). Always be sure that the clipping handpiece is switched off and the battery cartridge is removed before adjusting or checking functions on the tool. www.mobishear.com.au... -
Page 10: Battery Maintenance
3. To reduce risk of injury, only use the the battery charger. charger to charge the batteries supplied with your Mobishear 100% 14. If operating time has become Cordless Clipping Handpiece. Other excessively shorter, stop operation... -
Page 11: Recycling The Battery
The battery must be placed in a well ventilated area during charging. RECYCLING THE BATTERY The only way to dispose of a Mobishear battery is to recycle it. Contact your local council to determine the appropriate way to recycle it. -
Page 12: Handpiece Safety & Operation
4. Regularly check all moving parts for damage. 5. Repairs must be carried out by a qualified repairer using genuine Mobishear parts. 6. Use this product only for the applications intended. 7. Do not use accessories or attachments other than those recommended by Mobishear. -
Page 13: Shut Down
(at least every 15 minutes) so that they do not run dry. 6. The Mobishear is set up to run at a speed that ensures the blades and handpiece do not overheat. When STORAGE clipping animals with a ‘tight’... -
Page 14: Handpiece Maintenance
Paraffin oil degrades by 20% after 21 days. Poor lubrication is the most frequent cause of unsatisfactory clipping results. Inadequately oil clipping blades will overheat, leading to reduced blade life, battery performance and overheating of the clipping handpiece. www.mobishear.com.au... -
Page 15: Sharpening The Clipping Blades
Replace blunt blades or anything with missing teeth. Resharpening can only be done with specialised equipment and by a trained technician. Contact Mobishear Australia for assistance. 4. Adjust the amount of ‘lead’ (amount of ground area on the lower blade... -
Page 16: Troubleshooting
(part 22) a ¼ turn each time The animal is too wet Wait until animal is dry before clipping Fibre jammed between Disassemble blades, clean, upper & lower blade oil, reassemble and correctly tension Incorrect lead distance Adjust lower blade until correct lead distance achieved www.mobishear.com.au... - Page 17 Switch handpiece off, clean, sharpen and oil blades. Reassemble with correct tension. Motor not running Faulty Switch Assembly Replace Switch Assembly (parts 7, 9 and 10) Motor will not turn off Motor wires fused together Contact Mobishear Australia for repair www.mobishear.com.au...
-
Page 18: Technical Data
TECHNICAL DATA CLIPPING HANDPIECE Model number MSCHCH10.8-5 Voltage Motor power Speed 2300rpm Dimensions (W/H/L) Approx. 80mm x 80mm x 315mm (Including battery cartridge) Weight 1250g (Include battery cartridge) BATTERY CARTRIDGE Battery cells 6 x 3.6V Li-ion battery cells Voltage Capacity... -
Page 19: Material Categories
The warranty is only valid for purchases made direct from Mobishear Australia or an authorised Mobishear Australia stockist. Damage from misuse or not following the provided care instructions is not covered. The customer will be liable for postage costs of the equipment back to Mobishear Australia for assessment. www.mobishear.com.au... - Page 20 Arnd Enneking Heidi Enneking M: 0421 062 697 E: arnd@mobishear.com.au M: 0409 289 532 E: heidi@mobishear.com.au Box 89, Mount Barker SA 5251 www.mobishear.com.au www.mobishear.com.au...
