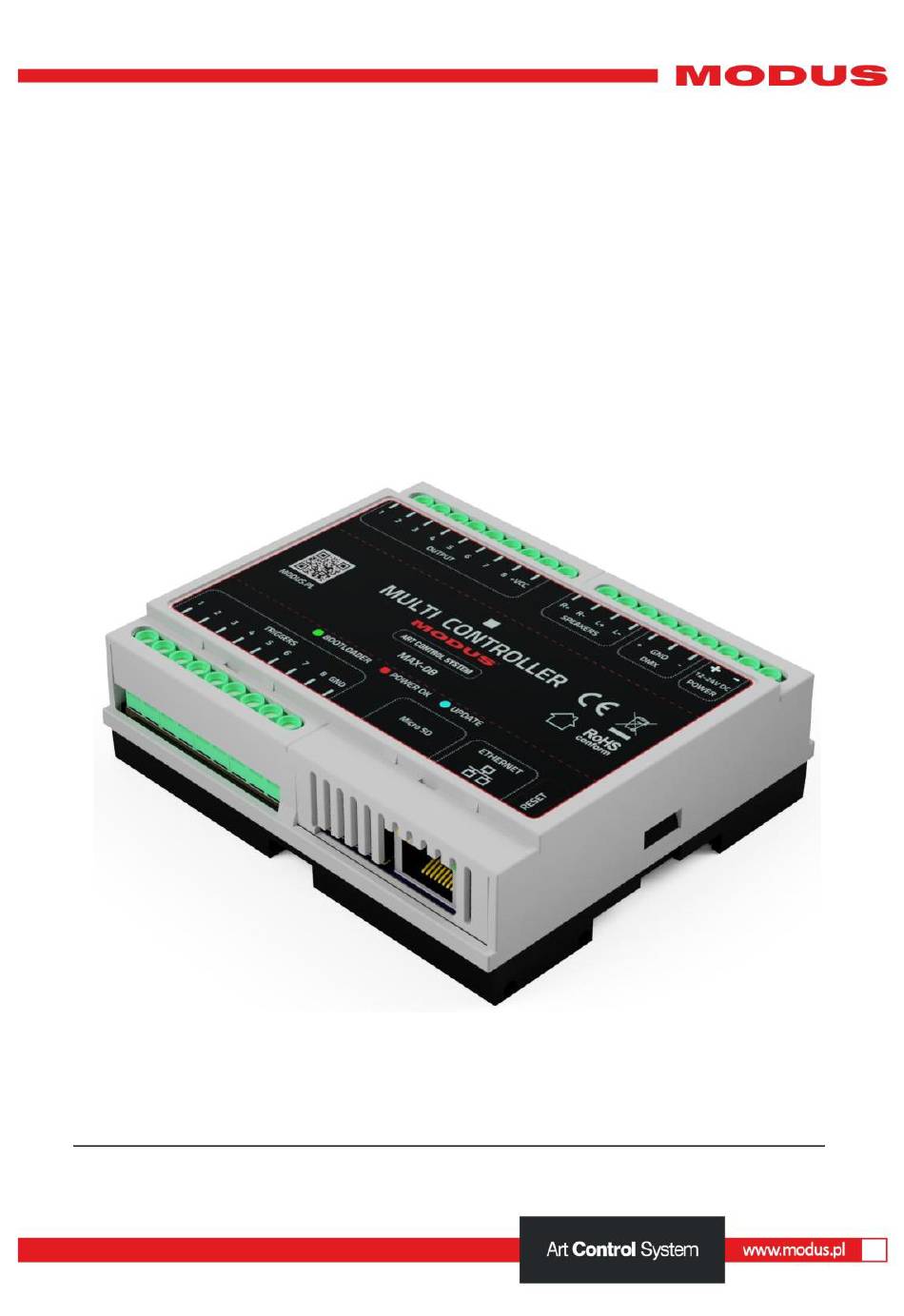

- Page 1 MAX-08 User Manual Version 01.01 MULTI CONTROLLER RECORDER DMX / ARTNET / UDP / AUDIO / LAN / SD Code: 0431 / FW.1.1 MAX-08 MULTI CONTROLLER...
- Page 2 If you have any comments or observations, please send them to us. We will be grateful for any suggestions that will help us produce even better devices that meet your needs. "Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd." MAX-08 MULTI CONTROLLER...
-
Page 3: Table Of Contents
Recording a Show ..............21 Uploading Audio Files ............22 Power Supply ..............23 Factory Reset............... 24 IP Address ................26 Maintenance and Repairs ............ 26 Enclosures and Dimensions ..........27 Technical Specifications ............28 Contact Information ............28 MAX-08 MULTI CONTROLLER... -
Page 4: General Description
1. General Description The MAX-08 MODUS is a multifunctional controller featuring 8 outputs, a 2x50W audio player, a DMX output, 8 trigger inputs, an Ethernet port, and an internal Artnet signal recorder. The main function of the controller is to program work scenarios so that all its outputs and audio files from the SD card are activated and played synchronously in time. - Page 5 MAX8 DevManager program, making parameter settings quick and useful, especially when the device is installed in hard-to- reach places. The MAX-08 is compatible with other Art Control System MODUS devices, allowing the creation of control systems for most interactive lighting, AV control, and game triggering projects.
-
Page 6: Basic Safety Conditions
2. Basic Safety Conditions The MODUS MAX-08 is a device powered by a safe voltage range of 12-24V DC, but the following rules must be strictly followed during its installation and use: 1. Installation should be carried out by a person with appropriate qualifications according to the description in the manual. -
Page 7: Description Of Outputs And Indicators
2. RJ45 Ethernet Connector: LAN network 3. Micro SD Card Slot 4. Control Inputs: Trigger 5. Power Connector (GND +12...24V DC) 6. DMX Output/Input 7. Power Amplifier Output Channels R L 8. OC or PWM Outputs 9. Status Indicator MAX-08 MULTI CONTROLLER... -
Page 8: Description Of Indicator Operation
4. Description of Indicator Operation The MODUS logo is backlit, and its color indicates: • Red: Normal module operation • Green: The device is in bootloader mode. This is the initial state after powering on or resetting. • Blue: The device is in firmware update mode... -
Page 9: Connection Diagram For Pwm Led Control
5. Connection Diagram for PWM LED Control Example of connecting outputs for LED lighting control. MAX-08 MULTI CONTROLLER... -
Page 10: Connection Diagram For Oc Motor Control
6. Connection Diagram for OC Motor Control Example of connecting outputs for motor control, e.g., moving elements in scenography, animatronics, etc. MAX-08 MULTI CONTROLLER... -
Page 11: Connection Diagram For Oc Relay Control
7. Connection Diagram for OC Relay Control Example of connecting outputs for relay control. MAX-08 MULTI CONTROLLER... -
Page 12: Triggering Scenarios
8. Triggering Scenarios Scenarios can be triggered in three ways: via TRIGGERS inputs, DMX signal, or LAN network using Artnet sACN UDP MODUS protocol. The triggering method should be set in the MAX8 DevManager configuration program. Examples of using external TRIGGERS: •... - Page 13 • Triggering programmed sequences using buttons • Triggering programmed sequences using sensors MAX-08 MULTI CONTROLLER...
-
Page 14: Additional Triggers Function
LAN network. This means that buttons connected to the TRIGGERS inputs can be used to trigger other devices controlled via Artnet, such as triggering content from a media server, triggering scenes/programs from light mixers, starting special effects, etc. MAX-08 MULTI CONTROLLER... -
Page 15: Configuration
Triggering content from the media server using buttons connected to the TRIGGERS input 10.Configuration Configuration is done via the LAN network using the MAX8 DevManager configuration program. The configuration computer and the controller must be in the same address group, e.g., 10.0.0.x, 192.168.1.x, etc. MAX-08 MULTI CONTROLLER... - Page 16 By pressing the "Find devices" button, MAX-8 devices will be detected. Clicking on one of them will unlock the configuration options. The device configuration is divided into several logical tabs: • Inputs (Trigger) • Outputs (Output) • Audio Subsystem • MAX-08 MULTI CONTROLLER...
- Page 17 Show 1 – Show 8: Plays the programmed show • Test: Emulates pressing the corresponding button • Options: Checking the option allows interrupting Show or audio playback and automatically playing another assigned option. Changes should be confirmed by pressing the "Save & Close" button. MAX-08 MULTI CONTROLLER...
- Page 18 Channel: Artnet channel controlling the selected output • PWM: Switching the output to PWM mode, e.g., for controlling LED strips • Test: Checking the option sets the selected output to 100% Changes should be confirmed by pressing the "Save & Close" button. MAX-08 MULTI CONTROLLER...
- Page 19 Audio Subsystem – Configuration: • NET: Artnet protocol NET parameter • Universe: Artnet protocol Universe parameter • Channel: Artnet channel activating the selected option DMX – Configuration: • NET: Artnet protocol NET parameter • Universe: Artnet protocol Universe parameter MAX-08 MULTI CONTROLLER...
- Page 20 If the button is gray, the selected show is empty. The system records Artnet packets for NET=0 and Universe=0. Activation of the ERASE, RECORD, and SYNCHRO RECORD options is done by double-clicking the button. ERASE: Pressing the button will permanently delete the Show. MAX-08 MULTI CONTROLLER...
-
Page 21: Recording A Show
ArtNet signal is sent to the controller's address on NET 0 and Universe 0. (In some programs, Universe 0 is marked as 1). The simplest way to prepare a work scenario is by using the timeline feature of the free QLC software, available for download at https://www.qlcplus.org/. MAX-08 MULTI CONTROLLER... -
Page 22: Uploading Audio Files
001Filename.mp3, 002Filename.mp3 … 255Filename.mp3. Files can be uploaded directly to the memory card or via FTP connection. FTP connection details: • User: ftp • Pass: ftp • Connection type: passive mode MAX-08 MULTI CONTROLLER... -
Page 23: Power Supply
The recommended power supply, provided by the manufacturer, should be used to power the converter, e.g., HDR-30-1. Alternatively, you can use the passive POE (Power over Ethernet) system for powering the device. MAX-08 MULTI CONTROLLER... -
Page 24: Factory Reset
14.Factory Reset The MAX-08 MODUS device has the ability to restore the default settings that it comes with when purchased. MAX-08 MULTI CONTROLLER... - Page 25 4. Release the RESET button. 5. Turn off the device. When you reconnect the power, the factory settings will be restored. By default, the device is set to DHCP mode. MAX-08 MULTI CONTROLLER...
-
Page 26: Ip Address
RESET button. 16.Maintenance and Repairs The device does not contain any user-serviceable parts. In case of malfunction, contact the seller or manufacturer. Warning!! Any self-repairs may cause irreversible damage to the device or create other hazards. MAX-08 MULTI CONTROLLER... -
Page 27: Enclosures And Dimensions
17.Enclosures and Dimensions The device is available in three housing versions: 1. Only PCB, intended for self-assembly in any enclosure 2. Standard Enclosure: DIN 35mm 3. Optional Outdoor Enclosure: IP67 MAX-08 MULTI CONTROLLER... -
Page 28: Technical Specifications
DIN rail - Dimensions: 90/31/104 mm - Configuration: via MAX8 DevManager software. Note: The manufacturer reserves the right to make changes to the device's functionality and operation to improve the product. 19.Contact Information www.modus.pl biuro@modus.pl MAX-08 MULTI CONTROLLER... - Page 29 "CE" stand for "Conformité Européenne" ("European Conformity"). Essential characteristics the product complies: • ARL-08: Artnet Relay – module 8 relays controlled by Artnet and Modus protocol. We have verified that the product complies with all relevant “essential requirements” (e.g., safety, health, environmental protection requirements) of the applicable directive(s) bellow: •...
