PLD48

PIXEL DMX LED Driver

Instruction for use

Table of Contents

Need help?

Do you have a question about the PLD48 and is the answer not in the manual?

Questions and answers

Summary of Contents for Modus PLD48

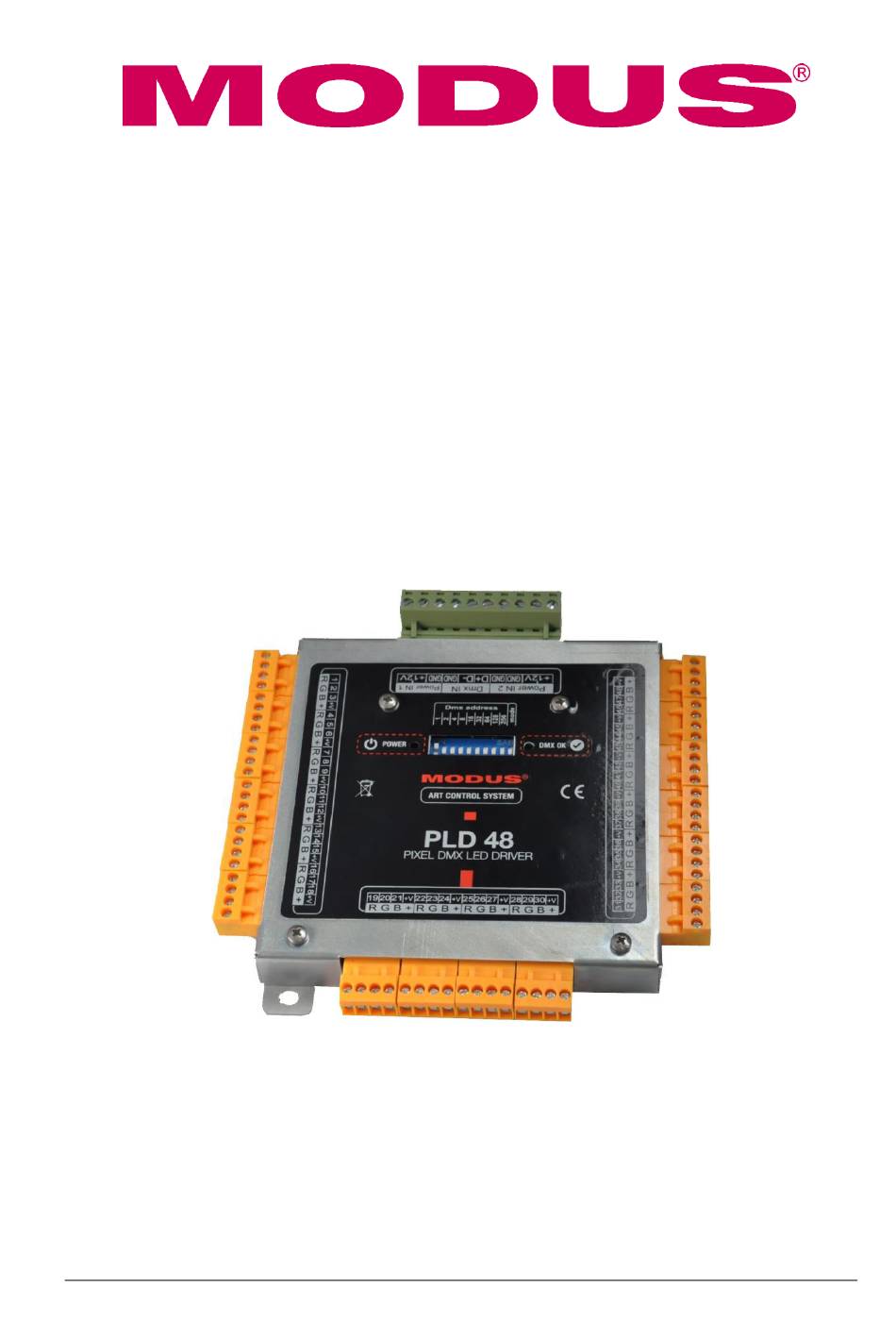

Page 1 PLD48 PIXEL DMX LED Driver Instruction for use...
Page 2 Should you have any comments please let us know. We will be grateful for all suggestions to help us to manufacture even better products, products to fulfill your expectations, MODUS – Instruction for Use – Version 2.0...
Page 3 Setting the DIP SW (DMX mode, Stand-Alone Mode) ..........7 5.1. DMX mode ........................7 5.2. Stand-alone mode ....................... 7 Maintenance and repairs ..................... 8 Technical parameters ....................8 Contact ......................... 8 MODUS – Instruction for Use – Version 2.0...
Page 4  Do not switch the device in spaces of the relative humidity above 90%.  Do not use the device in spaces, where the temperature is lower than +20 C or above MODUS – Instruction for Use – Version 2.0...

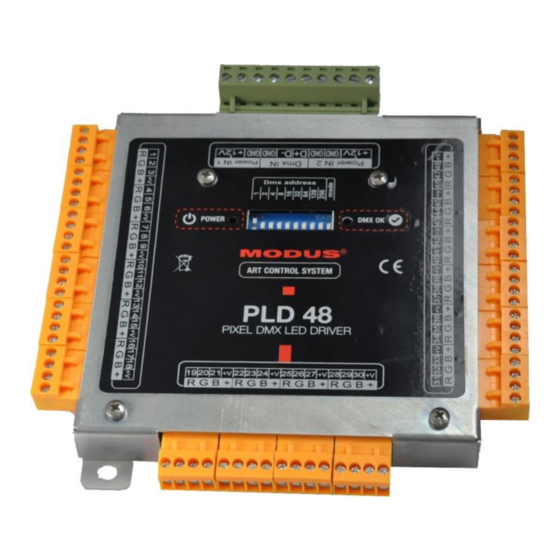

Page 5 3. Output joints, channels 19-30 4. Output joints, channels 31-48 5. Supply power indicator light 6. DMX512 signal presence indicator light 7. DIP Switch 10, setting DMX address and activation of built-in testing programs and scenes MODUS – Instruction for Use – Version 2.0...
Page 6 The driver is provided with 2 power supply inputs - one for the first 24 channels and the second for channels 24 - 48. Connect these to one feeder or to two feeders. MODUS – Instruction for Use – Version 2.0...
Page 7 5.1. DMX mode A 10-position DIP SW is built in into the PLD48 driver. It allows both setting the DMX address and selection of built-in programs and scenes. For selection of the operation mode use the switch No. 10 ("mode"). With the switch at OFF the driver is operating in the DMX mode and at the 1 - 9 positions of switches we set the first channel address.
Page 8 Power supply: 12 VDC Power consumption: 24A max. Number of output channels: 48 Output loadability: Max. 0.5A / channel Dimensions: Width 130 mm Height 130 mm Depth 24 mm 8. Contact www.modus.pl office@modus.pl MODUS – Instruction for Use – Version 2.0...
