Unika AVRS-3K6 Quick Start Manual

P R O F E S S I O N A L
OPERATION MANUAL
Congratulations on your purchase of a UNIKA AVRS-3K6 AC Line Voltage Regulator. The AVRS-3K6 is the perfect accessory to
any audio, video, or computer and peripherals rack-mount system requiring clean, filtered, and regulated AC power for optimum
operation.
FEATURES
AVRS-3K6 provides 2 PowerCon, 6 North America type totally 8 regulated, conditioned AC outlets on the rear panel.

AVRS-3K6 Input capacity is 3600W.

Built-in advanced 2 stages of power filter.

Regulation input voltage range is an extra +/-10% out of the standard stable output voltage.

Extreme over-voltage and under-voltage will instantly shutdown, safeguard connected equipment.

Extreme Voltage Shutdown indicator LED.

Output-Regulation indicator LED.


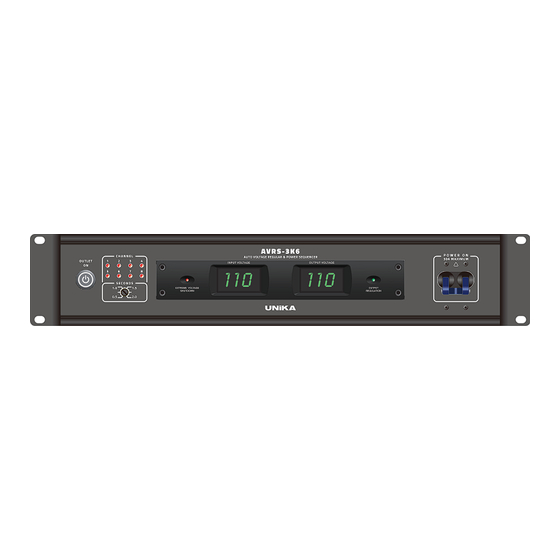

Large 7 segments LED indicators for input and output voltage display.

Easy and fast user-operable circuit breaker prevents overload or short circuit.

Very low stray magnetic field leakage.

Main power ON/OFF switch.

Power sequencer with 8 of channel indicators and 0.5~2 second interval adjustment

New natural convection heat dissipation design, no fan noise during use

Compact, lightweight device weighing only 17.6 pounds (8kg) , 2 U chassis height.

SAFETY PRECAUTIONS
To obtain best results from the AVRS-3K6, please do not use too thin and unqualified power cord.
To reduce the risk of electrical shock, do not expose your AVRS-3K6 to rain or moisture.
Hazardous voltages are present inside the enclosure. Please do not remove the cover for any reason. There are no user
serviceable parts inside. Refer servicing to qualified service personnel.
STANDARD OUTPUT VOLTAGE VS. INPUT VOLTAGE WITHIN THE REGULATION LIMIT
Regulated output voltage: AC-110V

Output voltage accuracy: Less than ± 5V

Input voltage regulation limit range: 95Vac ~ 125Vac

Regulators are designed to protect sensitive electronic equipment from problems caused by AC line voltage irregularities, It may
cause audio tonal changes, malfunctions of digital equipment (such as loss of MIDI programs or other data), or in extreme cases it
can cause permanent damage.
The regulator accept an input voltage over a wide AC voltage range and convert it to the required standard stable output voltage
(110Vac +/-5V); voltages outside this range of approximately ± 10% can be converted to usable levels, depending on considered
usable devices.

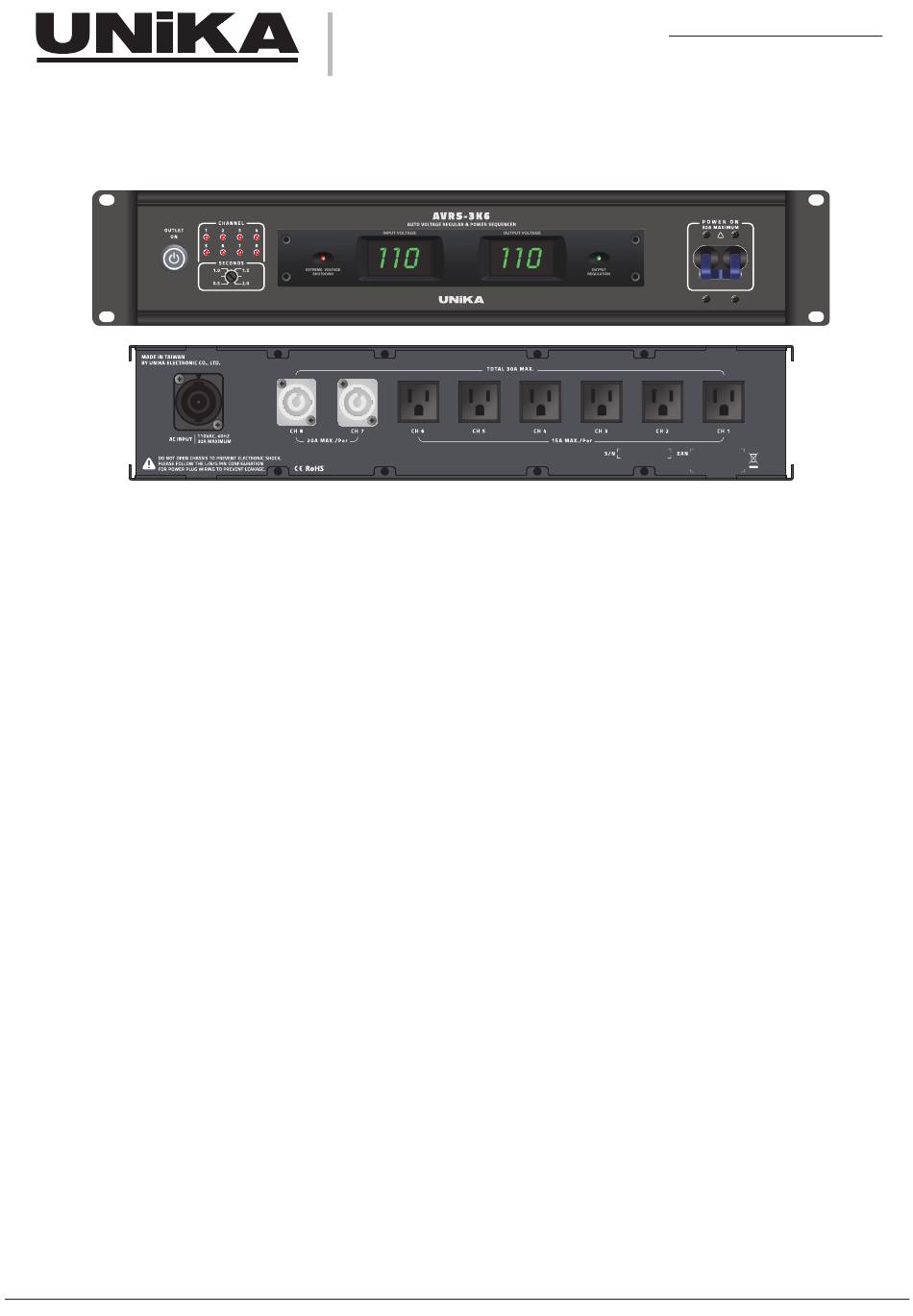

The AVRS-3K6 has 8 outlets on the rear panel, and one on the front panel, all are functionally interchangeable.
All the outlets are regulated, spike-suppressed, and filtered against 2 stages of RFI/EMI filter, making the AVRS-3K6 a full-function
power conditioner.
The AVRS-3K6 has no external controls other than a power on-off switch.
Note: The AVRS-3K6 is designed for use with AC voltage only and DC voltages should never be applied. Also, the AVRS-3K6 does
not change or regulate the line frequency in any way. The output frequency will always be the same as the incoming line frequency.
AVRS-3K6
A U D I O
PAGE1
