BaBylissPro FXC2B Manual

IMPORTANT SAFETY INSTRUCTIONS –
When using an electrical charging stand, basic precautions are required to always be followed, including the following:
DANGER – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS
1. Do not reach for an appliance that has fallen into water. Unplug immediately from receptacle.
2. Do not use while bathing or in a shower.
3. Do not place or store charging stand where it is able to fall or be pulled into a tub or sink. Do not place in or drop
into water or other liquid.
4. Except when charging, always unplug this charging stand from the electrical outlet immediately after using.
5. Unplug this charging stand before cleaning.
WARNING –
To reduce the risk of burns, fire, electric shock, or injury to persons:
1. An appliance shall never be left unattended when plugged in.
2. This charging stand is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the charging stand by a person responsible for their safety. Children should be supervised to
ensure that they do not play with the charging stand.
3. Use this charging stand only for its intended use as describe in this manual. Do not use attachments not specified
by the manufacturer.
4. Never operate this charging stand when it has a damaged cord or plug, when it is not working properly, after it has
been dropped or damaged, or after it has been dropped into water. Return the charging stand to a service center
for examination and repair.
5. Keep the cord away from heated surfaces.
6. Keep the air openings free of lint, hair, and similar objects.
7. Never drop or insert any object into any opening.
8. Do not use outdoors or operate while aerosol (spray) products are being used.
9. Always attach plug to charging stand first, then to outlet.
10. Keep the charging stand cord away from heated surfaces.
11. Do not crush, heat above 212°F (100°C) or incinerate the charging stand due to risk of fire, explosion or burns.
12. Plug charging stand into outlet to charge batteries. To disconnect, first remove batteries from charging stand, then
unplug from outlet.
13. Use of a power cord and batteries not sold by BaBylissPRO may result in risk of fire, electric shock, or injury to
person.
14. Do not disassemble charging stand. Incorrect reassembly may result in a risk of electric shock or fire. When repair
is required, send or take it to a BaBylissPRO Authorized Service Center.
15. The batteries for this charging stand are designed to provide maximum trouble-free life. However, like all batteries,
they will eventually wear out. Do not attempt to replace the batteries. When replacement is required, contact a
BaBylissPRO Authorized Service Center.
16. Batteries can be harmful to the environment if disposed of improperly. Many communities offer recycling or battery
collection. Contact your local government about disposal practices in your area.
17. WARNING: Never touch both terminals on stand or batteries with metal objects and/or body parts, as short circuit
may result. Keep away from children. Failure to comply with these warnings could result in fire or serious injury.
18. This charging stand is intended for battery charging purposes only.
19. During use, do not place or leave the charging stand where it is expected to be: A) subject to damage by an animal
or B) exposed to the weather.
20. This charging stand doesn't have a switch. It is energized when plugged into a power outlet.
SAVE THESE INSTRUCTIONS
This product is for commercial use.
AUTOMATIC CHARGING MANAGEMENT
One Battery – 2.0A Fast Charging
Two Batteries – 1.2A Normal Charging
If the charging stand is to be stored unused for a long period,
the batteries should be removed.
BEFORE USING THE CLASS 2 BATTERY CHARGER,
READ THESE INSTRUCTIONS CAREFULLY.
Use charging stand only with FXONE batteries.
Model No. FXC2B
Rated input voltage: 100–240V ~, 50/60Hz, 0.3A
Rated output: 4.2V DC, 2.5A
Use only with FXONE batteries (not provided), rated 3.6V DC.
OPERATION
1. For dry location use only. Do not expose to water.
2. When not in use, unplug unit completely.
3. Charging stand and batteries will become warm during operation.
CAUTION
1. Dry location use only. Do not expose to liquids, vapor, or rain.
2. Ensure charging stand is plugged into the outlet before charging batteries.
3. Do not operate any appliance that has a damaged output cord or housing.
4. Always unplug the charging stand before cleaning or when not in use.
5. The charging stand automatically adjusts to the input voltage. For connection to power supply not in the USA, use
an attachment plug adapter (not included) of the proper configuration for power outlet. DO NOT USE A VOLTAGE
CONVERTER.
Maintenance: any other servicing should be performed by authorized service requirement.
Everyone knows that electricity and water are a dangerous combination. But did you know that an
electrical appliance is still electrically live even if the switch is off? If the plug is in, the power is on.
So when you are not using the appliances, keep them unplugged.
This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug
will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the
plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature
or change the plug in any way.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, USER MUST READ THE INSTRUCTION MANUAL. USE ONLY
WITH 3.6VDC FXONE BATTERY PACKS FXBB24/ FXBB33/ FXBPT/ FXBPT33/ FXBPC/ FXBPC33. OTHER TYPES OF
BATTERIES MAY BURST, CAUSING PERSONAL INJURY AND DAMAGE. DO NOT EXPOSE TO LIQUIDS, VAPOR, OR
RAIN. DO NOT SHORT-CIRCUIT TERMINALS.
OPERATING INSTRUCTIONS
Connect the included removable power cord to the back of the charging stand. Plug cord into a standard outlet. The
FXC2B Dual FXONE-Battery Charging Stand operates at 100–240V~ 50/60Hz. Note: This unit will only work with the
included power cord. The standard FXCORD will not work with this charging stand and may cause damage to the
charging stand, batteries, and/or cord.
Once the first charging stand is connected to the outlet, the front door can be opened to connect another charging
stand. This expands the charging capability. Up to eight FXC2B charging stands can be plugged into a single wall outlet,
allowing up to 16 FXONE batteries to charge at once.
To insert a battery into the charging stand: Align the arrow mark on the battery with the arrow mark on the charger, then
insert the battery into the opening and push into the housing until the locking mechanism engages.
BATTERY/CHARGING INDICATOR
(TOP OF FXONE BATTERY)
Blue flashing – Charging
Blue solid – Charged (see charge levels below)
• The charging stand may become warm while charging. This is normal.
• Preserving the battery: In order to maintain the optimum capacity of the rechargeable battery, it should be recharged
for 3 hours approximately every 6 months.
• Only use the FXC2B Dual FXONE-Battery Charging Stand with the included line power cord. The FXCORD will not work
with this charging stand and could cause damage to the charging stand, batteries, and/or cord.
• CAN ICES-3(B).
WARNING: If the battery's red LED light suddenly starts to flash rapidly, the battery is faulty. If this happens, stop
charging, unplug the FXC2B Dual FXONE-Battery Charging Stand from the outlet, and contact our Customer Care Center
for further advice.
BATTERY CHARGE-LEVEL INDICATOR
The FXONE Universal Battery has a built-in 4-stage LED ring light to indicate charge level of the battery. To check charge
level, press the center button on the bottom of the battery housing to display current charge level.
Full circle – 100% charge
¾ circle – 75% charge
½ circle – 50% charge
¼ circle – 25% charge
Read these instructions carefully before connecting the charging stand to any power supply.
FEDERAL COMMUNICATIONS COMMISSION NOTICE
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) This device must accept any interference received, including interference
that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Brand: BaBylissPRO
®
Model No.: FXC2B
Description: FXONE-Battery Charger
Responsible Party: Conair LLC
1 Cummings Point Road
Stamford, CT 06902
(203) 351-9000
Standards: FCC Part 15 Subpart B, ANSI C63.4-2014
ICES-003
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including
interference that may cause undesirable operation.
DATE OF ISSUE: 01/23/2024
24FA091726
FXC2B IB-18434.indd 1 FXC2B IB-18434.indd 1
SAVE THESE INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
THIS CHARGING STAND
SUPPLIER'S DECLARATION OF CONFORMITY

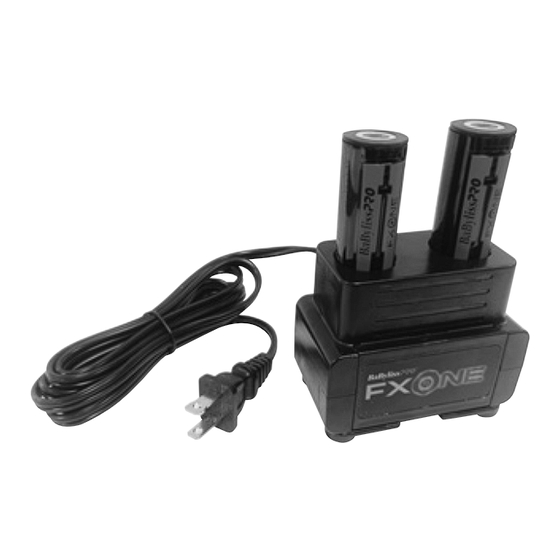

Charging stand and batteries
Push front door upward, then down to open
Battery-Level
Indicator Button
Push front door into charging stand
IB-18434
2024/4/8 11:39 2024/4/8 11:39
