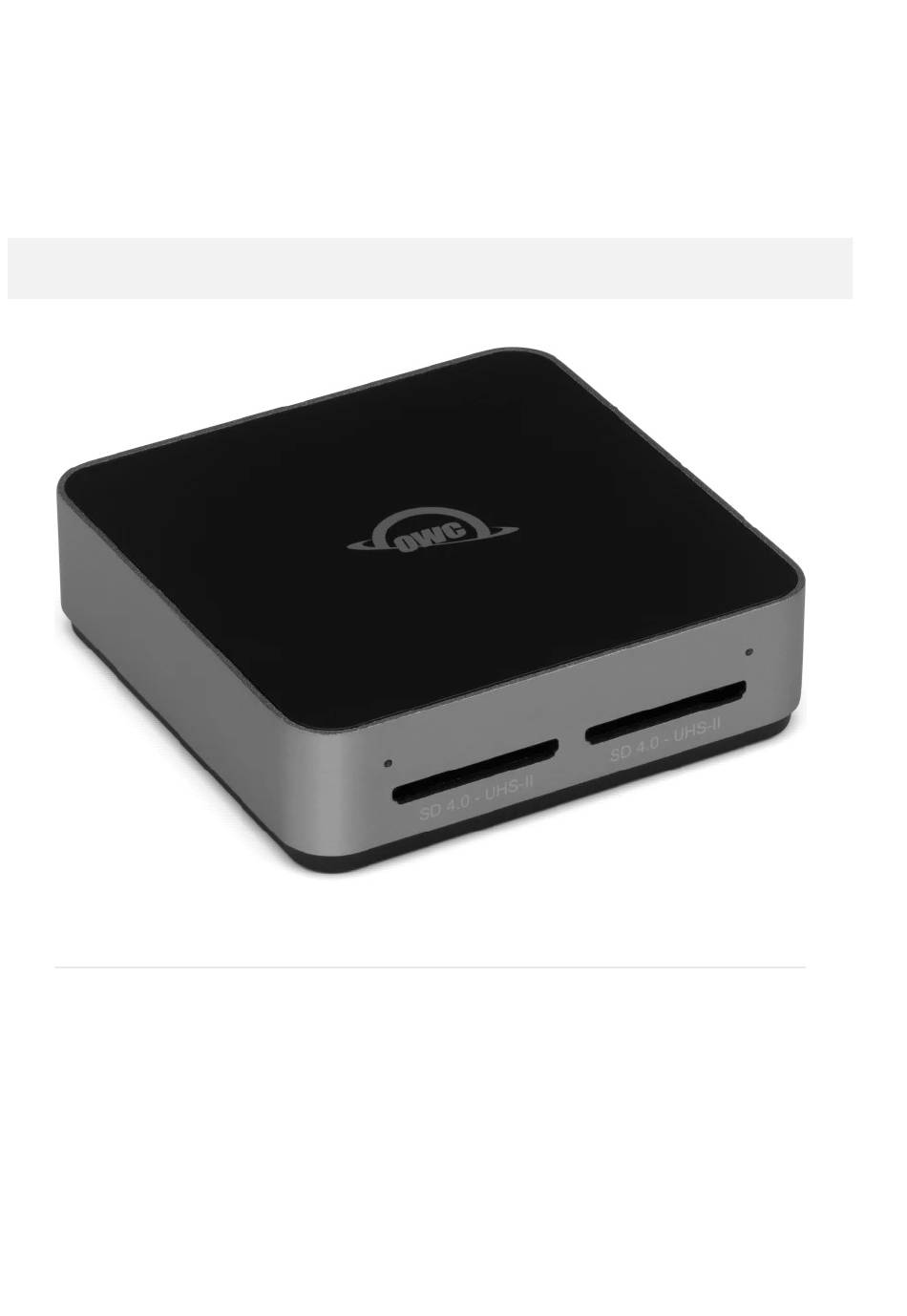

OWC Atlas Dual SD Card Reader
Support Guide
Contents
Introduction
1.1 - System Requirements
1.2 - Package Contents
1.3 - About This Manual
1.4 - Product Overview

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Atlas and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OWC Atlas

Summary of Contents for OWC Atlas

  • Page 1 OWC Atlas Dual SD Card Reader Support Guide Contents Introduction 1.1 - System Requirements 1.2 - Package Contents 1.3 - About This Manual 1.4 - Product Overview...

  • Page 2: System Requirements

    • MacOS 10.11 or later, Windows 10 or later, iPadOS 13 or later, Chrome OS, and Linux Supported Memory Cards: • (2) SDXC (up to 4.0 UHS-II) cards (not included) 1.2 – Package Contents • (1) OWC Atlas Dual SD card reader • (1) Tethered USB Type-C cable • (1) Quick Start Guide...

  • Page 3: About This Manual

    OWC’s Limited Warranty is not transferable and subject to limitations. 1.4 – Product Overview A Atlas Dual SD Reader – (2) SD 4.0 Slots support SD4.0 UHS-II cards B. LED Indicator: Operation LED Function Connected card reader without memory cards.

  • Page 4: Usage Information

    F. USB-C 10Gb/s port – use with longer cables to extend your connection while at home or in the office Usage Information 2.1 – Device Set up • Connect the Atlas Dual SD card reader to your compatible host via the tethered USB-C cable or USB-C cable connected to the USB-C 10Gb/s port.
  • Page 5 • Insert an SDXC card into either card slot by aligning the memory card notches with the internal card reader connections. The gold contacts should be facing down when the memory card is inserted. • The card may take up to 30 seconds for the card to be recognized when using over iPadOS, Android, or Chrome OS.

  • Page 8: Write Protection Switch

    2.2 - Write Protection Switch...
  • Page 9 • The inserted memory cards need to be properly unmounted from the operating system and removed from the Atlas Dual SD card reader before toggling the Write Protection Switch. • Note: Write protection will NOT enable or disable properly if toggled while the memory cards are connected.

  • Page 10: Usage Notes

    • To store the tethered USB-C cable, place the USB-C connector into the cavity on the underside of the Atlas Dual SD card reader, press down on the black connector, and wrap the cable by pressing down into the notch.
  • Page 11 • Chaining other docks off the USB-C 10Gb/s port is not supported.

  • Page 12: Support Resources

    • For the safe removal of your memory card, and to ensure that no data is lost, always eject or unmount from your operating system before removing the card. • Users who acquire an OWC ClingOn should carefully install the connector securing device by avoiding over tightening the mounting screw.

  • Page 13: Contacting Technical Support

    • OWC support is here to help. Please have your serial number ready which can be located on the bottom of your Atlas Dual SD card reader and printed on the original packaging. Please contact support for further assistance.
  • Page 14 - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. WARRANTY: The OWC Atlas Dual SD Card Reader has a 2 Year OWC Limited Warranty. For up-to-date product and warranty information, please visit the product web page.
