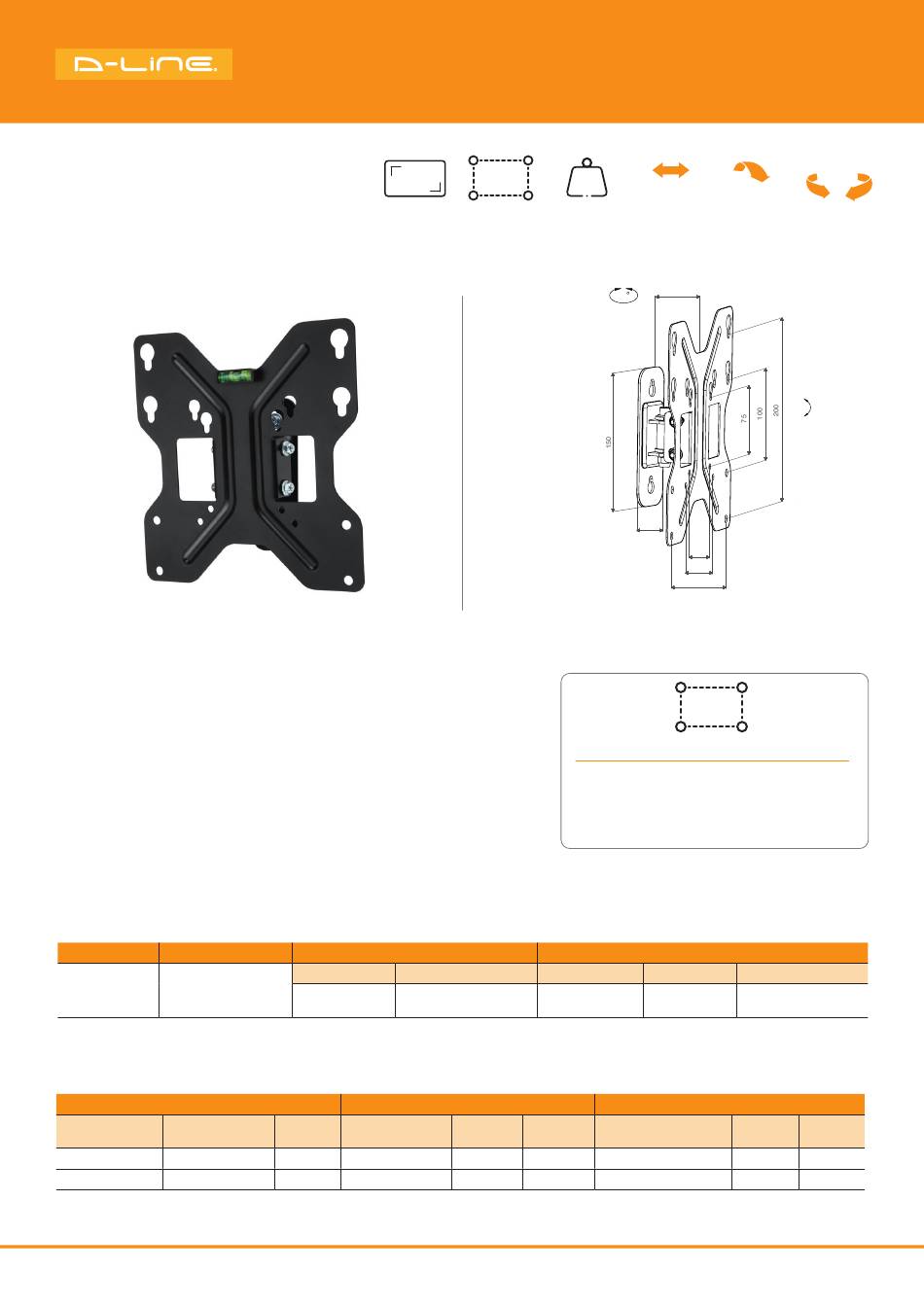

D Line DTBST200-DL Instruction Manual

Tilt & Turn
TV Mount
DTBST200-DL
Features:
• Tilt and Turn adjustment to reduce glare and get the perfect viewing angle
• Compact design to save space in your room, just 59mm (2.3") deep
• Slide on installation makes mounting the TV simpler and faster
• Shaped metal plate for extra strength to reliably support your screen
• Can be used to keep the screen away from children and pets
• Confidently mount your screen with a high 30kg maximum weight limit
• Suits 23" - 50" TVs, compatible with common VESA sizes from 75x75 - 200x200
• Includes fixings for solid walls, stud walls and the TV, for convenience
• High quality steel construction with independent testing by SGS
• Reassurance of a 5 year warranty as standard
Packaging Information
Part Number Description
Tilt & Turn
DTBST200-DL TV wall mount bracket,
23 - 50"
Weights & Dimensions
Product
Extended Folded
24.0 x 23.0 x 5.9 cm n/a
9.45" x 9.06" x 2.32" n/a
DTBST200-DL.Q1.2024
50"
23-
58-127cm
Screen Size
Product Packaging
Type Barcode
Colour retail box 5056335606481
Product Box
Net
Dimensions
Weight
0.86kg 24.0 x 26.0 x 7.5 cm
1.9lbs 9.45" x 10.24" x 2.95"
VESA
VESA
200x200
30kg
Max Weight
Max VESA
Distance from
Size Capacity
25
Type
Brown outer
with label
Gross
Cubic Dimensions
Weight
1.02kg 0.0047m3 50.0 x 47.5 x 27.5cm
2.24lbs 0.1653ft3 19.69" x 18.7" x 10.83"
Specification Sheet
59mm
+/-15º
Tilt
the wall
Range
59
±15°
50
75
100
200
All dimensions are in mm
VESA
Compatible VESA Sizes
75x75
100x100
200x100
200x200
Outer Packaging
Qty in box Barcode
12 15056335606488
Outer Box
Gross
Cubic
Weight
16.5kg 0.0653m3
36.4lbs 2.3065ft3
www.d-line.com
+/-12º
Turn
Range
