  • Page 1 Thorlabs Instrumentation TXP5001AD Operation Manual 2017...
  • Page 2 Version: 3.1.5 Date: 31-Jan-2017 Item No.: M0009-510-100 Copyright © 2017 Thorlabs GmbH...
  • Page 3: Table Of Contents

    5.1 Installing and Removing Modules 6 Maintenance and Service 6.1 Replacing the On-board Fuses 6.2 Troubleshooting 7 Appendix 7.1 Technical Data 7.2 Certifications and Compliances 7.3 Warranty 7.4 Copyright and Exclusion of Reliability 7.5 Thorlabs 'End of Life' Policy 7.6 Thorlabs Worldwide Contacts...
  • Page 4: Foreword

    Paragraphs preceeded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read these advices carefully! © 2017 Thorlabs GmbH...
  • Page 5: General Information

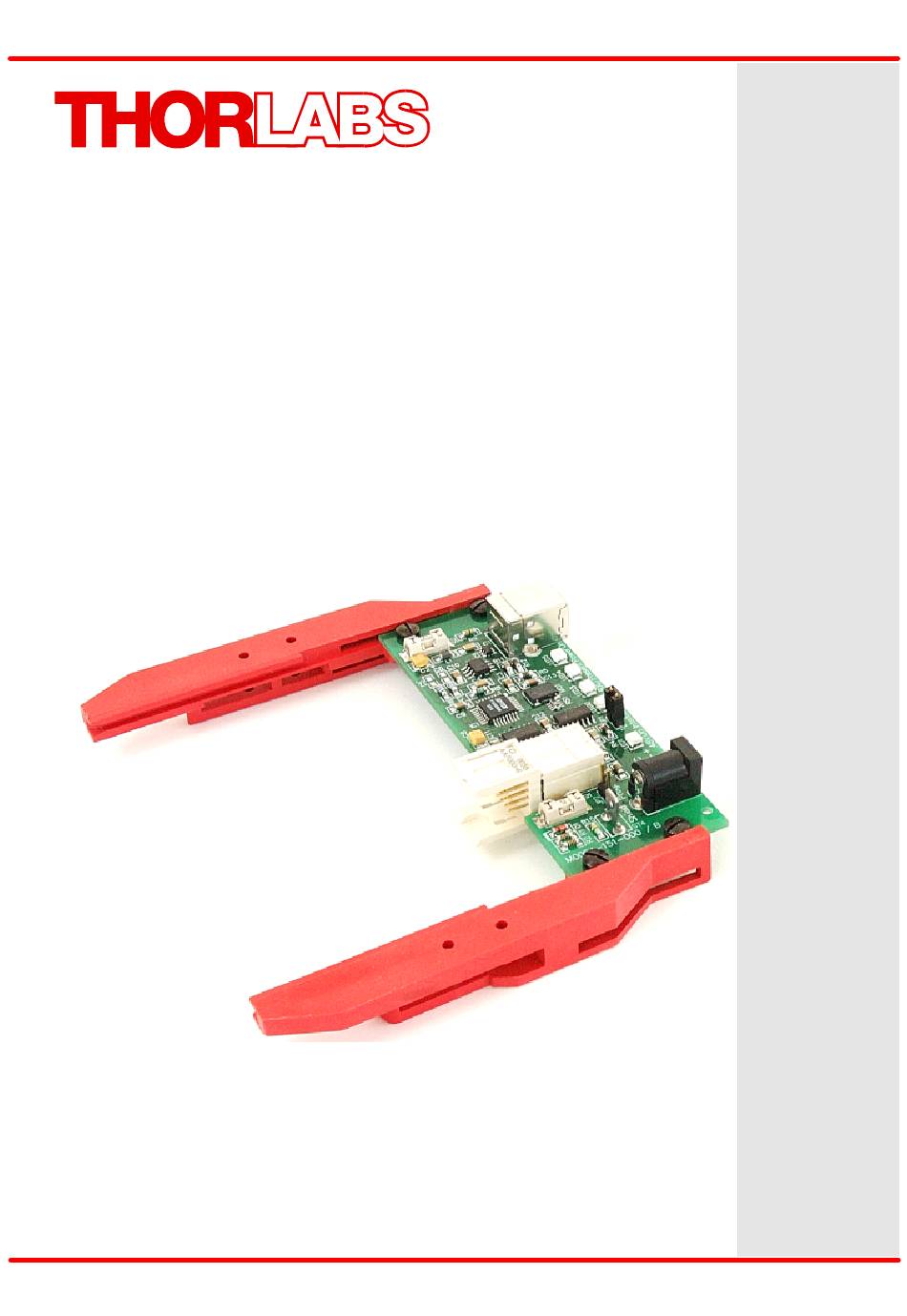

    The TXP5001AD single module adapter is designed to accommodate one TXP module. The module is controlled by an external PC, connected via the USB interface of the TXP5001AD. It has a wide range power supply compatible with line voltages between 100...240VAC, 50-60Hz.
  • Page 6 TXP5001AD Thorlabs GmbH is not responsible for any radio television interference caused by modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Thorlabs GmbH. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.
  • Page 7: Ordering Codes And Accessories

    · Windows 8.x (32-bit, 64-bit) For operation of the TXP5001AD, also an NI-VISA (version 5.4.1 or higher) is required. This NI- VISA engines comes with the Thorlabs GmbH TXP5001AD installation software package, but can be downloaded also from National Instruments' website www.ni.com.
  • Page 8: Getting Started

    4. Desktop Power Supply and Power Cord 2.2 Installing Software Note Do not connect the TXP5001AD to the PC prior to software installation! Attention Exit all running applications on your PC as the installer may require a reboot of your PC...
  • Page 9 2 Getting Started Allow the installation. Then follow the the screenshots below: © 2017 Thorlabs GmbH...
  • Page 10 TXP5001AD © 2017 Thorlabs GmbH...
  • Page 11 This Windows Security message appears twice. You may be requested to restart your computer upon finishing software installation. Note If you are requested to restart your computer, please do so. Otherwise, the TXP software won't operate properly. © 2017 Thorlabs GmbH...
  • Page 12: Operating Elements Txp5001Ad

    LED "Power ON". Indicates that the inserted TXP module is powered up. USB-B connector for connection to the control PC Shield. Grounding pin of the TXP5001AD (system ground). Fuse 1 A for the 48 V power supply Multi-pin connector for the TXP module Fuse 0.5 A for the USB supply...
  • Page 13: First Steps

    In this position the TXP module is disabled! Correct position · Connect the power supply to your TXP5001AD. The green LED "48 V ON" must light up. 4.1 USB driver installation Connect the TXP5001AD to your computer using the USB cable provided with the unit.
  • Page 14: Txp Server Configuration

    ) or from the Windows Start button: At first use of the TXP Server, a configuration wizard is started. It is strongly recommended not to change the settings in the next appearing dialog boxes - just click "Next" to continue: © 2017 Thorlabs GmbH...
  • Page 15 The TXP5001AD is ready for operation now. Note Above procedure needs to be executed only once. Further connections of the TXP5001AD to the PC will recall these setting, except other applications were installed, requiring COM ports or a different TXP5001AD was used.
  • Page 16: Gateway Mode

    TXP5001AD 4.3 Gateway Mode The PC that controls the TXP5001AD via USB, can serve as a gateway to a local area network. This way, any other PC logged on to the same LAN can take over the control. Therefore, - the PC that controls the TXP5001AD via USB, must be logged on the the LAN;...
  • Page 17 Select from Windows button -> Programs the TXP Polarimeter Software: The TXP LS GUI starts up; click to "Connect" button: and enter the host name (or the IP address) of the USB control PC into the appropriate box and click OK: © 2017 Thorlabs GmbH...
  • Page 18 TXP5001AD Then select the desired LS5 module and click OK: The TXP LS GUI connects to the module and is ready for use: © 2017 Thorlabs GmbH...
  • Page 19: Operating Instruction

    Detaching the module leads to an automatic disconnect, if the module was connected and operated by the control PC. Make sure, that - the TXP5001AD with inserted electronics module is switched on and connected to the PC via a USB2.0 cable. - the TXP Server is started and running (see icon in the task bar).
  • Page 20: Maintenance And Service

    TXP5001AD 6 Maintenance and Service Protect the TXP5001AD from adverse weather conditions. The TXP5001AD is not water resistant. Attention To avoid damage to the instrument, do not expose it to spray, liquids or solvents! The unit does not need a regular maintenance by the user. It does not contain any modules and/or components that could be repaired by the user himself.
  • Page 21: Replacing The On-Board Fuses

    · No. 2 - fuse for 5 V USB supply: Littlefuse NANO2™ Slo-Blo™ R452 500 (500 mA, slow response) After fuse replacement, reinstall the module, switch on the TXP5001AD and check the correct function. If the fuse(s) open(s) again there may be a fault on the corresponding module. Please contact Thorlabs.
  • Page 22: Troubleshooting

    · The TXP Server starts and reports "There is no COM port available" Ø Did you connect your TXP5001AD to a different USB port than before or are you using a different TXP5001AD? The COM ports are assigned to slots with a specific name on a specific USB port. If you change either the USB port or the TXP, the system needs to assign new COM ports to the found new hardware.
  • Page 23 Uninstall option and check the box "Delete the driver software for this device". Repeat this for all 4 ports. o Disconnect the TXP5001AD from the USB port, reconnect it and make sure that the drivers are being installed now properly.
  • Page 24: Appendix

    Pollution Degree (indoor use only) Operation Altitude < 2000 m Warm-up Time (typ.) 10 min Weight (empty) 0.2 kg ) non-condensing All technical data are valid at 23 ± 5°C and 45 ± 15% rel. humidity (non condensing) © 2017 Thorlabs GmbH...
  • Page 25: Certifications And Compliances

    For full compliance with these standards, this unit must be operated in a grounded and shielded housing. The power supply mus be properly filtered. Emissions, which exceed the levels required by these standards, may occur when this equipment is connected to a test object. © 2017 Thorlabs GmbH...
  • Page 26: Warranty

    For warranty repairs or service the unit must be sent back to Thorlabs GmbH. The customer will carry the shipping costs to Thorlabs GmbH, in case of warranty repairs Thorlabs GmbH will carry the shipping costs back to the customer.
  • Page 27: Copyright And Exclusion Of Reliability

    Thorlabs GmbH dealer or system installer. All rights reserved. This document may not be reproduced, transmitted or translated to another language, either as a whole or in parts, without the prior written permission of Thorlabs GmbH. Copyright © Thorlabs GmbH 2017. All rights reserved.
  • Page 28: Thorlabs 'End Of Life' Policy

    Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs GmbH, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
  • Page 29: Thorlabs Worldwide Contacts

    Email: europe@thorlabs.com Email: scandinavia@thorlabs.com France Brazil Thorlabs SAS Thorlabs Vendas de Fotônicos Ltda. 109, rue des Côtes Rua Riachuelo, 171 78600 Maisons-Laffitte São Carlos, SP 13560-110 France Brazil Tel: +33-970 444 844 Tel: +55-16-3413 7062 Fax: +33-811 38 17 48 Fax: +55-16-3413 7064 www.thorlabs.com...
