VPC33
VPC35
VPC37
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
Model No. VS19693
P/N: VPC33-W33-G1 |VPC33-L53-G1 | VPC35-W53-G1 | VPC37-W53-G1 | VPC35-W53-G1-T | VPC37-W53-G1-T |
VPC35-W55-G1 | VPC35-W55-G1-T | VPC37-W55-G1 | VPC37-W55-G1-T
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ViewSonic VPC33-W33-G1
Summary of Contents for ViewSonic VPC33-W33-G1
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
- Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.
-
Page 3: Table Of Contents
Contents Introduction ..............4 Package Contents ....................4 Product Overview ....................5 Initial Setup ..............6 Installing the VPC33/VPC35/VPC37 ................6 Making Connections ............ 7 Network Connection....................7 USB Connection ......................7 Using the Device ............8 Selecting an Input Source ..................8 IFP Series ......................... 8 CDE Series........................ -
Page 4: Introduction
Introduction Package Contents VPC33/VPC35/VPC37 VS19693 Slot in PC module VPC33/VPC35/VPC37 VS19693 Slot in PC module VPC33/VPC35/VPC37 VS19693 Slot in PC module VPC33/VPC35/VPC37 VS19693 Slot in PC module VPC33/VPC35/VPC37 Quick Start Guide NOTE: If anything is missing or damaged, please contact your local reseller for more information. -
Page 5: Product Overview

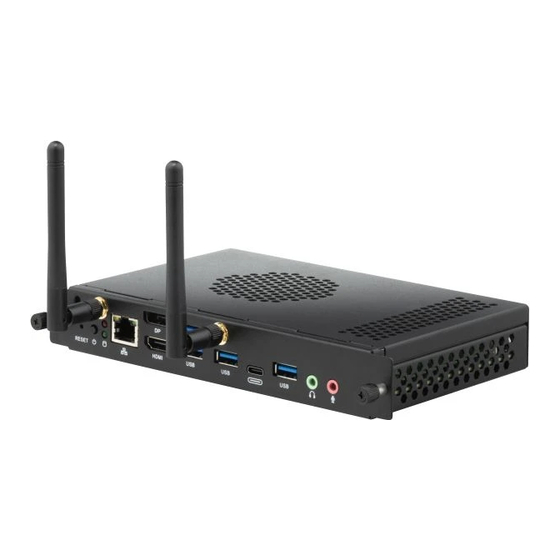

Product Overview 6 7 8 Number Item Description Security lock Antenna Wi-Fi antenna interface Standard RJ45 (10M/100M/1G) internet connection port NOTE: This network port is only used for PC. DisplayPort Connect to a PC or other device with DisplayPort output. USB 3.0 port RESET Reset button... -
Page 6: Initial Setup
Initial Setup Installing the VPC33/VPC35/VPC37 1. Remove the slot-in PC cover of the display. 2. Carefully insert the VPC33/VPC35/VPC37 into the PC slot of the display. 3. Secure the VPC33/VPC35/VPC37 to the display with the two (2) screws. NOTE: • Please note that the two (2) antennas must be installed on the VPC33/ VPC35/VPC37. -
Page 7: Making Connections
Making Connections Network Connection To connect to the Internet or a network, connect one end of a RJ45 cable to the RJ45 ( ) port of the VPC33/VPC35/VPC37, then connect the other end to your network. USB Connection USB peripherals such as keyboards, mice, storage devices, etc. can be connected to the VPC33/VPC35/VPC37’s USB ports. -
Page 8: Using The Device
Using the Device Selecting an Input Source IFP Series To select an input source: 1. Press INPUT/ on the remote control, press the setting button on the front panel, or press the Settings icon from the toolbar to display the Input Settings menu. -
Page 9: Cde Series
CDE Series Custom To select an input source: 1. Press INPUT/ on the remote control. 2. Press ▼/▲ on the remote control to select the PC source. 3. Press OK/ENTER on the remote control. 4. Press EPG/BACK/ on the remote control to exit. NOTE: ... -
Page 10: Appendix
Appendix Specifications Category Item Specifications 1 x LAN 1 x Display Port 1 x HDMI Ports 4 x USB 3.0 1 x USB type C 1 x Earphone 1 x Microphone Dimensions (mm) 180 x 119 x 30 mm Dimensions (in.) 7.09”... -
Page 11: Regulatory And Service Information
Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement Contains FCC ID:PD9AX200NG This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Fcc Radiation Exposure Statement
FCC Radiation Exposure Statement This device complies with FCC: radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. -
Page 13: Ic Radiation Exposure Statement
IC Radiation Exposure Statement This device complied with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with minimum distance 20 cm between the radiator & your body. Cet équipement est conforme aux limits d’exposition aux rayonnements IC établies pour un environnement non contrôlê. -
Page 14: Para Su Uso En México
Para su uso en México “La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada”. -
Page 15: Indian Restriction Of Hazardous Substances
Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®... -
Page 16: Copyright Information
Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries. ViewSonic® and the three birds logo are registered trademarks of ViewSonic® Corporation. VESA is a registered trademark of the Video Electronics Standards Association. -
Page 17: Customer Service
For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia Bangladesh www.viewsonic.com/au/ www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn www.viewsonic.com/hk/ 香港 (繁體中文) Hong Kong (English) India www.viewsonic.com/hk-en/ www.viewsonic.com/in/...
