Summary of Contents for Applied Research and Technology TUBE MP

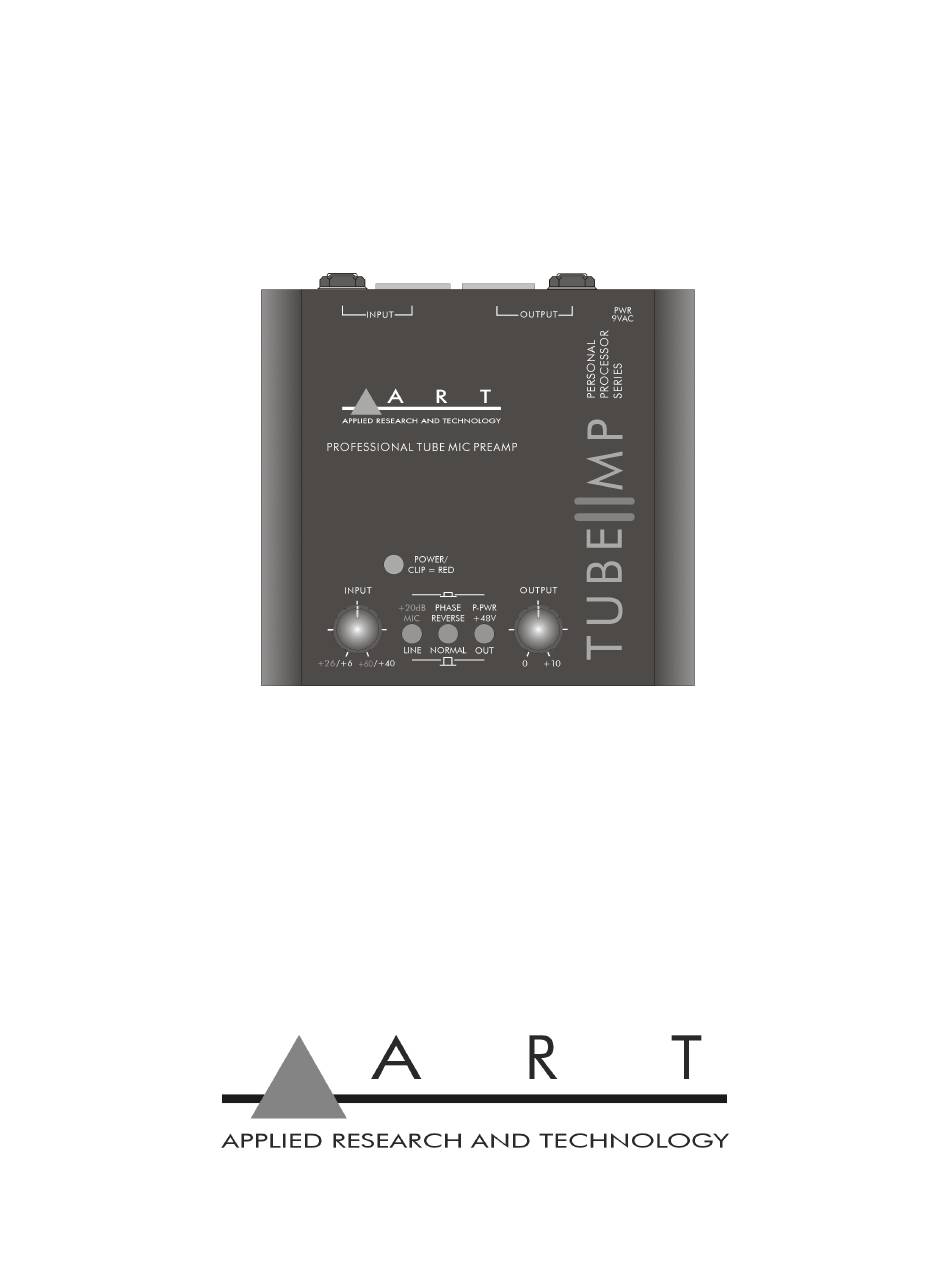

- Page 1 TUBE MP PROFESSIONAL TUBE MIC PREAMP USER’S MANUAL...
-
Page 3: Important Safety Instructions - Read First
IMPORTANT SAFETY INSTRUCTIONS – READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts alerts you to the presence of uninsulated you to important operating and maintenance Dangerous voltage inside the enclosure. Voltage instructions in the accompanying literature. that may be sufficient to constitute a risk of shock. - Page 4 TUBEMP PROFESSIONAL TUBE MIC PREAMP IMPORTANT SAFETY INSTRUCTIONS – READ FIRST ...................... II INTRODUCTION..................................1 FEATURES ..................................... 1 PRODUCT DESCRIPTION..............................1 CONNECTIONS..................................2 ...................................... 2 NPUTS ....................................2 UTPUTS ..................................... 2 OWER CONTROLS, SWITCHES AND INDICATORS........................2 ..................................2 NPUT ONTROL ..............................
-
Page 5: Product Description
AU Steel Chassis Product Description ART’s TUBE MP circuitry is a hybrid design utilizing the latest and best solid state and tube technology, Using a transformerless design throughout the TUBEMP maintains exceptional signal integrity and extremely low noise. The active balanced input utilizes a hybrid multiple paired transistor/opamp design providing extremely low noise and excellent CMRR. -
Page 6: Controls, Switches And Indicators
TUBE MP, and that the adapter is held firmly in an electrical outlet. Never operate the TUBE MP or AC adapter in the rain or in wet locations. lf the AC adapter’s cord is ever cut, discontinue use and replace the adapter with a new one. -
Page 7: Safety Precautions
Phase Reverse/Norm Switch To set the phase of the TUBE MP’s output signal, adjust this switch. When the switch is in the Out position the output signal is normal. Depressing the switch reverses the phase of the output signal. In multi-microphone applications, mic placement can affect the phase of the signals If your sound is “thin”... -
Page 8: Warranty Information
Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (A R T) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. - Page 9 SERVICE The following information is provided in the unlikely event that your unit requires service. Be sure that the unit is the cause of the problem. Check to make sure the unit has power, all cables are connected correctly, and the cables themselves are in working condition. You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration.
-
Page 10: Specifications
SPECIFICATIONS Input Connections XLR (balanced), ¼-inchTS Output Connections XLR (balanced), ¼-inchTS Input Impedance XLR, ¼-inch 2K ohms, 840k ohms Output Impedance XLR, ¼-inch 600 ohms, 300ohms Maximum Input Level, XLR +14dBu Maximum Input Level, ¼-inch +22dBu Maximum Output Level, XLR +28dBu Maximum Output Level, ¼-inch +22dBu... - Page 12 E-mail: support@artproaudio.com © 2018 Applied Research & Technology TUBE MP Professional Tube Mic Preamp 1275004102...
