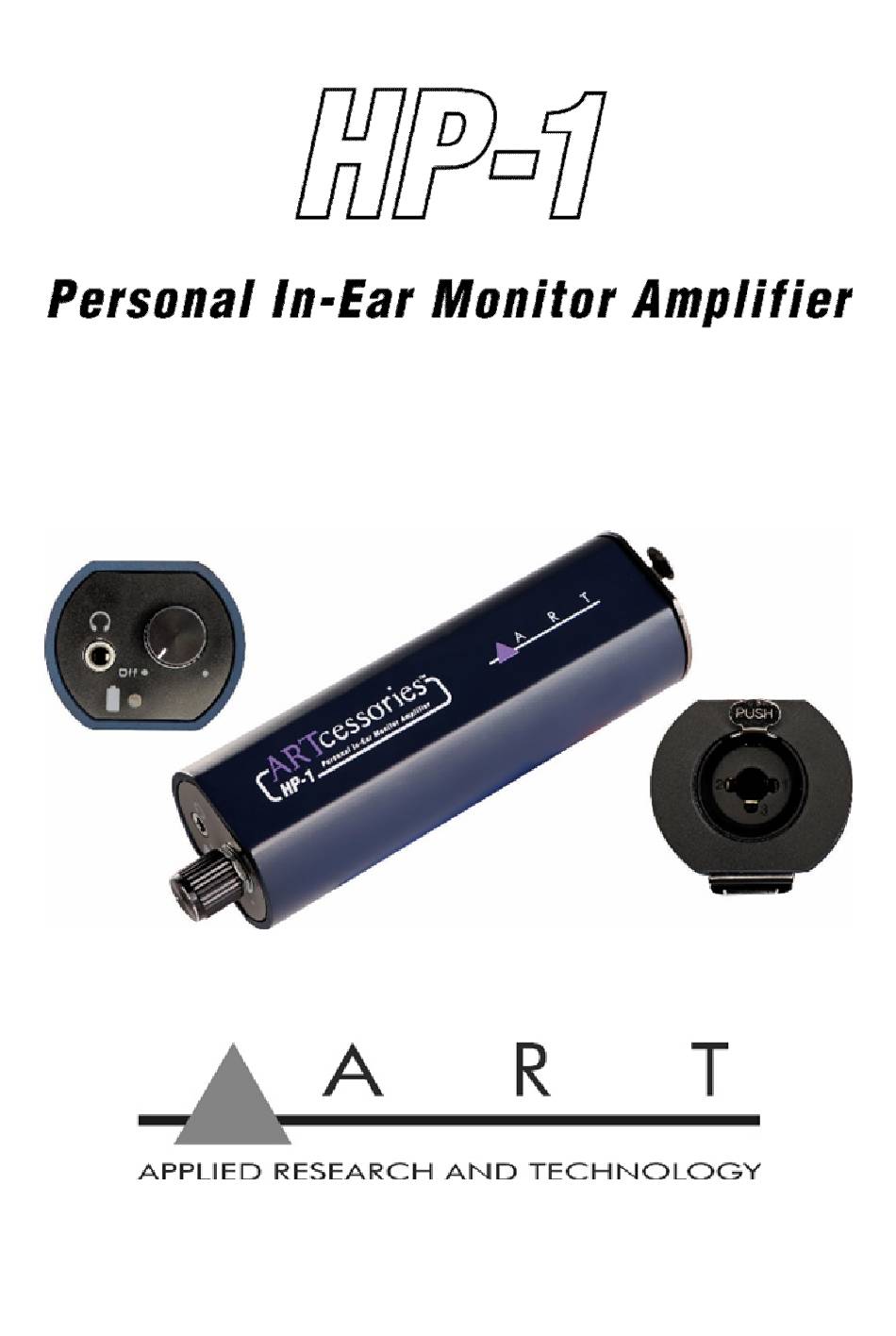

- Page 1 ARTcessories User's Manual...
-
Page 2: Important Safety Instruction - Read First

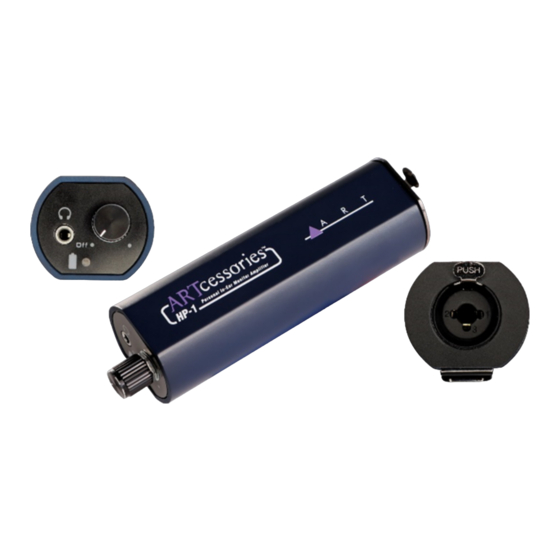

IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears alerts you to the presence of uninsulated dangerous voltage inside the enclosure-voltage that may be sufficient to constitute a risk of shock. This symbol, whenever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. - Page 3 With a locking 1/4”/XLR Combo input jack, sturdy belt clip and output volume control, it provides reliable performance both on and off the stage. The HP-1 provides a high output level when used with a variety of different headphones and is great for in-ear monitoring applications.
- Page 4 1. The locking Combo jack allows for a secure cable connection. The volume control adjusts the output level and acts as a power switch. To turn the HP-1 off, simply turn the volume pot fully counterclockwise, or remove your headphones from the output jack to preserve the battery life.
- Page 5 The switch should be set to mono when you are using the HP-1 with a mixer’s aux send or any other mono source (near battery position) and set to stereo when you are connected to a headphone output or other stereo sources...
-
Page 6: How To Install The Battery
HOW TO INSTALL THE BATTERY This button allows access to the battery compartment. Hold the RELEASE button down and slide the outer shell down toward the headphone jack to expose the unit’s interior. Insert the batteries into the battery compartment and slide the unit back into the shell. - Page 7 APPLICATIONS Perfect for: Live use, Project studios, Home and Commercial use!
-
Page 8: Warranty Information
Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (A R T) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. - Page 9 This warranty gives you specific rights and you may have other rights, which vary from state to state. For units purchased outside the United States, an authorized distributor of Applied Research and Technology will provide service Fill in the following information for your reference:...
- Page 10 SERVICE The following information is provided in the unlikely event that your unit requires service. Be sure that the unit is the cause of the problem. Check to make sure the unit has power, all cables are connected correctly, and the cables themselves are in working condition.
-
Page 11: Specifications
SPECIFICATIONS Input Connections Locking ¼”/XLR combo jack Input Impedance 5K Ohms Max Input level +6.6dBu Output Connections 3.5mm Jack (1/8”) Gain +9dB ≤ .02% @1kHz typ. Max Output 105mW @ 0.1% THD Typical run time 40 hrs. (Alkaline batteries) Power Requirements 2-AA batteries Included Dimensions (HxWxD) 5.4”x1.72”x1.6”... - Page 12 E-mail: support@artproaudio.com © 2022 Applied Research & Technology / Yorkville Sound HP1-5004-101 HP-1...
