arboga Palmgren 9680250 Operating Manual & Parts List

Gear head drill press foot reverse & power feed
Hide thumbs

Advertisement

Quick Links

Download this manual

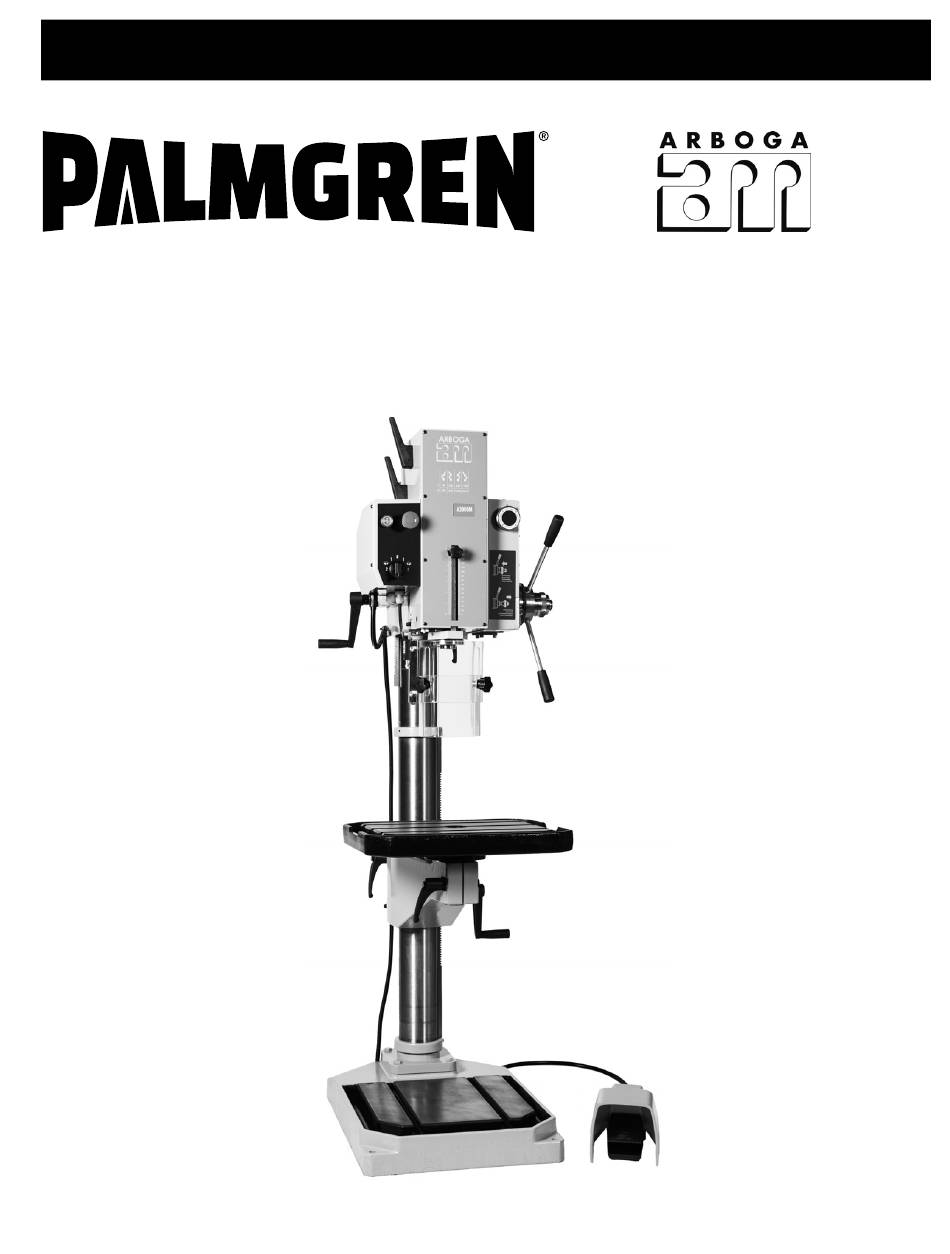

Operating Manual & Parts List
9680250 & 9680251
25˝ Gear Head Drill Press
9680250, 230v w/ foot reverse & power feed
9680251, 460v w/ foot reverse & power feed
Read carefully and follow all safety rules and operating
instructions before first use of this product.
964848101-0721

Advertisement

loading
Need help?

Need help?

Do you have a question about the Palmgren 9680250 and is the answer not in the manual?

Questions and answers

Related Manuals for arboga Palmgren 9680250

Summary of Contents for arboga Palmgren 9680250

  • Page 1 Operating Manual & Parts List 9680250 & 9680251 25˝ Gear Head Drill Press 9680250, 230v w/ foot reverse & power feed 9680251, 460v w/ foot reverse & power feed Read carefully and follow all safety rules and operating instructions before first use of this product. 964848101-0721...
  • Page 2 Palmgren. Palmgren will provide all WARNING: Using the machine incorrectly can cause serious sales, technical support and service for Arboga as well as any other accidents. The machine has to be installed, used and brand of Swedish gear head drilling machines.
  • Page 3 Palmgren Operating Manual & Parts List 9680250 & 9680251 SAFETY (CONTINUED) DESIGN AND FUNCTION DRILL HEAD AUTOMATIC FEED Figure 2a - Chuck guard (for machines within the EU). Figure 2b - Depth gauge (3). • Depth gauge and Depth gauge rod (3) must never be removed from the machine.
  • Page 4 Palmgren Operating Manual & Parts List 9680250 & 9680251 DESIGN AND FUNCTION (CONTINUED) • Make sure that the boring tool cone is well-cleaned. • Be sure that the machine is equipped with all necessary DRILL HEAD - ELECTROMAGNETIC FEED protections to comply with the CE directives. •...
  • Page 5 Palmgren Operating Manual & Parts List 9680250 & 9680251 DRILLING - AUTOMATIC FEED HANDLING WARNING: Use the lock handles to lock the drill head, table arm and the table. Make sure that the work piece is securely THREADING - MANUAL FEED fastened at the table.
  • Page 6 Palmgren Operating Manual & Parts List 9680250 & 9680251 HANDLING (CONTINUED) SETTING THE DRILL DEPTH First, set the machine fed drill depth, see figure 11: Figure 12 – Adjusting the feed switch. DRILL EJECTOR The machine is equipped with an automatic drill ejector. Between the nose of the spindle sleeve and the spindle case, there is a stopper that prevents the spindle from reaching its upper position.
  • Page 7 Palmgren Operating Manual & Parts List 9680250 & 9680251 MAINTENANCE LUBRICATION All ball bearings and gear wheels are lubricated at the factory. For OIL FILLING, FEED GEAR BOX other lubrication; check levels regularly and apply grease, if The machine is not supplied with oil in the power feed gearbox. necessary, see figure 17 and figure 18.
  • Page 8 Palmgren Operating Manual & Parts List 9680250 & 9680251 CORRECTIVE MAINTENANCE GENERAL WARNING: Disconnect the machine from the external mains before any dismantling takes place. On reassembly, see to it that all surfaces are clean and that any burrs, which may have been made during disassembly, are first removed. ADJUST THE TAPER BEARING PLAY The spindle is journaled in the quill by a taper roller bearing at the Figure 20 - Nut for adjusting the play of the quill.
  • Page 9 Palmgren Operating Manual & Parts List 9680250 & 9680251...
  • Page 10 Palmgren Operating Manual & Parts List 9680250 & 9680251...
  • Page 11 Palmgren Operating Manual & Parts List 9680250 & 9680251...
  • Page 12 Palmgren Operating Manual & Parts List 9680250 & 9680251...
  • Page 13 Palmgren Operating Manual & Parts List 9680250 & 9680251...
  • Page 14 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR DRILL HEAD Ref. Part Number Description Note 2V08621-1 Spindle housing 2X08618-B Gear box 2X08617 Spindle sleeve 2I08456 Feed shaft 2X08720-1R Worm gear unit 3R00014-1 Lock handle 2X08791-1 Electric box compl.
  • Page 15 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR GEAR BOX a) FRP5x24 (2x) b) MC6S8x70 (4x) c) MC6S6x20 (3x) Ref. Part Number Description Note 2X08561-B Motor shaft complete 2X08570R 2:nd shaft complete 2X08581R 3:rd shaft complete 2X08523-1 Gear box complete 4B00174 Ring...
  • Page 16 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR ENGINE SHAFT a) MC6S5x10 (4x) b) MF6S8x14 c) MC6S4x8 (2x) Ref. Part Number Description Note 4B00137 Washer 3L15003 Ball bearing 6203-2RS (3x) 2H08562 Gear 17-1,5 2H08563 Gear 40-2 2D00008 Spacing sleeve 17x6,5 3K01196...
  • Page 17 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR SECOND SHAFT Ref. Part Number Description Note 4B00138 Cover 3L15003 Ball bearing 6203-2RS (2x) 2D00002 Spacing sleeve 17x2,5 2H08572 Gear 34-2 2A04871 2:nd shaft C-4871 3K01187 RK 5x5x20 (2x) 2T06615 C-6615 3B11005...
  • Page 18 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR THIRD SHAFT Ref. Part Number Description Note 4B08584 Cover C-138 3L15002 Ball bearing 6302 3B01184 Ring 15x22x1 3C01117 Circlip SgA 15 2X08582R Gear compl. 39-2 (fiber) 2T04254 Clutch C 4254 2X08583R Gear compl.
  • Page 19 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR SPINDLE SLEEVE MF6S5x20 MC6S5x10 MC6LS5x10 SK6SS 6x8 (3x) MC6S6x20 Esloc Ref. Part Number Description Note 2X08529R Spindle sleeve compl. 3M06005 3B07005 Locking washer 3L15005 Ball bearing 6205 2G08529 Quill 4I08754 Rack 4B03769...
  • Page 20 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR POWER FEED BOX 20 20...
  • Page 21 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR POWER FEED BOX (CONTINUED) Ref. Part Number Description Note 2I08639 Worm shaft feed box 3C02133 Circlip SGH 35 3L40002 Bearing 3202 3C01117 Circlip SGH 15 2T08555 Bearing housing 3S03370 Screw MC6S 6x20 (3x) 2A08541...
  • Page 22 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR FEED SHAFT 11 12 f) P6SS8x10 a) SgA25 g) SgA22 b) MF6S4x14 c) MC6S5x6 h) P6SS10x10 j) Wk5x22 d) MC6S6x35 e) SK6SS6x8 Ref. Part Number Description Note 4XS2150R Return spring 2l08456 Feed shaft 4S04211...
  • Page 23 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR COLUMN a) MC6S12x90 b) MC6S6x10 c) SK6SS6x12 (3x) d) Locknut M12 e) BRB13x24x2 (3x) f) M6S12x120 (1x), M6S12x130 (1x) g) M6S12x40 (4x) Ref. Part Number Description Note 4W03040 Base plate 9X08543 Column 2X08730R...
  • Page 24 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR COLUMN BENCH TYPE DRILL a) M6S12x40 (4x) b) MC6S6x10 Ref. Part Number Description Note 4W03040 Base plate 4X08543-1 Column 2X08545 Rack 2T07146...
  • Page 25 Palmgren Operating Manual & Parts List 9680250 & 9680251 PARTS FOR WORM GEAR BOX COMPLETE MC6S6x25 (4x) Lub.nipple Ø6 (2x) Ref. Part Number Description Note 2N08720R Worm gear box 2A08725 Shaft 4HS1201 Gear 2IS1203-2 Worm shaft 3L00027 Washer AS 2035 3L00025 AXK 2035 3L00028...
  • Page 26 Palmgren Operating Manual & Parts List 9680250 & 9680251 NOTES...
  • Page 27 Palmgren Operating Manual & Parts List 9680250 & 9680251 NOTES...
  • Page 28 PALMGREN WARRANTY C.H. Hanson / Palmgren warrants their products to be free of defects in material or workmanship. This warranty does not cover defects due directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or used for a purpose other than that for which is was intended.

This manual is also suitable for:

Palmgren 9680251
