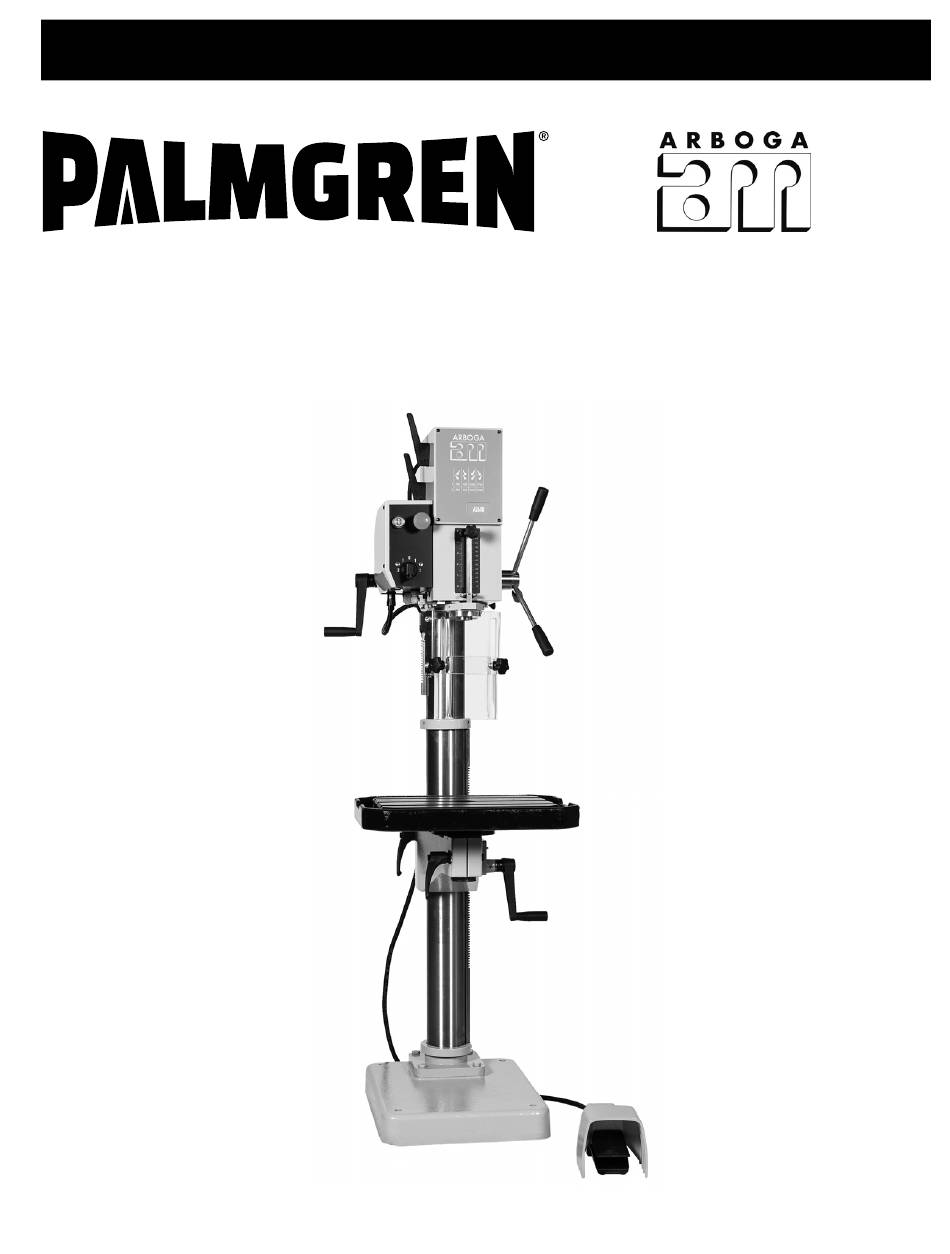

- Page 1 Operating Manual & Parts List 9680243 & 9680244 20˝ Gear Head Drill Press 9680243, 230v with foot reverse 9680244, 460v with foot reverse Read carefully and follow all safety rules and operating instructions before first use of this product. 964847701-0721...
- Page 2 Palmgren. Palmgren will provide all WARNING: Using the machine incorrectly can cause serious sales, technical support and service for Arboga as well as any other accidents. The machine has to be installed, used and brand of Swedish gear head drilling machines.
- Page 3 Palmgren Operating Manual & Parts List 9680243 & 9680244 SAFETY (CONTINUED) DESIGN AND FUNCTION Figure 2a - Chuck guard (for machines within the EU). Figure 2b - Depth gauge (3). • Depth gauge and Depth gauge rod (3) must never be removed from the machine.
- Page 4 Palmgren Operating Manual & Parts List 9680243 & 9680244 DESIGN AND FUNCTION (CONTINUED) SPECIFICATIONS DRILL HEAD - MANUAL FEED 9680243 9680244 Swing 20" 20" Column 3.94" 3.94" Max drill size 1" 1" Max tap size 5/8", 3/4" 5/8", 3/4" Arbor Chuck 3/4", JT4 3/4", JT4...
- Page 5 Palmgren Operating Manual & Parts List 9680243 & 9680244 2) There are 2 different ways to reverse the spindle rotation of the HANDLING machine • Reversing using the switch/speed selector (2), see “Reversing MANUAL FEED by using the switch/speed selector” . WARNING: Use the lock handles to lock the drill head, table •...
- Page 6 Palmgren Operating Manual & Parts List 9680243 & 9680244 DRILL EJECTOR (CONTINUED) CLEANING EXPELLER WEDGE • Always make sure that the boring tool tongue and cone are well- The boring tool may become stuck in the spindle, e.g., via hard cleaned and not damaged.
- Page 7 Palmgren Operating Manual & Parts List 9680243 & 9680244 CORRECTIVE MAINTENANCE GENERAL WARNING: Disconnect the machine from the external mains before any dismantling takes place. On reassembly, see to it that all surfaces are clean and that any burrs, which may have been made during disassembly, are first removed. ADJUST THE TAPER BEARING PLAY The spindle is journaled in the quill by a taper roller bearing at the Figure 20 - Nut for adjusting the play of the quill.
- Page 8 Palmgren Operating Manual & Parts List 9680243 & 9680244...
- Page 9 Palmgren Operating Manual & Parts List 9680243 & 9680244...
- Page 10 Palmgren Operating Manual & Parts List 9680243 & 9680244...
- Page 11 Palmgren Operating Manual & Parts List 9680243 & 9680244...
- Page 12 Palmgren Operating Manual & Parts List 9680243 & 9680244...
- Page 13 Palmgren Operating Manual & Parts List 9680243 & 9680244 NOTES...
- Page 14 Palmgren Operating Manual & Parts List 9680243 & 9680244 PARTS FOR DRILL HEAD Ref. Part Number Description Note 2V087013 Spindle housing 2X08404 Gear box 2X08710R Spindle sleeve compl. 2X08752R Feed shaft compl. 2X087201R Worm gear unit 3P01407 CP 8x36 2X087911 Electric box compl.
- Page 15 Palmgren Operating Manual & Parts List 9680243 & 9680244 PARTS FOR GEAR BOX a) FRP5x24 (2x) b) MC6S8x70 (4x) c) MC6S6x20 (4x) Ref. Part Number Description Note 2X084041R Motor shaft complete 2X084042R 2:nd shaft complete 2X084043R 3:rd shaft complete 2X08422 Feed shaft complete 4B00174 Ring...
- Page 16 Palmgren Operating Manual & Parts List 9680243 & 9680244 PARTS FOR ENGINE SHAFT MC6S5x10 (4x) MF6S8x MC6S4x8 (2x) Ref. Part Number Description Note 4B00137 Washer 3L15003 Ball bearing 6203-2RS (3x) 2H07969 Gear 15-1,5 2D17014 Spacing sleeve 17x14 2D17003 Spacing sleeve 17x3 2H07972R Gear...
- Page 17 Palmgren Operating Manual & Parts List 9680243 & 9680244 PARTS FOR SECOND SHAFT Ref. Part Number Description Note 4B00138 Washer 3L15003 Ball bearing 6203-2RS (2x) 2D00009 Spacing sleeve 17x3,5 2H07971 Gear 32-2 (fiber) 3B11005 Washer 17x24x1 2A04871 2:nd shaft C-4871 3K01187 RK 5x5x20 (2x) 2T06615...
- Page 18 Palmgren Operating Manual & Parts List 9680243 & 9680244 PARTS FOR THIRD SHAFT Ref. Part Number Description Note 4B08584 Cover 3L15002 Ball bearing 6302-2RS 2D15002 Spacing sleeve 15x2 3C01117 Circlip SgA 15 2X08413R Gear compl. 32-2 2T04254 Clutch C 4254 2X08411R Gear compl.
- Page 19 Palmgren Operating Manual & Parts List 9680243 & 9680244 PARTS FOR SPINDLE SLEEVE a) MC6S5x10 + FBB5.1 b) MF6S5x20 c) MLC6S5x10 + FBB5.1 d) GN615.2 P M6 e) MC6S6x20 Esloc Fzb Ref. Part Number Description Note 2X08710R Spindle sleeve compl. 3M06005 3B07005 Locking washer...
- Page 20 Palmgren Operating Manual & Parts List 9680243 & 9680244 PARTS FOR FEED SHAFT a) P6SS10x10 b) Lub.nippel Ø6 Ref. Part Number Description Note 4XS2150R Return spring 2I08752 Feed shaft 4S04211 Pin screw 4E08758R Feed lever complete ACCESSORIES Part Number Description Notes 9612401 Milling vise...
- Page 21 Palmgren Operating Manual & Parts List 9680243 & 9680244 PARTS FOR COLUMN a) M6S12x90 b) MC6S6x10 c) SK6SS6x12 (3x) d) Locknut M12 (2x) e) TBRB13x24x2 (3x) f) M6S12x130 (2x) g) M6S12x40 (4x) Ref. Part Number Description Note 9W07802 Base plate 9X08300 Column L=1500...
- Page 22 Palmgren Operating Manual & Parts List 9680243 & 9680244 PARTS FOR COLUMN BENCH TYPE DRILL a) M6S12x40 (4x) b) MC6S6x10 Ref. Part Number Description Note 9WS12361 Base plate 9ZS12321 Column 2X08545 Rack 4T07146...
- Page 23 Palmgren Operating Manual & Parts List 9680243 & 9680244 PARTS FOR WORM GEAR BOX COMPLETE a) MC6S6x25 (4x) b) Lub.nipple Ø6 (2x) Ref. Part Number Description Note 2N08720R Worm gear box 2A08725 Shaft 4HS1201 Gear 2IS12032 Worm shaft 3L00027 Washer AS 2035 3L00025 AXK 2035...
- Page 24 PALMGREN WARRANTY C.H. Hanson / Palmgren warrants their products to be free of defects in material or workmanship. This warranty does not cover defects due directly or indirectly to misuse, abuse, normal wear and tear, failure to properly maintain the product, heated, ground or otherwise altered, or used for a purpose other than that for which is was intended.
