- Page 1 NEW M6 & M8 SERIES Owner’s Manual...
- Page 2 UandKSound was founded in 2015 with a clear goal: to deliver high quality products with the best value for money. Today, all UandKSound products are designed in Europe and carefully crafted to deliver a level of performance that stands above expectations.

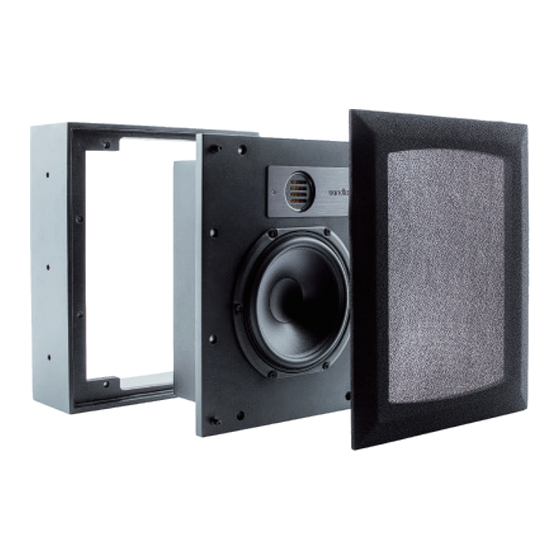

- Page 3 M6 SERIES SLIM AS OUR MOTTO ! Following a similar concept to the M8 Series, the new M6 Series can be wall mounted or flush mounted to the wall as a benefit to UandK- Sound’s recently redesigned extra slim cabinet, specifically enginee- red for custom installation.
-
Page 4: Models And Features
MODELS AND FEATURES M620N FEATURES 1. Extra slim body measured at only 12.0cm/4.75” in thickness 2. UandKSound authentic air suspension technology that delivers deeper bass with low distortion 3. Three-way sealed enclosure, 12dB/oct makes sound performance more precise. 4. The new M6, M8 series tweeter uses Air Motion Transformer technology to make the sound leap forward. - Page 5 MODELS AND FEATURES M610N FEATURES 1. Extra slim body measured at only 12.0cm/4.75” in thickness 2. UandKSound authentic air suspension technology that delivers deeper bass with low distortion 3. Three-way sealed enclosure, 12dB/ oct makes sound performance more precise. 4. The new M6, M8 series tweeter uses Air Motion Transformer technology to make the sound leap forward.
- Page 6 FEATURES 1. Sleek design perfect for in-wall installation that blends seamlessly into your home 2. Sturdy wooden enclosure featuring UandKSound signature acous- tic suspension design, ensures an extensive low bass with minimal distortion 3. UandKSound authentic air suspension technology that delivers deeper bass with low distortion 4.
- Page 7 FEATURES 1. Sleek design perfect for in-wall installation that blends seamlessly into your home 2. Sturdy wooden enclosure featuring UandKSound signature acous- tic suspension design, ensures an extensive low bass with minimal distortion 3. UandKSound authentic air suspension technology that delivers deeper bass with low distortion 4.
- Page 8 SUB AMP POWER Built-in 2400 Watt class D Amplifier ENCLOSURE Fully engineered, MDF enclosure. Oriented design. Powered subwoofer FINISHES UandKSound basic finishes are available for this product. The standard finish for this product is matte black paint. WEIGHT 30.27 kg WWW.UANDKSOUND.COM...
-
Page 9: Power Mode
When using an amplifier with an audio source that is mono and prefiltered, the LFE input should be used; this bypasses the onboard low pass crossover for more accurate repro- duction of the incoming signal. WWW.UANDKSOUND.COM... -
Page 10: Level Control
AC POWER INPUT PLUG Connect supplied power cord here. Make all other connections to the subwoofer before connecting the power cord to a wall outlet. AC MAINS SWITCH This switch will connect/disconnect AC power to/from the subwoofer. WWW.UANDKSOUND.COM... - Page 11 If this solves the problem, install a coaxial line isolator, and reconnect the system. In the worst case, a line level audio isolator/transformer connected to the line in of the subwoofer amplifier will usually solve the problem. WWW.UANDKSOUND.COM...
- Page 12 M8 SERIES STATE OF ART REDEFINED After intensive studies UandKSound has completed a new step to renew its flagship reference models. As always, M8 Series components are carefully selected and only those conforming to tightly defined tolerances are ultimately used. Meticulous care and attention is given to the production of the crossover network which, along with the louds- peakers, is of fundamental importance to the quality of the diffusers.
- Page 13 MODELS AND FEATURES M850N FEATURES 1. Extra slim body measured at only 13.5cm/5.3” in thickness 2. UandKSound authentic air suspension technology that delivers deeper bass with low distortion 3. Three-way sealed enclosure, 12dB/oct makes sound performance more precise. 4. The new M6, M8 series tweeters use Air Motion Transformer technology to make the sound leap forward.
- Page 14 FEATURES 1. Sleek design perfect for in-wall installation that blends seamlessly into your home 2. Sturdy wooden enclosure featuring UandKSound signature acous- tic suspension design, ensures an extensive low bass with minimal distortion 3. UandKSound authentic air suspension technology that delivers deeper bass with low distortion 4.
- Page 15 SUB AMP POWER Built-in 2400Watt Class D Amplifier ENCLOSURE Fully engineered, MDF enclosure. Oriented design. Powered subwoofer. FINISHES UandKSound basic finishes are available for this product. The standard finish for this product is black matte paint. WEIGHT 44.5 kg WWW.UANDKSOUND.COM...
- Page 16 The adjustable crossover is in effect when using the left or right inputs. When using an amplifier with an audio source that is mono and prefiltered, the LFE input should be used; this bypasses the onboard low pass crossover for more accurate reproduction of the incoming signal. WWW.UANDKSOUND.COM...
- Page 17 AC POWER INPUT PLUG Connect supplied power cord here. Make all other connections to the subwoofer before connecting the power cord to a wall outlet. AC MAINS SWITCH This switch will connect/disconnect AC power to/from the subwoofer. WWW.UANDKSOUND.COM...
- Page 18 If this solves the problem, install a coaxial line isolator, and reconnect the system. In the worst case, a line level audio isolator/transformer connected to the line in of the subwoofer amplifier will usually solve the problem. WWW.UANDKSOUND.COM...
- Page 19 LOUDSPEAKERS TECHNICAL SHEETS WWW.UANDKSOUND.COM...
- Page 20 10: M600-IW 15 degree test 12: M600-IW 45 degree test 11: M600-IW 30 degree test If you precise more technical information or detailed laboratory measurements please do not hesitate contact us through info@uandksound.com, our team will be happy to assist you...
- Page 21 15: M610-IW 30 degree test 14: M610-IW 15 degree test 16: M610-IW 45 degree test If you precise more technical information or detailed laboratory measurements please do not hesitate contact us through info@uandksound.com, our team will be happy to assist you...
- Page 22 19: M610-N 30 degree test 18: M610-N 15 degree test 20: M610-N 45degree test If you precise more technical information or detailed laboratory measurements please do not hesitate contact us through info@uandksound.com, our team will be happy to assist you...
- Page 23 21: M620-N 0 degree test 23: M620-N 30degree test 24: M620-N 45degree test 22: M620-N 15 degree test If you precise more technical information or detailed laboratory measurements please do not hesitate contact us through info@uandksound.com, our team will be happy to assist you...
- Page 24 5: M820-IW 0 degree test 8: M820-IW 45degree test 6: M820-IW 15 degree test If you precise more technical information or detailed laboratory measurements please do not hesitate contact us through info@uandksound.com, our team will be happy to assist you...
- Page 25 19: M850-N 30 degree test 24: M850-N 45 degree test 14: M850-N 15 degree test If you precise more technical information or detailed laboratory measurements please do not hesitate contact us through info@uandksound.com, our team will be happy to assist you...
-
Page 26: Warranty Information
WARRANTY INFORMATION UandKSound products are constructed by industry experts and are thoroughly tested before shipment. UandKSound passive products are warranted for a period of five (5) years and active electronics, three (3) years. This warranty is limited to manufacturer defects, either in materials or workmanship. - Page 27 Thanks for purchasing our products. Please contact your nearest official distributor to know more details about the warranty conditions and installation best practices. You can also contact us by visiting:...
