Urban Barn Tremblant 223760 Assembly Instructions

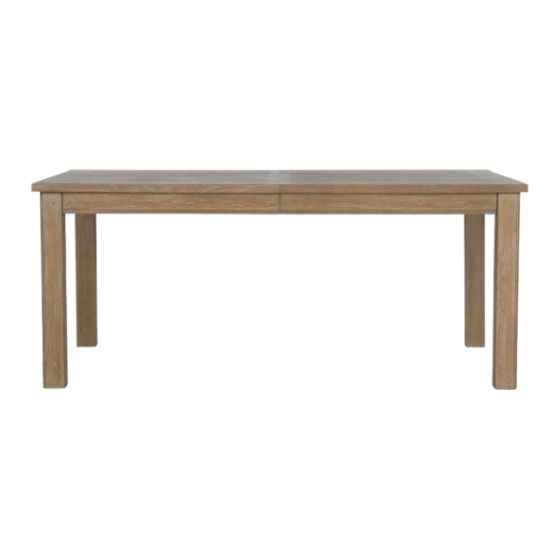

Tremblant Ext Dining Table
a
Table rallonge Tremblant
Assembly Instructions/ Instructions d'assemblage
Box #1 / Boite 1
A. Table Top / Dessus de table
B. Table Leg / Patte
Hardware Packed in Box # 1 / Quincaillerie incluse dans la boite 1
No Description
ALLEN BOLT (5/16"x2-1/2")
BOULON ALLEN (5/16"xl-3/4")
SPRING WASHER (5/16")
2
RO ND ELLE D'ARRET ( 5/16")
FLATWASHER(5/16")
3
RONDELLE PLATE ( 5/16")
4 ALLEN KEY
CLE ALLEN
Step 1:
Etape 1 :
Tool required: Phillips-head screwdriver (not provided)
Outil requis : toumevis
Parts Packing Configurations / Pièces
x1
Quantity
Quantite
�
x8
x8
@)
@
x8
=,
xl
a
tete etoilee (non foumi)
Dining Table Fully Assembled
Table a rallonge assemblee
Step 2:
Etape 2 :
URBAN
BARN
B
�
K 1/2
