KNOWLEDGE BASE:
Framing
Plumbing
• Confirm that your model will fit in intended location and plumbing fixtures are located where
required before beginning installation.
• Walls and sub-floor must be solid, plumb, and square.
• Do not install in areas where temperature may drop below 32ºF (0ºC).
• Allow product to reach room temperature for 30 minutes before installation.
These instructions include suggestions for rough construction and plumbing installation.
Local building codes vary and could supersede those suggestions. If you are not confident
in your ability to perform these tasks, contract out those tasks you need help with or use a
professional installer.
BASE DE CONOCIMIENTOS:
Encuadrado
Plomería
• Verifique que su modelo quepa en la ubicación deseada y que los accesorios de fontanería se
encuentren donde sea necesario antes de iniciar la instalación.
• Las paredes y el contrapiso deben estar firmes, nivelados y en escuadra.
• No realice la instalación en áreas donde la temperatura pueda ser inferior a 32°F (0 °C).
• Deje que el producto alcance la temperatura ambiente durante 30 minutos antes de la instalación.
Estas instrucciones incluyen sugerencias para construcciones sin acabar e instalación de
cañerías. Los códigos locales de construcción varían según el lugar y tienen prioridad sobre
estas sugerencias. Si no se siente capaz de realizar estas tareas, tercerícelas o contrate un
instalador profesional.
BASE DE CONNAISSANCES:
Encadrement
Plomberie
• Avant de débuter l'installation, assurez-vous qu'il y a suffisamment d'espace pour le modèle que
vous voulez installer et que la plomberie est située au bon endroit.
• Les murs et le faux-plancher doivent être solides, de niveau et d'équerre.
• N'installez pas le produit à un endroit où la température peut descendre sous 32 ºF (0 ºC).
• Attendez 30 minutes avant d'installer le produit pour que celui-ci soit à la température ambiante.
Estas instrucciones incluyen sugerencias en la construcción preliminar y la instalación de la
plomería. Los códigos locales varían de un lugar a otro y pueden tomar prioridad a estas
sugerencias. Si usted no está seguro de su habilidad para realizar estas tareas, subcontrate
en las que necesita ayuda o use un instalador profesional.
NOTICE
AVISO
AVIS

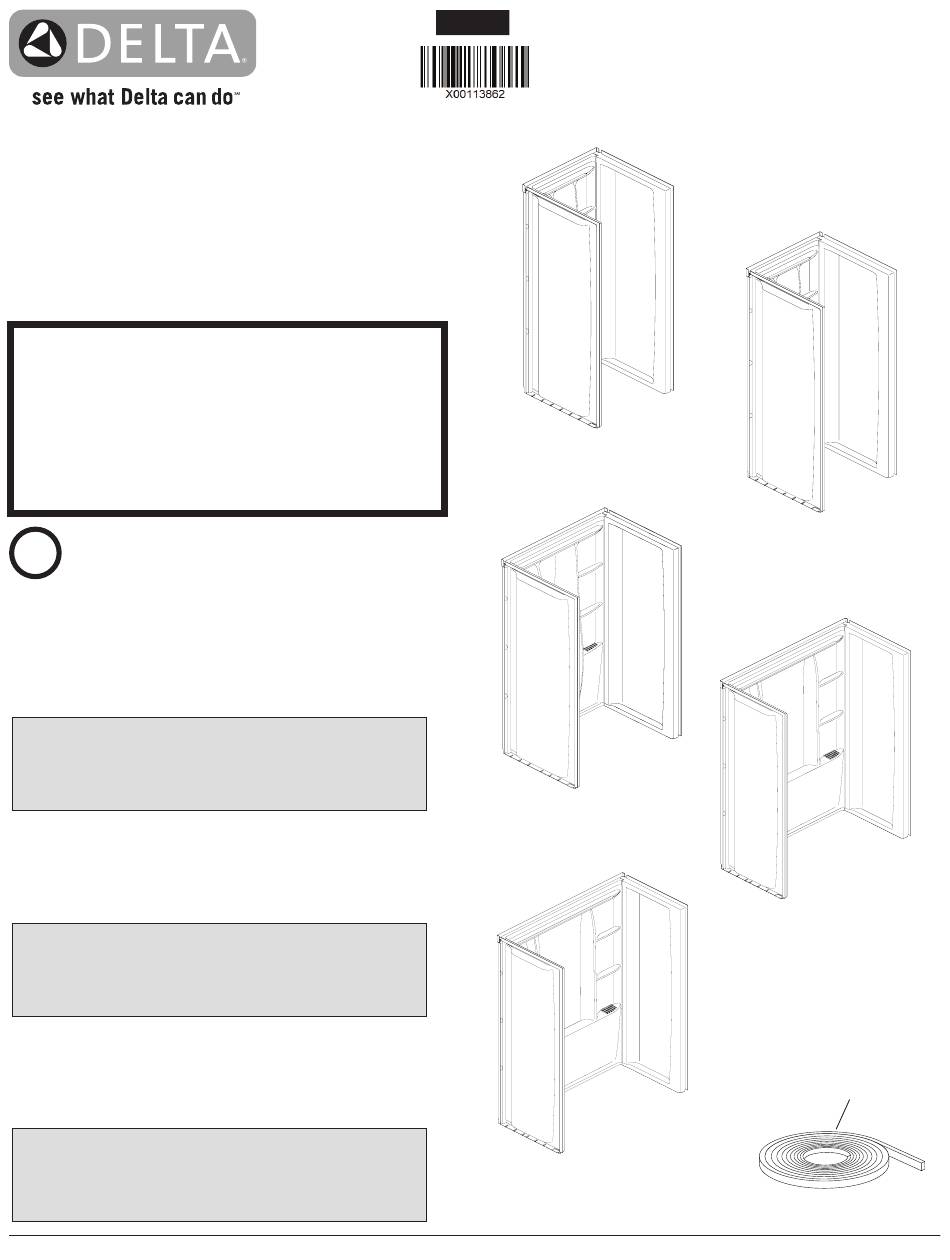

DIRECT-TO-STUD SHOWER WALL SET
113862
CONJUNTO DE PARED DE TINA
DIRECTA AL MONTANTE
ENSEMBLE MURAL POUR BAIGNOIRE
FIXÉE AUX MONTANTS
B12205-3232-WH
B12207-3232-WH
B12208-3232-WH
B12205-4834-WH
B12207-4834-WH
B12208-4834-WH
B12205-6032-WH
B12207-6032-WH
B12208-6032-WH
1
B12205-3636-WH
B12207-3636-WH
B12208-3636-WH
B12205-6030-WH
B12207-6030-WH
B12208-6030-WH
RP103265
Foam Strip
Tira de espuma
Bande de mousse
08/02/2022 Rev. A
