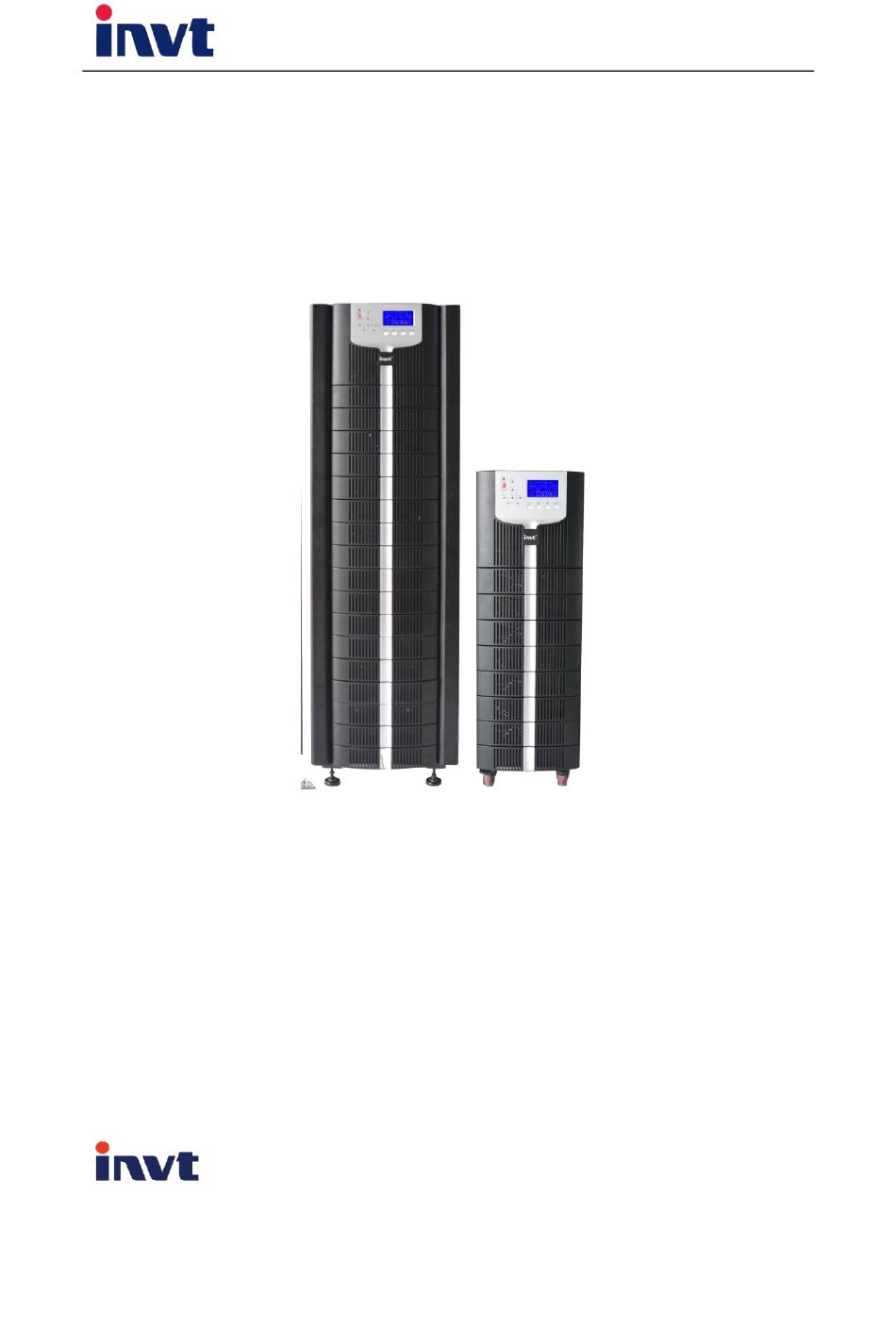

- Page 1 Maintenance Manual for HT33010-15XL/XS INVT Power System Power Solution Specialist INVT POWER SYSTEM (SHENZHEN) CO.,LTD 第 1 页 共 21 页...
- Page 2 Safety Instruction This manual contains important information on safe operation of the UPS. Please carefully read this manual prior to operation. Service personnel should understand all the information on warning and operate according to the instruction. 警告 危 险...
-
Page 3: Table Of Contents
目录 Product structure ........................4 1.1 Outlook ..........................4 1.2 LCD Panel .......................... 4 1.3 Inner structure ........................6 Topology and Operational principle ..................8 2.1 Topology ..........................8 2.2Operational principle ......................9 Components introduction ..................... 10 3.1 Control board ........................10 3.2 Input board ........................ -
Page 4: Product Structure
1. Product structure 1.1 Outlook Buzzer Operational Button RS232 SNMP Ventilation panel Battery Cold Start RS485 Maintenance CB Bypass Input CB Parallel Board Main input CB Output CB Contact Protective Connection terminal Cover Fig.1-1 System outlook (Long backup type) 10/15kVA Fig.1-2 connections terminals for 10/15kVA... - Page 5 The LCD panel for cabinet is divided into three functional areas：LED indicator， control and operation keys and LCD screen. After the monitoring system starts self-test, the system enters the home page, following the welcome window. The home page is shown in Fig.1-4.
-
Page 6: Inner Structure
1.3 Inner structure The HT33010XL/XS and the HT33015XL/XS are similar in structure. Consisting of follow parts: control PCB, input PCB, rectifier PCB, bus fuse PCB, inverter PCB, output PCB, bypass PCB, input EMI PCB, battery EMI and lightning protection PCB. - Page 7 Fig.1-6 Inner structure (b) Fig.1-7 Inner structure (c) Battery EMI and lightning protection PCB 第 7 页 共 21 页...
-
Page 8: Topology And Operational Principle
2. Topology and Operational principle 2.1 Topology The topology is shown in Fig.2-1 and Fig.2-2. Fig.2-1 HT33010XL Topology Fig.2-2HT33010XL Topology 第 8 页 共 21 页... -
Page 9: Operational Principle
2.2Operational principle The input AC sine wave is transferred to DC bus voltage of 400VDC by rectifier with PFC technology. The process is as following: the main AC input is filtered by the LC and rectified by SCR (HT33010XL/XS is rectified by relays and diodes), then the source is boosted to 400VDC by the booster consisting of rectifier IGBT, inductance and capacitors. -
Page 10: Components Introduction
3. Components introduction 3.1 Control board The detailed introduction of control board is shown in Fig.3-1 1. power source from control board 2. fans detect 3. fans socket 4. power supply for fans 5. SNMP port 6. parallel port 7. -
Page 11: Rectifier Board
SCR drive, Battery voltage detect, Input voltage detect Power supply for relay Input A Input B Input C Battery Positive Battery Negative Common neutral Power source from bus Power supply for aux power Utility Battery SCR (The switch for... -
Page 12: Inverter Board
3.4 Inverter board The detailed introduction of inverter board is shown in Fig.3-4 Inverter IGBTs Inverter drive 15V power source Fig.3-4 Inverter board introduction 3.5 Output board The detailed introduction of output board is shown in Fig.3-5 Power supply for... -
Page 13: Bypass Scr Board
3.6 Bypass SCR board The detailed introduction of bypass SCR board is shown in Fig.3-6 OUT-A Bypass SCR OUT-C OUT-B Bypass EMI Bypass A Bypass B Bypass C Power supply for aux board Power supply for fan Fan socket... -
Page 14: Battery Emi And Lightning Protection Board
Input and bypass EMI MAIN-C1 MAIN-A2 MAIN-B1 MAIN-B2 MAIN-A1 MAIN-C2 Neutral Neutral BYP-A2 BYP-B1 BYP-B2 BYP-C2 BYP-A1 BYP-C1 Fig.3-7 Input EMI board introduction 3.8 Battery EMI and lightning protection board The detailed introduction of Battery EMI and lightning protection board board is shown in Fig.2-8... -
Page 15: Detection
4. Detection 4.1 Detection of the fuse Detect the resistance of the fuses. If the resistance is less than 1ohm, it means the fuses work well. If the resistance is infinite or no value, the fuses should be damaged. -
Page 16: Detection Of Rectifier Igbt
4.2 Detection of rectifier IGBT Switch the multimeter to Diode Chanel and test the voltage drop of the rectifier IGBT(shown in figure 5-2), the normal value should be 0.35V～0.45V. The procedures of testing rectifier IGBT of phase A are shown in Fig.4-4 and Fig.4-5. -
Page 17: Output Relay Detection
4.4 Output relay detection Check the resistance of the relay between the input terminal and the fuse, as shown in Fig.4-8 following figure with red marks. If the resistance is infinite or no value, the relays should be OK. - Page 18 Fig.4-9 detection resistors (a) Inverter voltage DC component Output voltage Output voltage detection detection detection detection Fig.4-10 detection resistors (b) Bus voltage detection Fig.4-11 detection resistors (c) 第 18 页 共 21 页...
-
Page 19: Drive Test
4.5 Drive test For the drive test, firstly short the SERVICE, as shown in Fig.4-12. And then power on the control board and connect to the power board, as shown in Fig.4-13. 24V dc power short Fig.4-12 short SERVICE Fig.4-13 power for control board... -
Page 20: Maintenance
The signal wave of inverter IGBT is shown in Fig.4-16. There are 12 IGBTs, as shown in Fig.4-17. Fig.4-15 the signal wave of inverter IGBT Fig.4-14 inverter IGBT distribution 5. Maintenance 5.1 Trouble-shooting When the ups fault, please do the following preparations and contact to our after service engineer. -
Page 21: Common Faults And Maintenance
5.2 Common Faults and Maintenance The common faults and solution is shown in Table.5-1. Table 5-1 common faults and maintenance Common faults Solution and Maintenance Input Grid Neutral Lost Put on the output breaker, and turn on the ups again.
