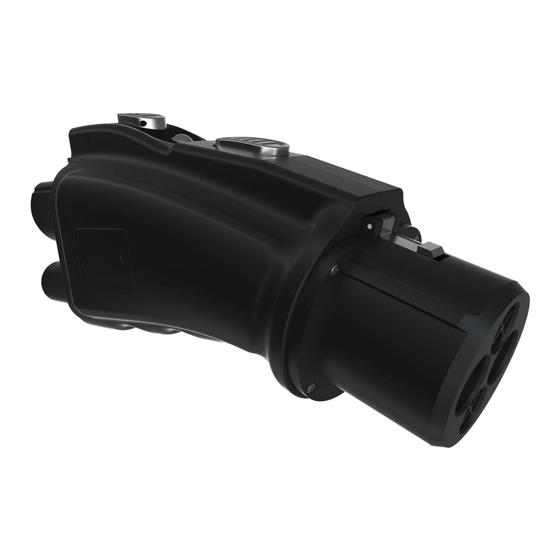

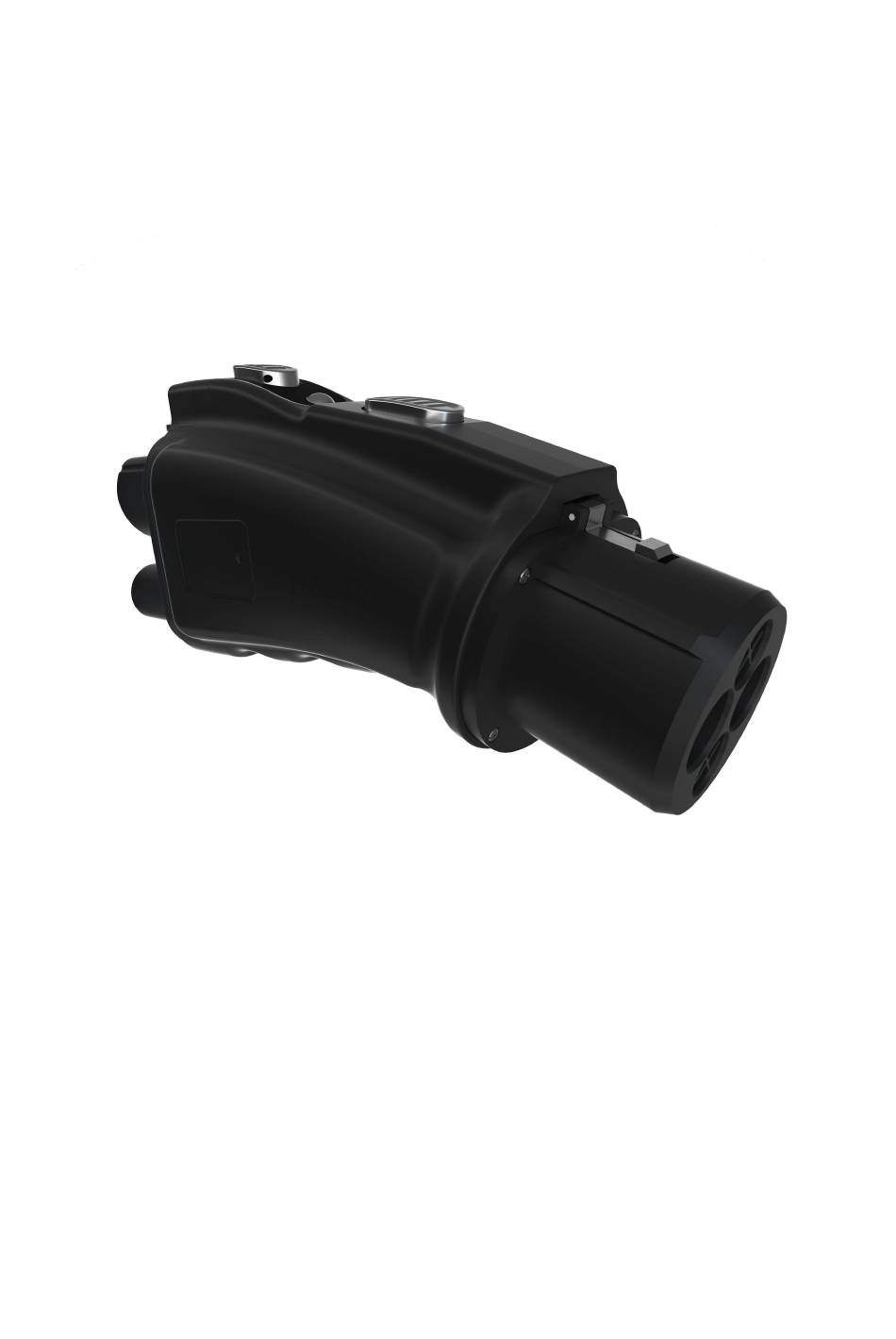

- Page 1 CCS2 To CHAdeMO Adapter User Manual (1.0)
-
Page 2: Main Parameters
Main Parameters: Parameter Specification Rated Current 250A Max Rated Voltage 1000VDC Max Contact Impedance 0.5 mΩ Max Fireproof Grade of Rubber UL94V-0 Shell Waterproof Grade IP54 (mating) Plastic Shell Thermoplastic plastic Conductor Copper alloy, silver plated surface Working Environment -30°C - +50°C (-22°F - 122°F) Temperature Terminal Temperature Rise <50K... - Page 3 Included in the package: Adapter * 1 Type-C cable * 1 USB flash drive * 1...
-
Page 4: How To Use
How to Use: CHAdeMO Car CCS2 Charging Station 1. Ensure your CHAdeMO vehicle is in "P" (park) mode and the instrument panel is turned off. Then, open the DC charging port on your vehicle. 2. Plug the CHAdeMO connector into your CHAdeMO vehicle. 3. -
Page 5: Warranty
place. The adapter features distinct "keyways" designed to align with the corresponding tabs on the cable. 4. Turn on the CCS2 To CHAdeMO adapter (long press 2-5 seconds to power on). 5. Follow the instructions displayed on the CCS2 charging station's interface to start the charging process. - Page 6 C a u t i o n s ▲ Do not use this product if there is any damage to the EV cable, the vehicle connector, or the vehicle inlet. ▲ Avoid dismantling, dropping, or heavy impact on the adapter. ▲...
- Page 7 Software Upgrade Steps: Items to Prepare: 1. Type C-USB transmission cable * 1 2. USB flash drive without files * 1...
- Page 8 Operating Steps: 1. Store the upgrade file with a .UPG suffix on an empty USB flash drive. Then follow the steps below to upgrade the device with the latest software provided by the distributor. NOTE:MAIN_CCS2CHAdeMO_1.UPG (Universal version) 2. Open the soft rubber case at the bottom of the product. 3.
- Page 9 Download Charging Status Log Files Steps: 1. Prepare an empty USB flash drive. 2. Insert the USB flash drive into the USB cable adapter and then press the power switch, the light will flash for 2 seconds and then shut down automatically. The last charging status log file is successfully downloaded.
- Page 10 Battery Assembly Instructions: Tools Required: Crosshead screwdriver (Size: 4.0mm) 18650 battery (one end protruding)
- Page 11 Assembly Steps: 1. Use the crosshead screwdriver to unscrew the screws securing the battery compartment. 2. Insert the battery into the compartment, ensuring that the protruding end faces outward. Check that the connection of the battery cover is secure, as indicated in Figure. 3.
- Page 12 How to Charge the Adapter's Battery: Notes: The adapter is equipped with a 3500 mAh battery. When you receive the product, please connect the adapter to Type-C for charging. Its charging voltage is 5V and the current is 1-2A. ...
