IWCS iriSelect Black Box User Manual

Hide thumbs Also See for iriSelect Black Box:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
v.1.1.1
iriSelect Black Box
V. 04/24FA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iriSelect Black Box and is the answer not in the manual?

Questions and answers

Related Manuals for IWCS iriSelect Black Box

Summary of Contents for IWCS iriSelect Black Box

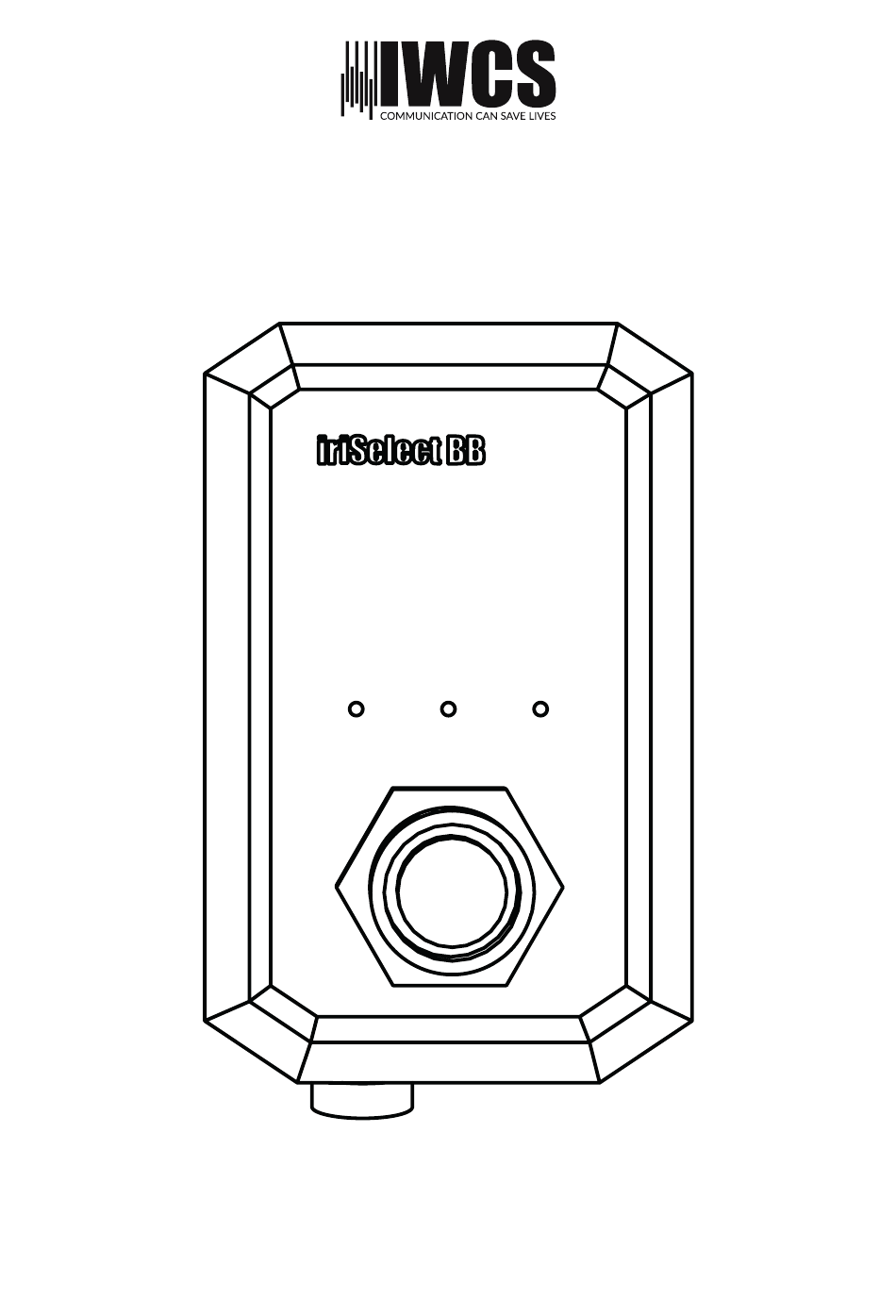

  • Page 1 User manual v.1.1.1 iriSelect Black Box V. 04/24FA...
  • Page 2 CONGRATULATIONS ON YOUR NEW PRODUCT FROM IRIDIUM WATERPROOF COMMUNICATION SYSTEMS iriSelect Black Box IWCS HOPE YOU WILL ENJOY THE BENEFITS OF TROUBLE FREE HIGH QUALITY INTERCOM. PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE FIRST USE. IF INSTALLED, OPERATED AND MAINTAINED ACCORDING TO THIS MANUAL, iriSelect Black Box WILL BE A RELIABLE PARTNER IN MANY YEARS TO COME.

  • Page 3: Table Of Contents

    Page: 3.2 Drill Template Page: 3.3 Bracket Placement Page: 3.4 Screws Page: 3.5 Drilling Holes Page: 3.6 Installing the iriSelect Black Box Page: 4. Connection options 4.1 Connection options Page: 4.2Wired Connection Page: 4.3 Wireless Connection Page: 5. Ethernet Connection 5.1 Cable installation...
  • Page 4 Page: 11.4 Grid Menu Bar Page: Quick Guide 12.1 Quick Guide Page: Service & Maintenance 13.1 Maintenance Page: 13.2 Updating the iriSelect Black Box Page: 13.3 Troubleshoot Page: Technical Data and Drawings 14.1 Specifications Page: 14.2 Measurements Page: Hejrevang 13 +45 43 43 26 26 3450 Allerød...

  • Page 5: Introduction

    The information in this manual is provided for informational purposes only, is subject to change without notice and may contain errors or inaccuracies. Manuals issued by IWCS are periodically revised and updated. It is recommended that anyone relying on this information acquires the most current version by requesting it at info@iwcs.eu.

  • Page 6: Safety Warning Page

    Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture and intended use of the equipment. IWCS assumes no liability for the customer’s failure to comply with these requirements.

  • Page 7: Unboxing

    Unboxing 2.1 What’s in the box 1 x iriSelect Black Box 1 x Mounting Bracket 1 x Magnet 1 x User Manual Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 8: Installation

    LAN cable or its internal WiFi hot spot. If you opt for a LAN cable connection, ensure that you have ample space for the cable to connect to the front of the iriSelect Black Box and consider the length of your LAN cable. If you choose to utilize the internal WiFi, it’s crucial not to hide the unit to maintain a stable connection between the iriSelect Black Box and your MFD (Multi-function display), mobile device or computer.

  • Page 9: Drill Template Page

    3.2 Screw holes 1:1 Scale 1:1. use for exact hole placement Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...
  • Page 10 Backside of drill tamplate Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 11: Bracket Placement Page

    The minimum distance from the underside of the bracket to the nearest surface should be no less than 150 mm to ensure proper cable clearance. Min. 150 mm. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 12: Screws Page

    Round headed screws 3.5 Drilling holes When mounting the bracket for the iriSelect Black Box, it is essential to consider the material and the appropriate drill bit size. Please note the following guidelines: If you are using wood screws you will need: •...

  • Page 13: Installing The Iriselect Black Box Page

    3.6 Installing the iriSelect Black Box Once the bracket is securely in place, you can proceed to inserting the iriSelect Black Box into the designated slot. You might need to wiggle the iriSelect Black Box slightly to make it fit between the bracket arms.

  • Page 14: Connection Options Page

    There are two main options by which you can connect your iriSelect Black Box to your MFD/PC is wired and wireless. Out of the box, the iriSelect Black Box is preset to ’Ethernet’ (wired) connectivity. This is also our recommendation to ensure a stable connection. Refer to page 15 for more information.

  • Page 15: Ethernet Connection

    Ethernet Connection 5.1 Cable installation Once the iriSelect Black Box is securely installed, you can proceed with inserting all the necessary cables. To ensure proper connections and waterproofness, please follow the steps below carefully. 1. Insert data cable Align the white dot on the cable connector with the white dot on the flush connector.
  • Page 16 Multi-Function-Display (MFD) or a computer. Once the connection is established, the MFD will automatically detect the iriSelect Black Box and install the necessary software. If you are connected to a PC, open a browser and type ”iriselect.local”...

  • Page 17: Leds Wired Connection Page

    5.2 LED - Wired connection When your iriSelect Black Box is connected the two LED’s (middle and left) should flash green. LINK ACTIVITY LINK should be a stable ACTIVITY should flash green light. This indicates green. This Indicates that that the iriSelect Black...

  • Page 18: Wifi Accesspoint

    WiFi Accesspoint 6.1 Connect to iriSound Start by connecting the iriSelect Black Box to your iriSound just like shown on page 15 to provide power to the unit. The LED on the right side should start flashing. 6.2 LEDs - Wiresless connection When making a wireless connection between the iriSelect Black Box and your MFD/PC it is important to be aware of the LED on the right.

  • Page 19: Connect To Iriselect Black Box Page

    6.3 Connect to the iriSelect Wireless To activate the local WiFi of the iriSelect Black Box and make it visible when scanning for WiFi’s, simply hold the provided magnet over the WiFi icon located on the front of the device. Hold the magnet for 5 sec.

  • Page 20: Change Connection Mode Page

    6.4 Changes connection mode As default the iriSelect Black Box is set to run a ethernet cable, but we can changes this to a wireless mode instead. To changes this you will have to access the settings menu on the interface.

  • Page 21: Client Connection

    Client Connection 7.1 Connect to iriSound Start by connecting the iriSelect Black Box to your iriSound just like shown on page 15 to provide power to the unit. The LED on the right side should start flashing. 7.2 Access settings site To access the settings site please refer to page 22.

  • Page 22: Access Settings Site

    The first option can be done from your MFD, PC, Tablet or Phone. When connected to the iriSelect Black Box, simply open the app on your MFD, or if your are on PC or tablet go to ”iriselect.local”. now you take the magnet and place in on the iriSelect Black Box for 1 second like shown below.

  • Page 23: Settings Site

    Choose how you wish connect to your iriSelect Black Box. The default is ”Ethernet” and requires a LAN-cable from your iriSelect Black Box to your router or MFD. WiFi Access point mode: This is only necessary if you have set connection type to ”WiFi Accesspoint”...

  • Page 24: Radio Settings Page

    ”Radio 3” = radio connected to channel 8 on the iriSound. This configuration ensures that the assigned radio names correspond to the physical connections on your iriSound. Please refer to your schematic. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...
  • Page 25 5: Press update when done Make all your desired changes and press ”Update”. *If you don’t give name your radios, these will not appear on your MFD. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 26: Grid Settings Page

    The grids layout is edited directly from the Multi-Function Display (MFD) or a compatible device. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...
  • Page 27 5: Continue with grid 2, 3, 4,..6: Press update when done Make all your desired changes and press ”Update”. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 28: Grid Size Page

    The maximum size of your grids is 10x10. When configuring your grid size, it is crucial to ensure that the order of settings match the physical installation. Please refer to your schematic. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...
  • Page 29 3: Set grid type and icon *Edit Grid Site on MFD 4: Continue with grid 2, 3, 4,..5: Press ”Update” when done Make all your desired changes and press ”Update”. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 30: The Interface

    Please note that the illustrations, screenshots or examples provided in this documentation are for general reference and may not precisely reflect the actual user interface or display on your specific device. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 31: Grid Section Page

    Please note that activating a new grid will deactivate your current grid. It’s important to remember that only one grid can be active at a time. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 32: Radio Section Page

    10.5 Error The ”Error” indicator will alert you if there is a loss of connection to a headset. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 33: Avad

    Quick guide When clicked you will navigate to the quick guide page from where you can gain more knowledge about specific features. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 34: Grid Site

    If you wish to save your changes, click the icon and it will turn white again. This is now your default on this grid. Currently editing grid Press to edit grid Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 35: Grid Editing Page

    11.3 Grid Editing Inactive channel Active channel Horizontal channel row Situational awareness Vertical channel column Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 36: Grid Menu Bar Page

    As you switch between different sites within the interface, the menu bar will reflect the context of each site Back to home screen Save changes Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 37: Quick Guide Page

    QR-code for direct support Use the camera on your phone to scan the QR- code. Click the link. It will guide you to our support team. Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...

  • Page 38: Service & Maintenance

    From here you have two options. 1. “Update” Here you can scan for new updates. If your iriSelect Black Box detects that there is a newer firmware version, you can press download, and it will now start downloading and installing the latest firmware.
  • Page 39 Cause Action LAN Connection lost Cable not fully inserted Turn off MFD/computer into iriSelect or MFD/ and iriSelect Black Box. computer. Take the cables out and reinsert them. Look for any damage on the cables. boot up system again. Wireless connection lost...
  • Page 40 Technical Data & Specifications 14.1 Specifications Specifications iriSelect Black Box Weight 246 g Range (WiFi) Waterproof IPX7, seawater resistant Power source iriSound Temperature range -15 to + 55 degrees Celsius Ethernet 10/100 Mb WiFi 802.11b MIL-std-810g—Designed 503.6 Temperature Shock, 505.6 Solar Radiation, 509.6 to meet Salt Fog, 512.5 Immersion, 515.7 Acoustic Noise, 521.4...
  • Page 41 14.2 Measurements 71,5 mm 112 mm 38,5 mm Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...
  • Page 42 Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...
  • Page 43 Hejrevang 13 +45 43 43 26 26 3450 Allerød info@iwcs.eu Denmark www.iwcs.eu V. 04/24FA...
  • Page 44 Black Box is developed, designed and manufactured by IWCS Aps Hejrevang 13 3470 Kvistgaard Denmark +45 4343 2626 Info@iwcs.eu www.iwcs.eu...
