Summary of Contents for FILTREC FUH050

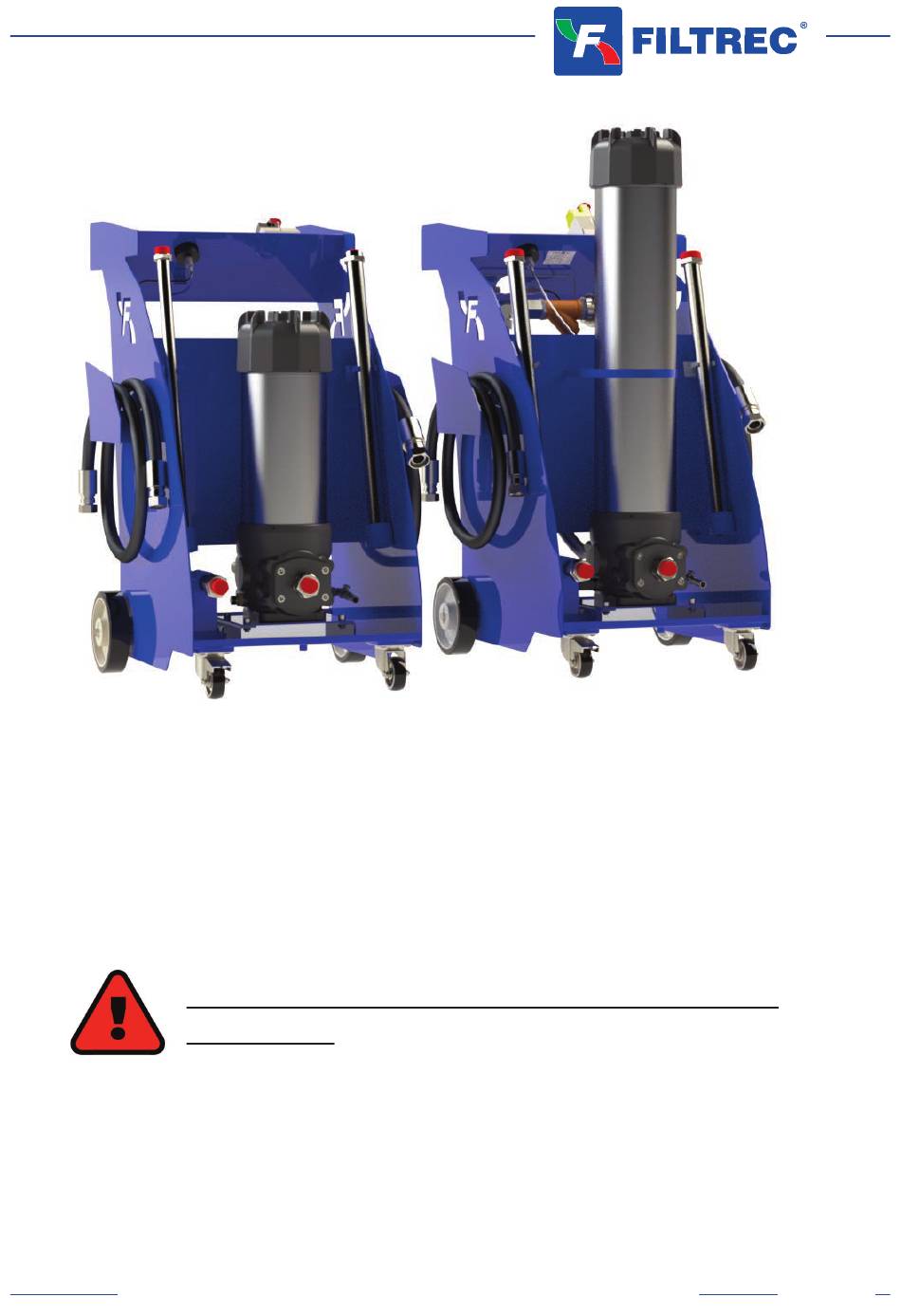

- Page 1 Operating Manual FUH050-FUH100-FUVR050 TRANSFER AND FILTRATION PORTABLE UNIT Read the safety and operating instructions before use! EMPTY UNIT: fit the filter element before use O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0...
-
Page 2: Table Of Contents
SUMMARY SAFETY REGULATIONS......................3 FEATURES OF THE UNIT......................4 FUH050 - FUVR050 HYDRAULIC AND ELECTRIC SCHEMES............5 HYDRAULIC SCHEME FUH050 - FUVR050 ................5 ELECTRICAL SCHEME FUH050T - FUVR050T(three phase) .............6 ELECTRICAL SCHEME FUH050M - FUVR050M (single phase) ..........7 FUH100 – HYDRAULIC AND ELECTRIC SCHEMES ..............8 HYDRAULIC SCHEME FUH100 ....................8... -
Page 3: Safety Regulations
1 SAFETY REGULATIONS The portable unit can only be used by authorized and trained personnel after having read and UNDERSTOOD this manual. This manual must be given to the operator and kept. The portable unit holder is responsible for it. CAUTION! Incorrect use of the portable unit can be dangerous due to oil pressure. -
Page 4: Features Of The Unit
Single phase: 220/230 Vac 50/60 Hz Supply voltage Three phase: 380/400 Vac 50/60 Hz Electric motor 4P B3-B5 FUH050: 730 x 950 x 1110 mm Overall dimensions (LxPxH) FUH100 - FUVR050: 730 x 950 x 1320 mm FUH050: 148 Kg Weight... -
Page 5: Fuh050 - Fuvr050 Hydraulic And Electric Schemes
3 FUH050 - FUVR050- HYDRAULIC AND ELECTRIC SCHEMES 3.1 HYDRAULIC SCHEME FUH050 - FUVR050 Table 2: COMPONENT LIST FUH050 and FUVR050 ITEM DESCRIPTION B72020013000000 Suction filter “Y” P111072500000N Gear pump 50 l/min. 99200ME4F2UN + 990424 + 99S04 + 99042UN Motor-pump coupling arrangement... -
Page 6: Electrical Scheme Fuh050T - Fuvr050T(Three Phase)
3.2 ELECTRICAL SCHEME FUH050T - FUVR050T (three phase) O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0... -
Page 7: Electrical Scheme Fuh050M - Fuvr050M (Single Phase)
3.3 ELECTRICAL SCHEME FUH050M - FUVR050M (single phase) O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0... -
Page 8: Fuh100 - Hydraulic And Electric Schemes
4 FUH100 – HYDRAULIC AND ELECTRIC SCHEMES 4.1 HYDRAULIC SCHEME FUH100 Table 3: COMPONENT LIST FUH100 ITEM DESCRIPTION B7020038000000 Suction filter “Y” P7500801180072 Gear pump 100 l/min. 99200ME4F2UN + 990424 + 99S04 + 99042UN Motor-pump coupling arrangement M254100400200M Electric motor 2,2 kw FLRU564000B0F10MA2000A1 Filter Head U564xxx... -
Page 9: Electrical Scheme Fuh100T (Three Phase)
4.2 ELECTRICAL SCHEME FUH100T (three phase) O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0... -
Page 10: Electrical Scheme Fuh100M (Single Phase)
4.3 ELECTRICAL SCHEME FUH100M (single phase) O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0... -
Page 11: Moving The Unit
MOVING THE UNIT Personal protective equipment to be used: • Gloves: mechanical risks (EN 388): abrasion resistance • Shoes with steel toe cap (UNI 8615/2 – EN 345) Use the provided handle to transport the device. Once transport is complete, secure the device by engaging the lever on the wheels. -
Page 12: Instructions For Use
The standard version of the filtration unit is supplied without a filter element. Before use, it is essen- tial to install an appropriate FILTREC element and follow the procedure described in the following section entitled "Installation of the filter element." This procedure should also be applied as soon as the indicator signals filter clogging. - Page 13 Unscrew the set screws from the filter housing (if provided). Unscrew the filter housing cap counterclockwise. Lift out the filter element (if replacing the filter element). Check the filter housing gasket. We recommend replacement in all cases. To avoid contamination during element replacement, first open the plastic film protecting the element, then push the element onto the filter head fitting.
-
Page 14: Operations Planned For Fluids
6.2 OPERATIONS PLANNED FOR FLUIDS Mobile filtration units are designed to accommodate the following operations: Offline filtration Filtration during fluid transfer (only for FUH050 and FUH100) FILTRATION In this case, insert and position the suction and discharge hoses into the oil drum to be filtered. -
Page 15: Electrical Connection
CE plug accordingly (see image, push and turn with a thin screwdriver for a 180° rotation) FUH050 - FVR050 SERIES Once the plug is inserted, press the black button (1) to start the device. The transfer and filtration of the fluid will then begin. To stop the opera- tion, press the RED button. -
Page 16: Air Purging Procedure For Initial Filter Element Installation
Once the air has been expelled, close the air vent valve. 6.5 SHUTDOWN FUH050 - FVR050 SERIES To stop the operation, press the RED button. FUH100 SERIES To stop the operation, press the "STOP" button. - Page 17 Unplug the main power supply from the generator. Once the operation is completed, rewind the power cable, input and out- put hoses/fittings. Exercise caution when draining the oil and insert the metal ends into the designated casings. Be extra careful when handling metal fittings/tubes and when transporting the device when the oil tempe- rature is above 40/45°C.
-
Page 18: Particles Counter
It calculates and displays results in accordance with ISO 4406, SAE AS4059, NAS 1638, and GOST 17216 standards. For detailed information, please refer to the “Operating Manual FMSC01S0”, available on www.filtrec.com. The FMSC particle counter starts automatically when the portable unit is powered on and stops when the portable unit is powered off (see para- graphs 6.3 and 6.5 of this manual).). -
Page 19: Maintenance
7 MAINTENANCE Personal protective equipment to be used: • Gloves: - mechanical risks (EN 388): resistance to abrasion - chemical risks (UNI EN 374): see the safety data sheet of the fluid used. • Shoes with steel toe cap (UNI 8615/2 – EN 345) •... -
Page 20: Filter Maintenance
7.1 FILTER MAINTENANCE FUH050 - FVR050 SERIES The in-line filter is equipped with a clogging indicator. The element must be replaced when the indicator turns red. For the replacement of the filter element, see paragraph 6.1 "Filter element installation" FUH100 SERIES The portable unit is equipped with a LED light indicator. -
Page 21: Declaration Of Ce Compliance
DECLARATION OF CE COMPLIANCE O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0... - Page 22 O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0...
-
Page 23: Warranty
Warranty against any manufacturing defects: under normal conditions of use and maintenance, the portable unit is guaranteed for 12 months from the date of delivery. 11 ORDERING INFORMATION SPARE ELEMENTS for FUH050 and FUH100 1. FILTER ELEMENT SERIES 2. FILTER SIZE... -
Page 24: Used Filter Elements Logbook
12 USED FILTER ELEMENTS LOGBOOK DATE FIT IN ELEMENT PART NR. REPLACEMENT DATE NOTES O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0... - Page 25 DATE FIT IN ELEMENT PART NR. REPLACEMENT DATE NOTES O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0...
- Page 26 DATE FIT IN ELEMENT PART NR. REPLACEMENT DATE NOTES O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0...
- Page 27 For any questions please contact: FILTREC S.p.A. 24060 TELGATE (Bergamo) ITALY Via dei Morenghi, 1 - www.filtrec.com Tel. +39 035 8368001 - Fax +39 035 831925 E-Mail: info@filtrec.it O P E R A T I N G M A N U A L F U H 0 5 0 - F U H 1 0 0 - F U V R 0 5 0...
