Part # HFB-09-002

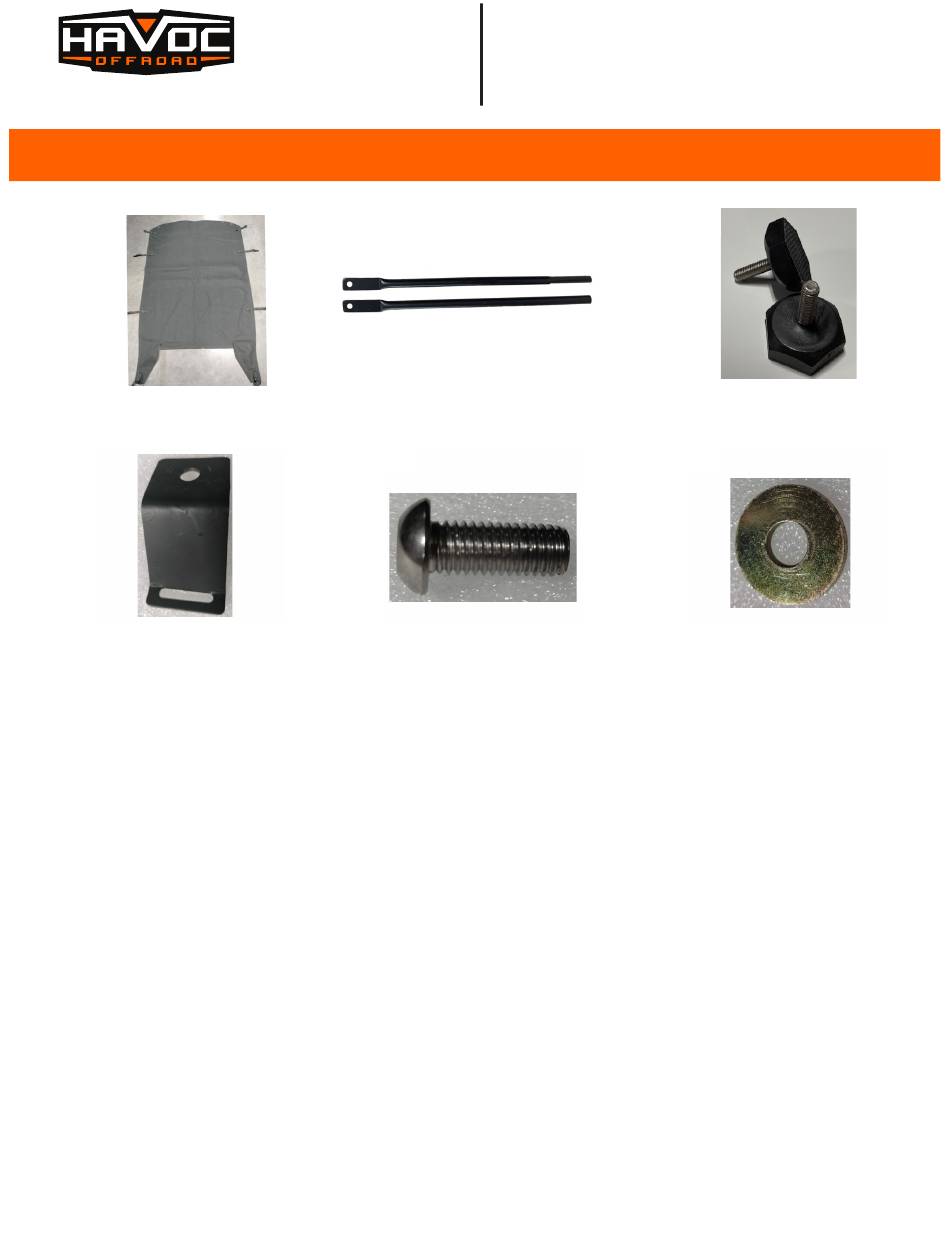

Components and Hardware:
1.
4.
SERVICE/SUPPORT: M-F 8am - 6pm EST 1-855-460-6800 | EMAIL: support@havocoffroad.com
Page 1
2.
5.
Components and Hardware:
1. California Brief Top ......................................................................... (1)
2. Cross Bow ....................................................................................... (1)
3. Turn Knob ........................................................................................ (2)
4. Metal Plate, Bent w/ Slot ................................................................ (4)
5. M8 Bolt ............................................................................................ (4)
6. M8 Washer ...................................................................................... (4)
FOR WARRANTY INFORMATION VISIT: www.havocoffroad.com
California Brief Top, Bronco
HAVOC OFFROAD
3.
6.
Advertisement
Related Manuals for HAVOC OFFROAD HFB-09-002
Summary of Contents for HAVOC OFFROAD HFB-09-002
- Page 1 California Brief Top, Bronco Part # HFB-09-002 Components and Hardware: Components and Hardware: 1. California Brief Top ................. (1) 2. Cross Bow ..................(1) 3. Turn Knob ..................(2) 4. Metal Plate, Bent w/ Slot ..............(4) 5. M8 Bolt .................... (4) 6.
- Page 2 Part # HFB-09-002 California Brief Top Lay California Brief Top(#1) on top of the vehicle. Ensure metal hooks are towards the front and are facing downward. 1. Align eyelet holes on California Brief Top(#1) over torx head bolts in front corner. Remove inboard factory bolt, pass bolt through eyelet and hand tighten.
- Page 3 Part # HFB-09-002 California Brief Top 4. Insert front corner strap into the round hole on the side of the roll-bar and tighten strap. Repeat on Passenger Side. 5. Attach rear corner straps around roll-bar and hook to the underside of the body tub as shown. Tighten straps.
- Page 4 Part # HFB-09-002 California Brief Top 7. Align strap on California Brief Top with corresponding holes on top of roll-cage. Install supplied Metal Plates(#4) as shown with supplied M8 Bolts and Washers(#5 & 6). 8. Tighten strap into Metal Plates(#4) as shown.
- Page 5 Part # HFB-09-002 California Brief Top 10. Completed installation Page 5...
