HAVOC OFFROAD HFB-09-001 Manual

Mesh shade top, 2 & 4 door bronco
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Part # HFB-09-001

Components and Hardware:

1.
Components and Hardware:

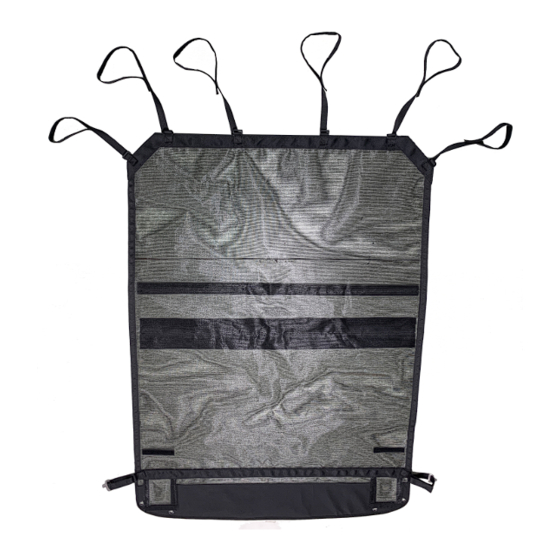

1. Mesh Shade Top .............................................................................(1)
2. Cross Bow........................................................................................(1)
3. Turn Knob.........................................................................................(2)
SERVICE/SUPPORT: M-F 8am - 6pm EST 1-855-460-6800 | EMAIL: support@havocoffroad.com
Page 1
HAVOC OFFROAD
FOR WARRANTY INFORMATION VISIT: www.havocoffroad.com
Mesh Shade Top, 2 & 4 Door
Bronco
2.
3.

Tools for Installation:

• T50 Torx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HFB-09-001 and is the answer not in the manual?

Questions and answers

Related Manuals for HAVOC OFFROAD HFB-09-001

Summary of Contents for HAVOC OFFROAD HFB-09-001

  • Page 1 Mesh Shade Top, 2 & 4 Door Bronco Part # HFB-09-001 Components and Hardware: Components and Hardware: Tools for Installation: 1. Mesh Shade Top ................(1) • T50 Torx 2. Cross Bow..................(1) 3. Turn Knob..................(2) HAVOC OFFROAD SERVICE/SUPPORT: M-F 8am - 6pm EST 1-855-460-6800 | EMAIL: support@havocoffroad.com Page 1 FOR WARRANTY INFORMATION VISIT: www.havocoffroad.com...
  • Page 2 Part # HFB-09-001 Mesh Shade Top, 2 & 4 Door Bronco Lay Mesh Top on top of vehicle. Ensure metal hooks are towards the front and are facing downward. 1. Align eyelet holes on Mesh Top over torx head bolts in front corner.
  • Page 3 Part # HFB-09-001 Mesh Shade Top, 2 & 4 Door Bronco 4. Insert front corner strap into the round hole on the side of the roll-bar and tighten strap. Repeat on Passenger Side. 5. Connect cross bow pieces. Install the middle Support Bow: 4-door, install cross bow using forward most hook and loop sleeve.
  • Page 4 Part # HFB-09-001 Mesh Shade Top, 2 & 4 Door Bronco 7. Install the 3 rear straps around the soundbar and the 2 rear corner straps as shown below. 8. The flaps at the front corners can be secured open to maintain access to the windshield clamps.
