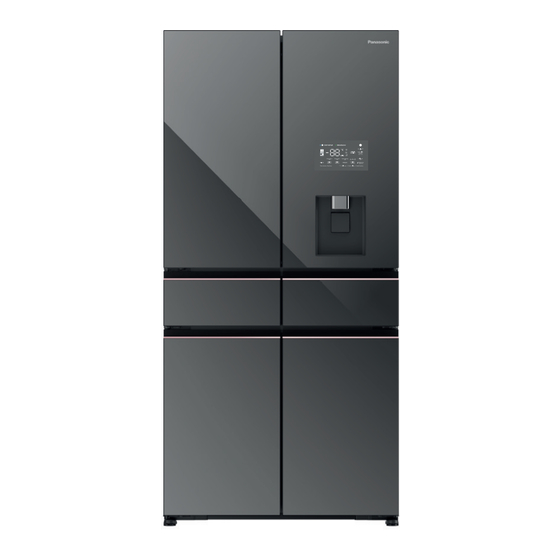

Panasonic NR-WY720Z Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
 Safety Precautions .................................. 2
 Usage Precautions.................................. 4
 Highlighted Features ............................... 6
 Installation ............................................... 9
 Parts Identifi cation ................................ 13
 Operation Panel .................................... 15
 Temperature Control ............................. 16
 ECONAVI Operation ............................. 19
X.............................................. 19
 Quick Freezing ...................................... 20
 Prime Fresh+ ........................................ 20
 Prime Freeze ........................................ 21
■
NON-CFC
NON-CFC MATERIALS have been used for the refrigerant (R600a) and for the insulation
(Cyclo-Pentane), making this product better for the Earth's Ozone Layer.
Thank you for purchasing the Panasonic product.
 Please read these instructions carefully and follow safety precautions on page 2-5 before
using this product.
 Please make sure the date and name of store of purchase are stamped in warranty card
and keep it with this operating instructions.
IND
Operating Instructions
Model No.:
Reg. No. IMKG.86.01.2024
 Quick Ice Making .................................. 23
 Child Lock ............................................. 24
 Wireless LAN ........................................ 25
 Fridge compartment .............................. 26
 Prime Fresh case ................................. 29
 Freezer compartment............................ 30
 Panasonic SmartApp+ .......................... 41
 Troubleshooting .................................... 45
 Specifi cations ........................................ 50
 Copyright............................................... 51
Refrigerator
For Household Use
NR-WY720Z
ARAH1E203830
Printed in Vietnam
P0524-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NR-WY720Z and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic NR-WY720Z

Summary of Contents for Panasonic NR-WY720Z

  • Page 1: Table Of Contents

    NON-CFC MATERIALS have been used for the refrigerant (R600a) and for the insulation (Cyclo-Pentane), making this product better for the Earth's Ozone Layer. Thank you for purchasing the Panasonic product.  Please read these instructions carefully and follow safety precautions on page 2-5 before using this product.

  • Page 2: Safety Precautions

    Safety Precautions Please be sure to follow these instructions. WARNING CAUTION This sign means: It may lead to a serious This sign means: It may result in injury or injury or death. property damage. These signs mean prohibited action. This sign means required action. This sign means the appliance must be earthed to prevent electric shock.
  • Page 3 Otherwise, it may WARNING cause a fi re, injury, electrical shock. For power plug and cord: ● Do not plug or unplug with wet hands. ● Do not let the power cord or power plug be damaged. ● Disconnect power plug when cleaning. ●...

  • Page 4: Usage Precautions

    CAUTION Otherwise it may cause injury, accidents. When opening/closing the doors: ● While opening the refrigerator, be careful not to pinch other one's hand holding the door. ● Mind the gap between the doors. They may nip your hand while closing the door. When storing food: ●...
  • Page 5 ● Cover juicy food with tight lids, plastic fi lm or foil. While using the Panasonic SmartApp+”... Radio waves from the refrigerator's wireless LAN module may cause interference to other devices. Therefore: ●...

  • Page 6: Highlighted Features

    Detect your absence for smart energy saving, detect your location for effi cient cooling.  Compressor located on top of the refrigerator (Top Unit) Panasonic’s exclusive design moves the compressor from traditional position at the bottom of the refrigerator to the top of the refrigerator, optimizing the space inside the refrigerator.
  • Page 7 ● To adjust the time of the modes of the Prime Freeze, refer to the application “Panasonic SmartApp+”. The application allows to adjust the time by minute, create and save the Prime Freeze modes fl...
  • Page 8 ● There is a Child Lock mode. ● There is a Remote-controlled mode.  Control the Refrigerator through the smart application “Panasonic SmartApp+” ● “Panasonic SmartApp+” is a Remote-controlled smart application that makes it easy to adjust...

  • Page 9: Installation

    Installation The distance required for installation ● The top of the refrigerator is Caution 5 cm at least 5 cm from the ceiling. ● In case the refrigerator is placed near to walls, it is necessary to ensure that the space between the left or right side of the refrigerator and the wall is at least 35 cm.
  • Page 10 ● The refrigerator LED lamp, specifi cally designed for this refrigerator. Do not replace it by yourself. If the LED lamp needs to be replaced, please contact Panasonic service center. ● If there is no grounding wiring plug in the refrigerator, it should be connected with a grounding connection to prevent electrical hazards from electrical leakage.
  • Page 11 When the left/ right doors are deviated (or the height is not the same) When the left/ right doors are deviated Turn the adjuster bolt on the lower side, as (or the height is not the same) shown in Image 1, in order to adjust the Lower the left Lower the right adjuster bolt for...
  • Page 12 Have any measures been Fix the refrigerator. taken against tipping due to Turn the adjuster earthquakes? bolts (right and left) In order to prevent the until they reach the refrigerator from tipping fl oor to stabilize the due to earthquakes, refrigerator.

  • Page 13: Parts Identifi Cation

    Parts Identifi cation Left door Right door...
  • Page 14 Parts Identifi cation A-Fridge compartment Water Dispenser 1 French Crossrail The French Crossrail minimizes the gap Lock between the left door and the right door of the refrigerator. If this French Crossrail is opened Press the faucet forward, put it back into place. lever to get water (Otherwise, the refrigerator doors cannot be Rear case cover...

  • Page 15: Operation Panel

    Operation Panel 1 Icon and LED of nanoe X: display the current status of nanoe X mode. 2 Icon and LED of ECONAVI: display the current status of ECONAVI operation. 3 LED of compartments: the icon of the respective compartment will light up when the compartment is selected.

  • Page 16: Temperature Control

    Operation Panel ● When fi rst plugged in, the Operation Panel will display the introduction of modes and the temperature of compartments for about 10 seconds. Buttons will not be active during this period of time. After 10 seconds, the Operation Panel can be adjusted normally. ●...
  • Page 17 Temperature Control 2. Temperature setting After pressing the icon of compartment (Fridge, Prime Fresh 1, Prime Fresh 2, Freezer) to display the current temperature, press again to start the temperature setting process. Then, LED indicates position of the compartment and LED indicates temperature of the compartment will fl...
  • Page 18 When “Fine Adjustment” mode is being set, the temperature displayed on the “Panasonic SmartApp+” application will always be the average temperature (Fridge compartment is 4 °C; Freezer compartment is -20 °C) and if “Panasonic SmartApp+” is used to adjust the temperature of the Fridge compartment or Freezer compartment, the “Fine Adjustment”...

  • Page 19: Econavi Operation

    ECONAVI Operation The refrigerator detects the opening and closing of Light the refrigerator door and the brightness around the intensity refrigerator to control operations automatically to ensure sensor ECONAVI light maximum energy saving.  ECONAVI Operation ● The refrigerator learns the lifestyle patterns of your family from door opening and time periods of infrequent use to maximize energy effi...

  • Page 20: Quick Freezing

    Quick Freezing When Quick Freezing is set, the refrigerator will reduce the temperature quickly for better performance of preserving food.  How to operate the Quick Freezing mode ● Press and hold the “Freezer” icon for 3 seconds to start LED is on: Quick Freezing the Quick Freezing.

  • Page 21: Prime Freeze

    Prime Freeze Prime Freeze is a separate area located inside the Freezer compartment. This compartment is equipped with an individual fan system and high-class aluminum heat transfer plate, and modes to adjust the cooling time according to each food processing purpose in order to support the user in preparing dishes in a variety of way and save time.
  • Page 22  Modes of Prime Freeze Purpose Mode Mode Recommended type Display of food (Unit: Remark name of food processing Minute) - Do not cover the box with lid or food wrapper to ensure the eff ectiveness of Cool Down. If you are concerned •...

  • Page 23: Quick Ice Making

    Prime Freeze Remark ● Always place food on the aluminum heat transfer plate for the best eff ectiveness of cooling. ● When hot or wet food is placed on the aluminum heat transfer plate without a lid or food wrapper, the surface of the food may be frozen and the inside of Freezer compartment may be frosted.

  • Page 24: Auto Ice Off And Auto Ice Clean

    Remark ● When Auto Ice Clean is operating, it cannot be stopped/disabled midway and other modes cannot be controlled by “Panasonic SmartApp+” application. For details on the cleaning operation of Auto Ice maker, please refer to Page 32. Child Lock When setting the Child Lock mode, the Operation Panel will disable the interaction to adjust temperature and modes in order to prevent unintended adjustment by children.

  • Page 25: Wireless Lan

    The information will be deleted when the Operation Panel no longer displays “In” and the light LED of wireless LAN fl ashes. - Reconnect to router using wireless LAN connection mode. Then, open the “Panasonic SmartApp+” application on your mobile phone and follow the instructions on the...

  • Page 26: Fridge Compartment

    Wireless LAN  The LED operation of Wireless LAN ● When the wireless LAN module is powered off , the LED of wireless LAN is turned off . ● When the wireless LAN module is on and the wireless LAN is connected, the LED of wireless LAN is turned on.
  • Page 27 How to use the Wine rack The Wine rack can be fl exibly placed in diff erent positions in 3 ways: Put the Wine rack on the Small glass Put the Wine rack on the surface of Hang the Wine rack under the Small glass trays of Fridge compartment tray of Fridge compartment glass tray of Fridge compartment...
  • Page 28 Fridge compartment How to use the Water Dispenser With the Water Dispenser, you can get cold water without opening the refrigerator door.  How to get water Lock Push the lock upward until it touches the top edge. Keep the cup straight and gently push the lever to get water. Open Close Attention...

  • Page 29: Prime Fresh Case

    Prime Fresh case The temperature in the Prime Fresh case can be selected as below: • The temperature for soft freeze is -5 °C ~ -1 °C. • The temperature to use the Prime Fresh case as the Fridge compartment is 0 °C ~ 4 °C. When using the refrigerator with 2 independent Prime Fresh cases, the temperature can be adjusted according to your usage.

  • Page 30: Freezer Compartment

    Freezer compartment Storing frozen food, cooked meals and freezing food by Prime Freeze case. The temperature range of the Freezer compartment is -23 °C to -15 °C Three tips for freezing food and locking in the flavour 1. Freeze thin and small items of food quickly 2.
  • Page 31 Request ● Do not pour water directly into the Ice box to make ice. (Otherwise, the Ice box may be broken). ● Do not put food or other things into the Ice box. (Otherwise, the amount of ice cannot be correctly detected and Auto Ice making may be stopped or the Ice box cannot be pulled out.) Ice maker cycle time will be longer in the following cases.
  • Page 32 Freezer compartment How to clean the Auto Ice Maker When using for the fi rst time or when not being used after a long time, the Water tank may smell unpleasantly or collect dust. Remember to clean the Water tank before proceeding to clean the Ice maker.

  • Page 33: How To Clean The Refrigerator

    How to use Ice box Use a Customized divider to increase ice storage space, and match your ice storage needs. ● Manually lift the Customized divider off the track, and move it to another desired position. ● Use the Ice scoop when removing ice from the Ice box. How to clean the Refrigerator Before cleaning or conducting maintenance, please ensure that the power plug has been disconnected from the power outlet.
  • Page 34 How to clean the Refrigerator Door shelf/Bottle shelf Once every 3 months  Removing Lift it upward, alternating between the right and left side.  Attaching Placing it on both supporters, and then press until it reaches the end of supporters. Tray Once every 3 months ...
  • Page 35 Once every 3 months Slide glass tray If the position of the Slide glass tray is in line with the Small glass tray of Fridge compartment:  Removing  Attaching Separate the joint between the Slide Lift up the underside of the Slide glass glass tray from the Small glass tray of tray and push into the right groove of Fridge compartment.
  • Page 36 How to clean the Refrigerator Vegetable case/Freezer cases Once every 3 months ※ Vegetable case  Removing  Attaching Fully open both doors of the Fridge Insert the case into the shelf. compartment. Gently lift the case and push forward Remove the Small bottle shelf 5 and until it reaches the end.
  • Page 37 How to clean the Refrigerator Water tank/Water fi lter (of the Auto Ice maker) Weekly Open the lid and clean the Water tank with water. Rotate the Water filter to remove the hook and remove the Water filter. Gently wash the Water filter in water. Remove the seal rubber on the edge and clean it Water supply tank Water filter...
  • Page 38 ● If cleaning by water, wipe the aluminum plate or allow it to dry before reinstalling into the refrigerator. ● Do not wipe the lubricant off the contact surface of the guide rail. If you have wiped out the lubricant, please contact with the Panasonic service center. Once every 3 months Wine rack...
  • Page 39 Once every 3 months Wine rack Adjusting the position of the Wine rack on the surface of the glass trays of Fridge compartment:  Removing  Attaching Lift the Wine rack out of the glass trays of Put the Wine rack on the glass trays of the Fridge compartment.
  • Page 40 Replace with a new hygiene filter. Put the filter back to its original position and close the lid tightly. Cleaning Cleaning filter filter element Remark ● The hygiene fi lter is recommended to be replaced every 3 years. ● The hygiene fi lter can be purchased at all authorized Panasonic service center.

  • Page 41: Panasonic Smartapp

    ● Shopping mode If you shop at registered shopping locations, AI ECONAVI detects your location using GPS, after you confi rm to active Shopping mode on the “Panasonic SmartApp+”. application, refrigerator will start to increase the cooling level to prepare for food storage.
  • Page 42 ● After the wireless LAN router changes its name or password, the refrigerator needs to be reconnected. ● Personal information related to customer activities such as Email, GPS signal,... is saved. To view details about the information stored, please open the “Panasonic SmartApp+” application, select “Menu”, then select “Terms of Use”.
  • Page 43 Initial Settings Install the “Panasonic SmartApp+” (free) ● You can fi nd the link to download the application from “Panasonic Website”. https://www.panasonic.com/fi ot/fridge/ or the QR code as below: ● Alternatively, you can search for the “Panasonic SmartApp+” application on Google Play (Android) or App Store (iOS).
  • Page 44 ® ■ Usage restrictions Please note that there are the following restrictions while using. Panasonic is not liable for any incidental damages resulting from the failure to comply with the restrictions and the use or inability to use the machine.

  • Page 45: Troubleshooting

    ● After installation, the refrigerator may make loud noise. The noise will be less when the refrigerator has been cooled. The inside is ● Do you store food with dry odor without wrapping it? smelling. Light does not ● Please contact Panasonic service center. turn on.
  • Page 46 ● The letter “H” and two digits are displayed on Operation Panel. For example: H01 → Please contact the Panasonic service center for support. ● U10: Warning if doors are opened too long. → Check that the doors are closed properly.
  • Page 47 ● Check if the Water tank is almost empty. ● If water spills on the Ice box, clean it up. ● Please contact Panasonic service center. The ice does ● Is the temperature of Freezer compartment set to a higher not form any temperature than -20 °C?
  • Page 48 Troubleshooting ● Are Quick Freezing, Quick Ice Making, Prime Freeze active? ECONAVI ● When the temperature is not set at 4 °C for the Fridge function compartment and -20 °C for the Freezer compartment, the does not ECONAVI function does not activate automatically. work (the ●...
  • Page 49 → Please clean the Water tray of the Water Dispenser if it has Water fl ows any abnormal object or scale formation. continuously ● In case water fl ows continuously and no abnormal objects are in the Water tray, please contact Panasonic service center immediately.

  • Page 50: Specifi Cations

    Specifi cations Model No. NR-WY720Z Freezer Star Rating Total Freezer Capacity (L) Fridge (SNI 8557:2018) Prime Fresh 1 Prime Fresh 2 Outside Dimensions 900 x 750 x 1890 Width x Depth x Height (mm) Net Weight (kg) Refrigerant Type R600a Cooling System Non-frost cooling.

  • Page 51: Copyright

    Bluetooth SIG, Inc. ® ● Panasonic Corporation uses these marks under license. Other trademarks and trade names are property of their respective owners. ● Other names, company names, product names, etc. described in this manual are trademarks or registered trademarks of their respective companies.
  • Page 52 Memo Diimpor oleh: Pusat Pelayanan Pelanggan: Panasonic Corporation PT Panasonic Gobel Indonesia Contact Center Jl. Dewi Sartika No.14 (Cawang II). Telp. 0804-1-111-111 https://www.panasonic.com Jakarta, 13630.Indonesia E-mail: ccc@id.panasonic.com Website: www.panasonic.com/id © Panasonic Appliances Vietnam Co., Ltd. 2024...
