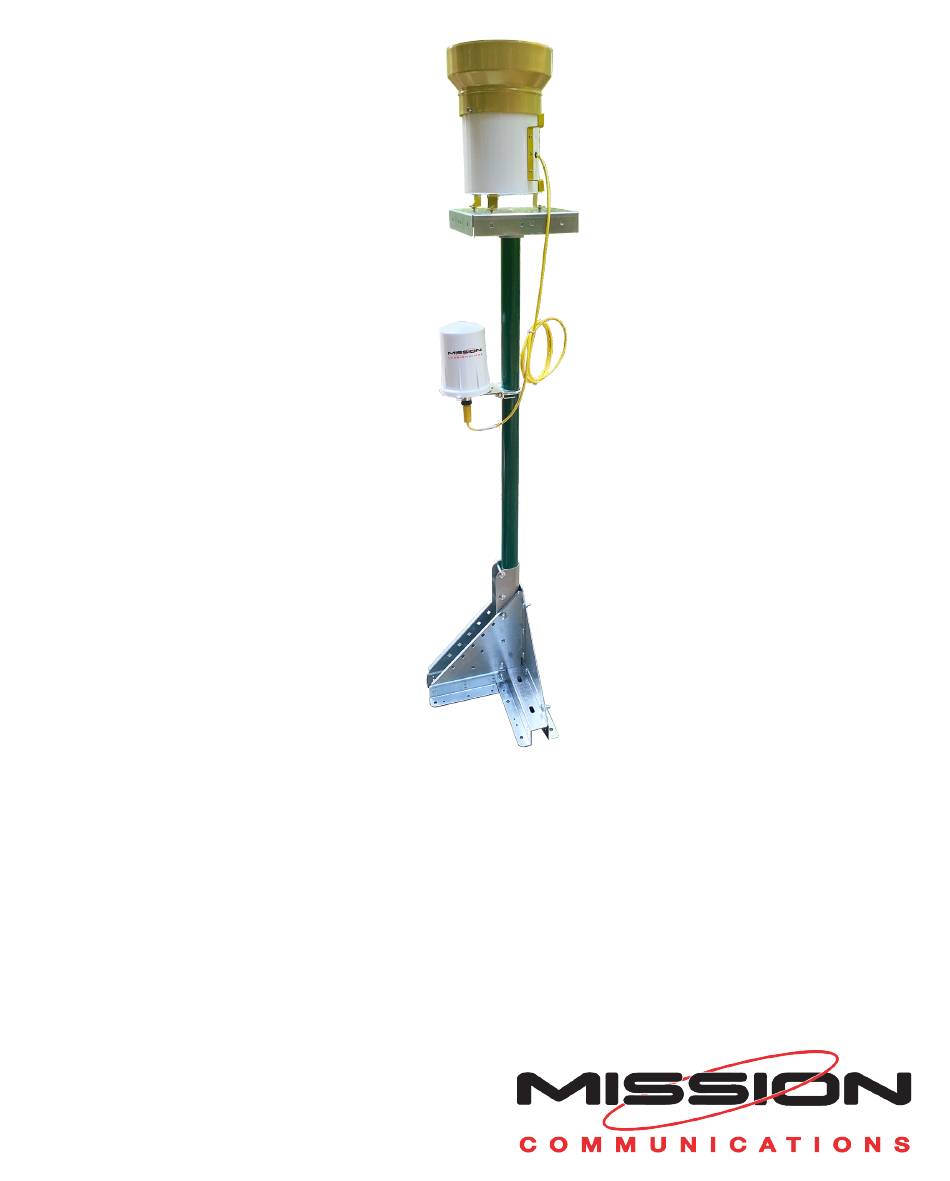

- Page 1 MyDro 50 Rainfall Monitoring (M54R) Installation Manual...
- Page 2 Warnings and Notices The MyDro 54R is rated Class 1 Division 2 non-incendive when powered by its internal battery pack. • WARNING: EXPLOSION HAZARD. DO NOT REMOVE OR REPLACE COMPONENTS UNLESS POWER HAS BEEN DISCONNECTED OR THE AREA IS FREE OF IGNITABLE CONCENTRATIONS. AVERTISSEMENT : RISQUE D’EXPLOSION .
-
Page 3: Table Of Contents
Contents Warnings and Notices ..................2 Specifications ...................... 5 Front view ....................... 6 Side view ......................6 Bottom view ....................6 Connections and Components ................7 Status LED ...................... 7 Error LED ......................7 Check-in Button ....................7 Power Options ..................... 8 Lithium Battery Pack (4DPak) ................. - Page 4 • Internal backlog of a minimum of 200,000 data points in the event of loss of signal. Backlog will be automatically sent when the MyDro 50 reconnects. Mounting Hardware The M54R can be mounted to any standard pole. In addition to the RTU, the kit includes: •...
-
Page 5: Specifications
Specifications Enclosure Size and Weight 7.1in tall × 4.6in diameter, 1lb. Power Source Internal lithium battery pack. Temperature Rating -40°C to +85°C MyDro 54R SIM Slot 4FF Nano SIM card MyDro 54R Local ConfigPort Standard micro-USB connector. MyDro 54R Digital Inputs Two digital inputs—dry contact for tipping bucket, capable of reporting on state change. -
Page 6: Front View
Front view Side view Bottom view... -
Page 7: Connections And Components
Connections and Components Status LED The Status LED (green) will flash 3 times on a successful data transmission to the server. Error LED The Error LED (red) will blink 3 times to indicate that an attempted data transmission failed. Check-in Button If this button is pressed the MyDro 54R will blink the green Status LED or the red Error LED 3 times to indicate the status of the last transmission to the server. -
Page 8: Power Options
Power Options Lithium Battery Pack (4DPak) The internal lithium battery pack is the default power source for the MyDro 50. Simply plug the battery pack into the PCB battery connector to power the MyDro 54R Internal Lithium Battery Replacement Battery packs can be changed with the MyDro 54R in place. -
Page 9: Mounting And Care
Mounting and Care The MyDro 54R unit comes with an integrated ½ inch NPT connector with leads for connection to the sensors. It is important to mount the MyDro 54R vertically, with the NPT fitting facing down. A standard fence post or handrail available at home supply stores can be used for the pole. -
Page 10: Test The Installation
Test the Installation Test that the bucket tips are received by pouring water into the bucket to ensure that rainfall will be accurately tracked by the customer or end-user once the unit is put into production. Additionally, the customer or end-user should physically test the bucket every six months to ensure that all electrical components are still functioning as desired rain tips are being received. -
Page 11: Site Commissioning
Site Commissioning Ensure that: • Setup forms have been submitted to setupforms@123mc.com. • Credentials have been received by the customer and they have proper login access. If it’s a new customer they should have received an email to establish access to 123SCADA Web portal. Log into 123SCADA Web Portal The unit is now ready for use. -
Page 12: Support
Q&A. Video Demonstrations A variety of videos are provided to cover topics relating to the MyDro 50 and the Mission system. These can be found on the 123SCADA web portal as well as the MyDro 50 product site on 123mc.com.
