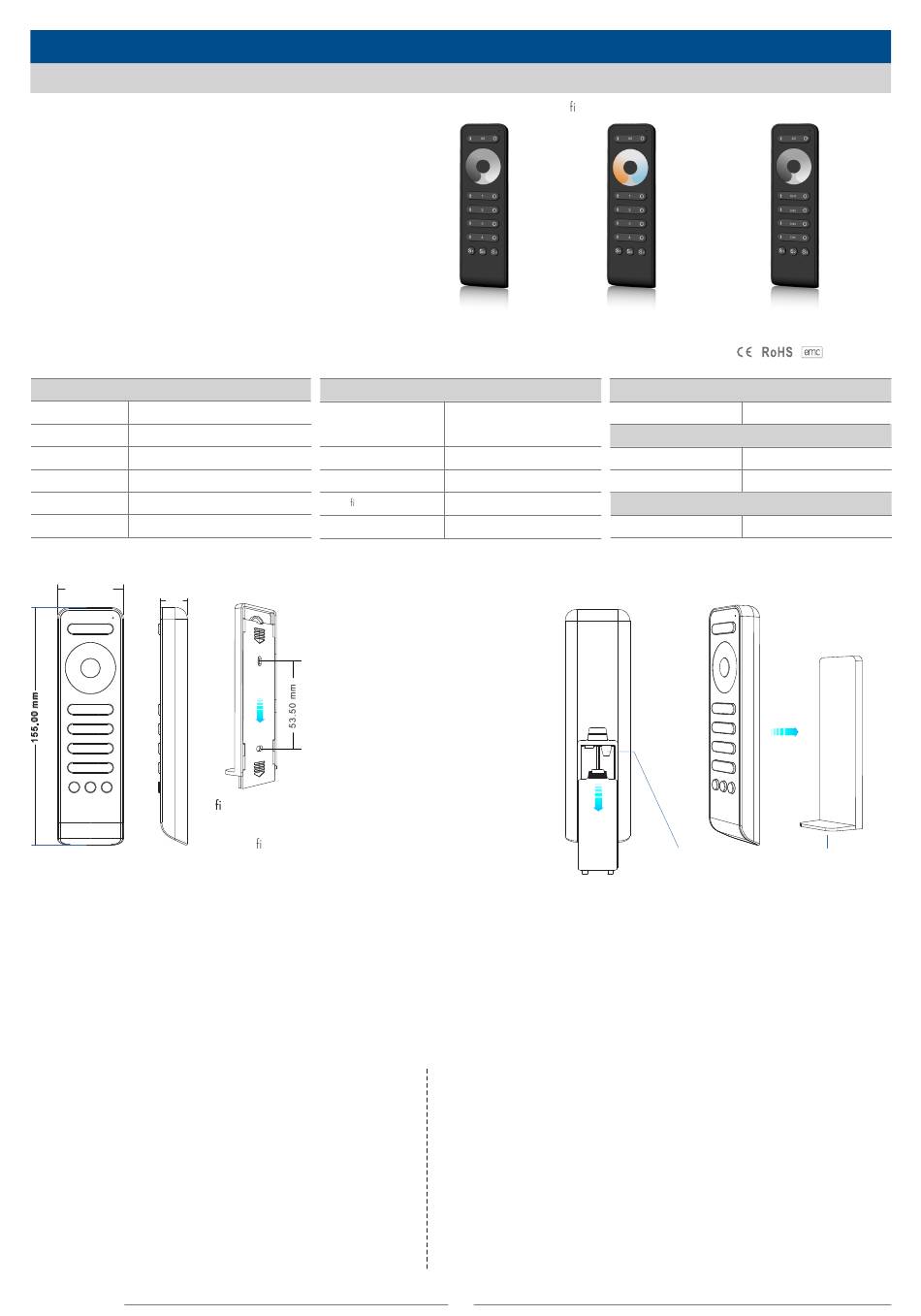

B-LED RS1 User Manual

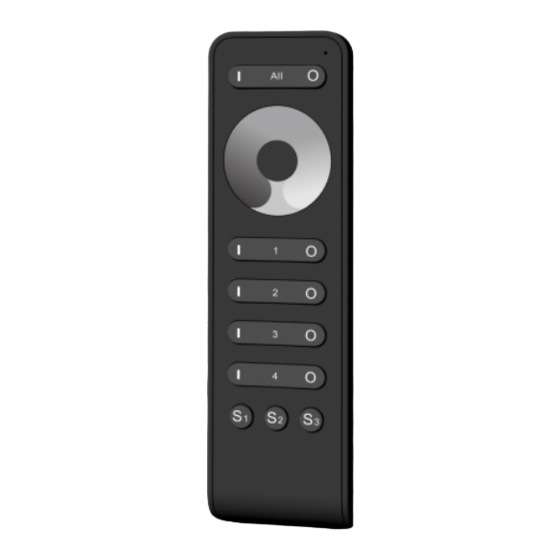

Touch Wheel RF Remote Controller
Model No.: RS1/RS2/RS6
13-Key/4 Zone/Touch color wheel/Wireless remote 30m distance/AAAx2 battery/Magnet stuck x
Features
● Apply to single color or dual color LED controller.
● Ultra sensitive color adjustment touch wheel.
● Each remote can match one or more receiver.
● AAAx2 b atter y powered.
● Operate with LED indicator light.
● Magnet on the back which can be stuck on back holder.
Technical Parameters
Input and Output
Output signal RF (2.4 GH z)
Working voltage 3 VDC( AAAx2)
Working current <5mA
Standby current <10μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Mechanical Structures and Installations
43.00 mm
17.50 mm
To x the remote, three options are offered for selection:
Option 1:
Option 2: x the remote' back holder on the wall with two screws.
Option 3: adhere the remote' back holder to the wall with paster.
Operation
● When turn on light, the indicator display blue. when turn off light, the indicator display red.
● When touch the color wheel, the indicator will display the same color.
● When press or touch operation is invalid (If the light is off), the indicator display red.
● To extend battery life, no touch or press key operation after a few seconds,
the touch wheel will enter sleep state, you need press any key to make touch wheel quit sleep state.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press zone on key of the remote.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times means all matched remotes
were deleted.
User Manual Ver 1.0.6
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certi cation
can be adsorbed directly onto metal surfaces
RS1
4 Zone Dimming 4 Zone CCT
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
EN 62368-1:2020+A11:2020
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED
.
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press zone on key 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again.
Immediately short press zone on key 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
1
RS2 RS6
4 Channel Dimming
Environment
Operation temperature
O
Ta: -30 C ~ +55
Package
L170 x W45 x H28mm
Size
Gross weight 0.111kg
Warranty
Warranty 5 years
3VDC(AAAx2) Battery Back holder with magnet
LVD RED
O
C
