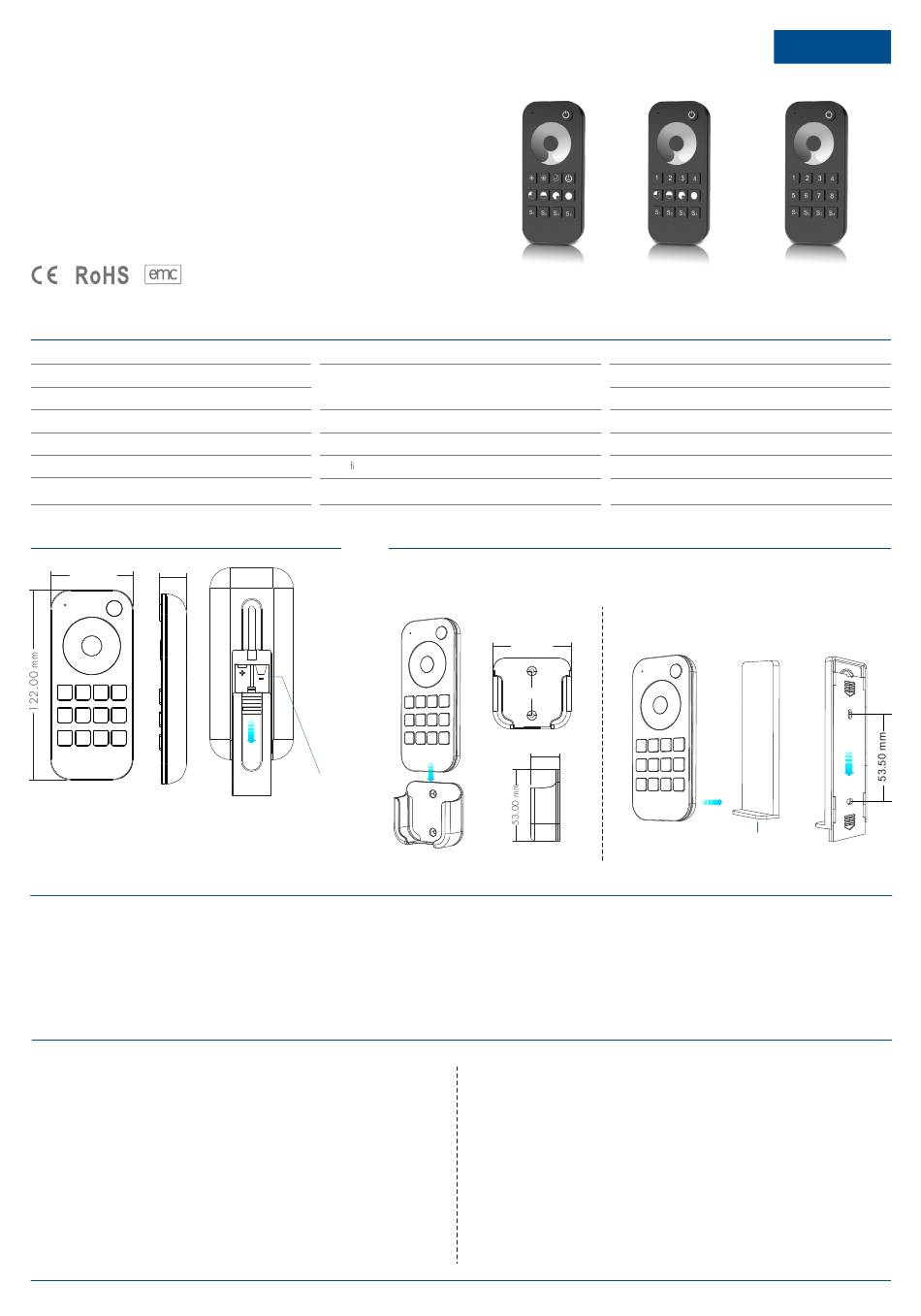

B-LED RT6 Manual

RT1,RT6,RT8
Dimming Touch Wheel RF Remote Controller
● Apply to single color LED controller.
● Ultra sensitive color adjustment touch wheel.
● Each remote can match one or more receiver.
● AAAx2 b atter y powered.
● Operate with LED indicator light.
LVD RED
Technical Parameters
Input and Output
Output signal RF (2.4 GH z)
Working voltage 3 VDC( AAAx2)
Working current <5mA
Standby current <10μA
Standby time 1 year
Remote distance 30m(Barrier-free space)
Mechanical Structures and Installations
17.50 mm
53.00 mm
Operation
● When turn on light, the indicator display blue. when turn off light, the indicator display red.
● When touch the color wheel, the indicator will display the same color.
● When press or touch operation is invalid (If the light is off), the indicator display red.
● To extend battery life, no touch or press key operation after a few seconds, the touch wheel will enter sleep state,
you need press any key to make touch wheel quit sleep state.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key, immediately press on/off key (single zone remote)
or zone key (multiple zone remote) of the remote.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times means all matched remotes
were deleted.
User Manual Ver 1.2.2
2023.8
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certi cation
Back holder
Two options are offered for selection, please fix the back holder on the wall
with two screws, or adhere the back holder to the wall with paster.
1. Back holder without magnet
3VDC
(AAAx2) Battery
Back holder
RT1
1 Zone Dimming
Environment
Operation temperature
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
Package
EN 62368-1:2020+A11:2020
Size
ETSI EN 300 328 V2.2.2 Gross weight
Warranty
CE,EMC,LVD,RED
Warranty
2. Back holder with magnet




( The remote with built-in magnet)
58.00 mm
33.00 mm
22.00 mm
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key (single zone remote) or zone key
(multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key (single zone remote) or zone key
(multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.
RF DIM

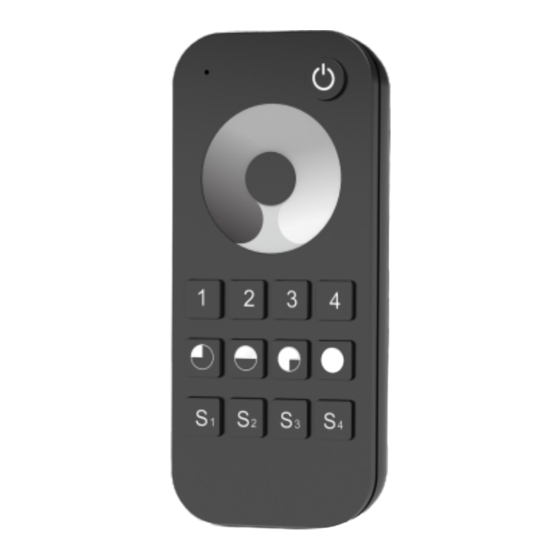

RT6
4 Zone Dimming 8 Zone Dimming
O
Ta: -30 C ~ +55
L140 x W60 x H26mm
0.088kg
5 years
Back holder with magnet
RT8
O
C
Page1
