ECWA INSTALLATION INSTRUCTIONS
TOOLS REQUIRED:
TAPE
• PHILLIPS HEAD SCREWDRIVER
•
• ZIP TIES
• TWO (2) AA BATTERIES
Rev. 9/27/23
sales@ozliftingproducts.com • P.O. Box 845, Winona, MN 55987 • Tech Support (507) 457-3346
General guidelines for installation of the
ECWA Wireless Adapter to the OZ Electric Chain Hoist
(OZ1000EC, OZ2000EC, or OZ40000EC).
NOTE: Excludes serial numbers starting with "V"
The AC power cord provided with OZ1000EC, OZ2000EC, or
OZ4000EC will not be utilized with the ECWA Wireless Adapter.

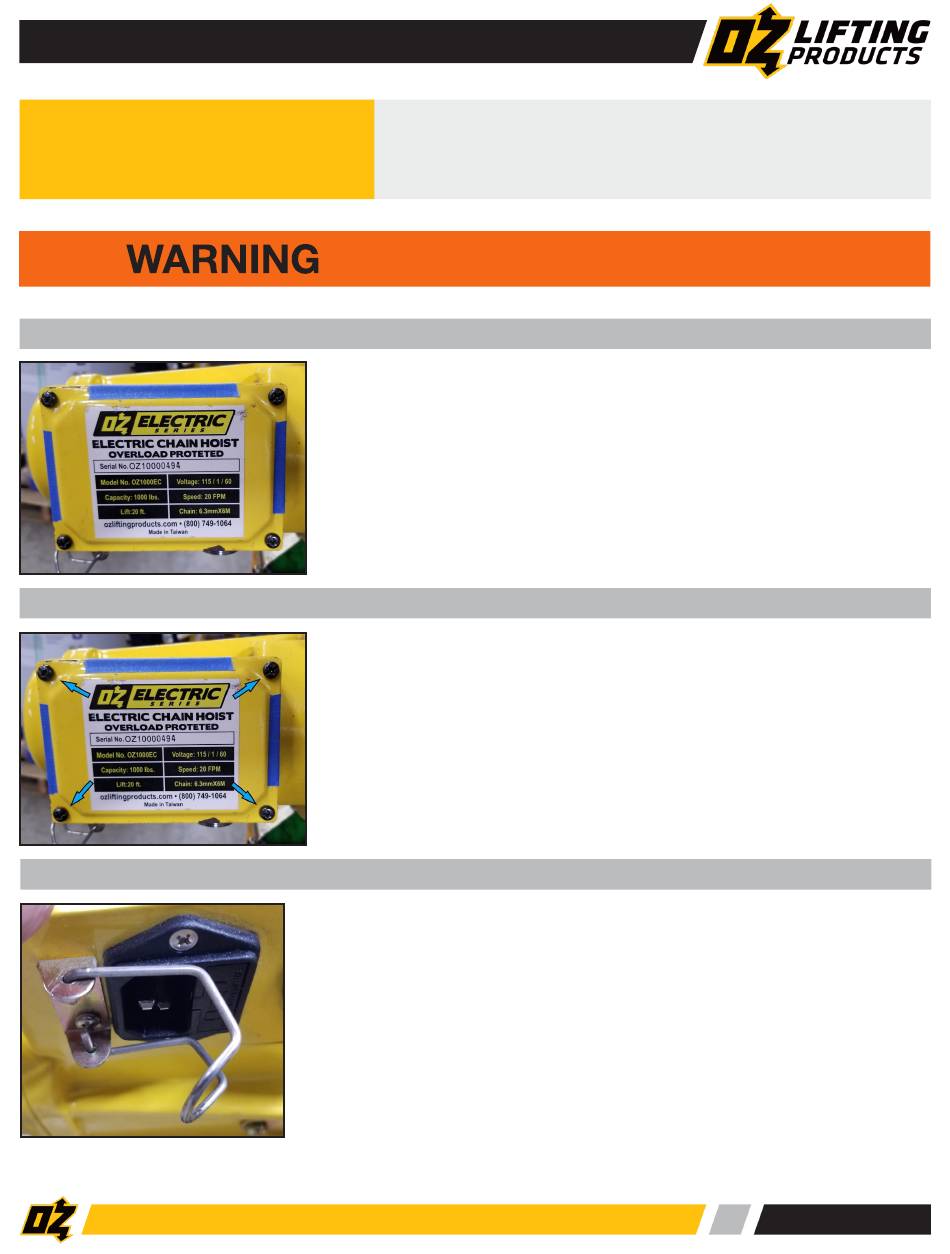

STEP 1
Tape up the three (3) sides of the cover of the OZ Electric Chain Hoist as
shown.
STEP 2
Remove the four (4) screws as indicated by the blue arrows.
STEP 3
On the existing power cable connector on the body of OZ Electric Chain Hoist,
flip retaining latch as shown.
Pg. 1
ozliftingproducts.com
Advertisement
Related Manuals for OZ Lifting Products ECWA
Summary of Contents for OZ Lifting Products ECWA
- Page 1 NOTE: Excludes serial numbers starting with “V” The AC power cord provided with OZ1000EC, OZ2000EC, or OZ4000EC will not be utilized with the ECWA Wireless Adapter. STEP 1 Tape up the three (3) sides of the cover of the OZ Electric Chain Hoist as shown.
- Page 2 STEP 4 Align the OZ Wireless Adapter bracket to the four (4) holes in the cover of the OZ Electric Chain Hoist. Reinsert and tighten screws, taking care not to strip them. STEP 5 Insert and tighten the control plug to the connector on body as shown.
- Page 3 STEP 7 Carefully peel protective rubber sleeve back on the pendant remote, going over the top of the E-Stop. Remove the two (2) screws on the battery compartment and insert the two (2) AA batteries, paying close attention to correct polarity. Replace battery compartment cover and screws.
