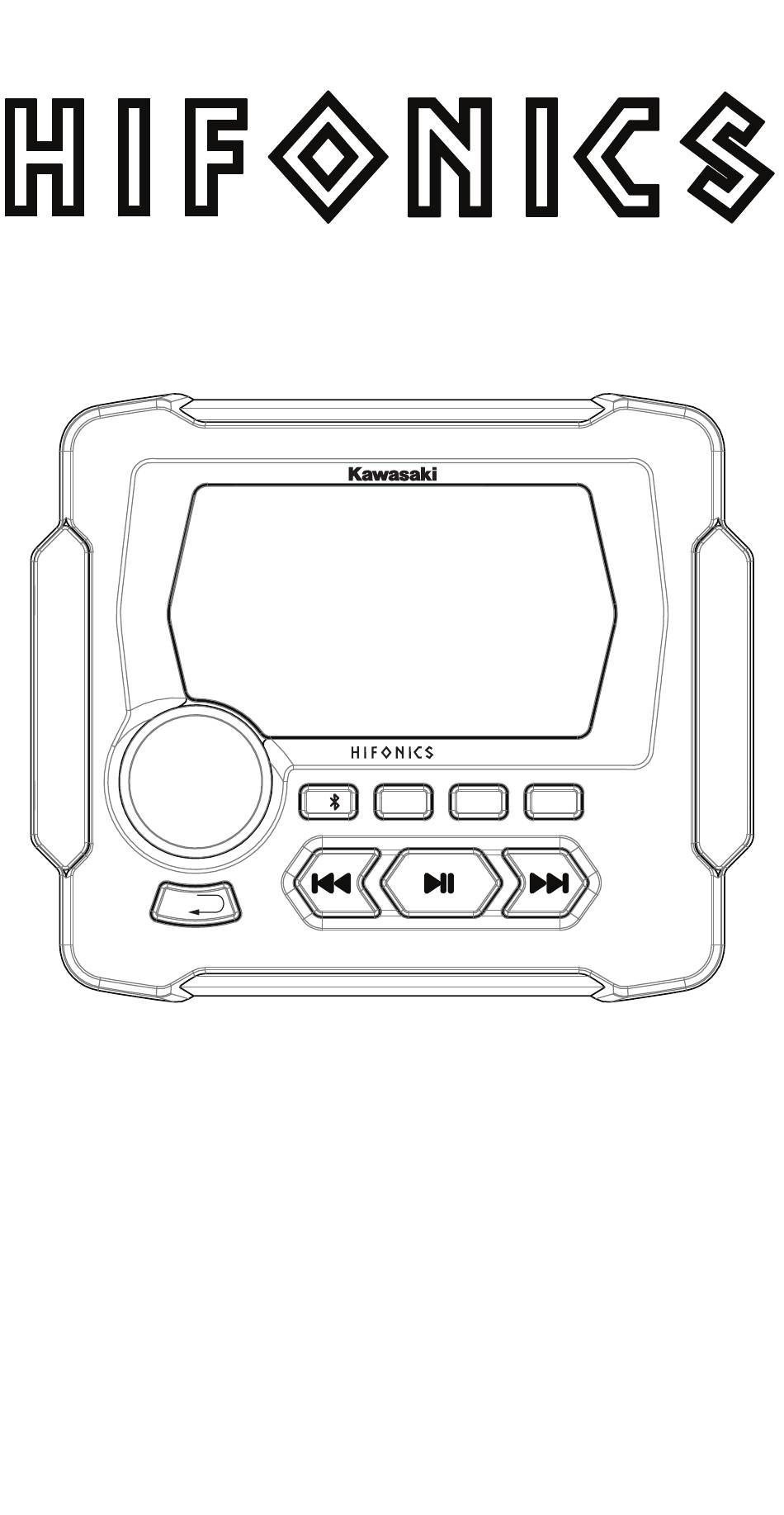

- Page 1 Operator’s Guide and Installation Instructions 2/INT 3/RPT 4/RDM Source GMR-LEDK ® AM/FM/USB/Bluetooth Multimedia Controller for Off-Road and Marine...
-
Page 2: General Information
Congratulations for choosing the AM/FM/USB Bluetooth Multimedia Controller by Hifonics. For more detailed information about the product, please visit Hifonics.com CAUTION Always consider consulting a professional audio installation technician before installing any mobile audio components. Be careful and take your time. Do not let wires make contact with metal edges, sources of moisture or hot engine components. -
Page 3: Wiring And Connections
Wiring and Connections AUX Input Sub Output (White) Front Output (Red) Rear Output (Green) Video Input AM/FM Antenna Yellow (+12v Constant) Red (+12v Accessory) Black (Chassis Ground) Blue (Amp Turn-On) USB Connector ● We recommend wire-to-wire connections such as power, ground and speaker wiring are soldered and protected with either heat shrink tubing or high quality electrical tape. -
Page 4: Front Panel Controls
Front Panel Controls 2/INT 3/RPT 4/RDM Source POWER/Selector and Volume Knob ● Press the POWER/Selector Knob to power on the unit. ● Rotate the POWER/Selector Knob to view sources when source selection menu wheel is displayed. To select a source, press and release the POWER/Selector Knob. -
Page 5: Aux Input
Source Selection Weather FM Radio Bluetooth AM Radio Aux Input Camera Input Settings Step 1 Step 2 Source 2/INT 3/RPT 4/RDM 2/INT 3/RPT 4/RDM Source Source Press SOURCE Button to Rotate Selector Knob display source selection to choose a source menu. - Page 6 AM/FM Configuration Several configurable AM/FM radio parameters are available. ● Select between AM or FM on the Source Menu wheel. Each has its own menu. ● Once the chosen source is selected, press and hold the SOURCE button for 2 seconds. The AM or FM menu will appear (whichever source is selected).
- Page 7 AM/FM Configuration Settings Choices for AM ● PRESETS - This function shows stored AM presets 1-6 on AM1 or AM2. Only presets 1-4 have front panel quick access buttons without using this menu. ● SAVE PRESETS - This function stores AM presets in spaces 1-6. Only presets 1-4 have front panel quick access buttons.
- Page 8 AM/FM and Weather Band Operation Once setup is complete, select between AM or FM icons on the Source Menu wheel or simply press the SOURCE button to back up to the source screen showing the current AM or FM frequency. ●...
-
Page 9: Bluetooth Pairing
Bluetooth Pairing The multimedia controller supports Bluetooth A2DP for wireless music streaming from a mobile device, such as a smartphone or streaming music source component. The unit does not support the HF (Hands- Free) or PBAP (Phone Book Access for Contacts) profiles. No calling features are available, only Bluetooth music streaming. - Page 10 Bluetooth Pairing & Operation If a PIN Code is Required: ● Some Bluetooth devices require inputting a pass code for connection. Please input code “0000” and the connection will be made automatically. Automatically Connecting: ● Once the multimedia controller has made a connection with the Bluetooth mobile device for the first time, the unit can then connect to the Bluetooth mobile device automatically within a valid range.
-
Page 11: Usb Input
USB Input The multimedia controller supports MP3, WMA, and WAV audio files with a USB thumb drive connected. Additionally, M4A or Apple Lossless file types are supported if the user connects an iPhone ® using iTunes as the music player. Most smartphones with a USB-based charging connector and USB thumb drives easily connect to the multimedia controller. - Page 12 USB RPT and RDM Functionality The multimedia controller has two modes of making a USB-connected music library more interesting with Repeat (RPT) and Random (RDM) functions. Random play is also called "Shuffle" on some mobile devices. USB Thumb Drive RPT and RDM With a thumb drive connected to the USB input, users see an icon on the right side of the screen (centered) that indicates the status of the RPT mode.
-
Page 13: Camera Operation
Auxiliary (AUX) Input and Camera The multimedia controller has right and left preamp level RCA connections for the Auxiliary Input. If a portable device with a headphone jack is used, a 3.5mm (male) to RCA (male) adapter cable is required and not included. Select the AUX icon on the Source Menu wheel. -
Page 14: Settings Menu
SETTINGS Menu To access SETTINGS, press Selector/Volume knob in any source. The "SETTINGS" menu appears immediately. Alternatively, select "SOURCE" and navigate to the SETTINGS icon ("Gear" icon), then press the Selector/Volume knob to access the menu. 2/INT 3/RPT 4/RDM Use the Selector/Volume knob to navi- Source gate the main menu by turning to scroll and pressing to enter a specific feature... -
Page 15: Bass Level
SETTINGS Menu (Continued) Clock Adjust ● Access the clock adjust mode menu to change the time displayed on the unit's main screen. ● Navigate each time parameter (hour, then minute) by turning the knob and select by pushing the knob. ●... -
Page 16: Balance Control
BALANCE Control ● Adjust the balance between the left and right speakers using the grid on the screen and the Selector/Volume knob to move the dot. Equal balance (center dot) is the default setting. ● Use the SOURCE button to close the balance screen when complete and return to the main menu. -
Page 17: Diagnostics And Troubleshooting
+12v trigger If you have problem or question that was not mentioned here, please visit Hifonics.com and go to the TEQ Support section or the Frequently Asked Questions. - Page 18 Notes...
- Page 19 Notes...
- Page 20 The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use such marks by Hifonics is under license. All product names, logos, and brands are property of their respective owners. All company, prod- uct and service names used in this literature are for identification purposes only.
