Summary of Contents for Polaroid PBT9071

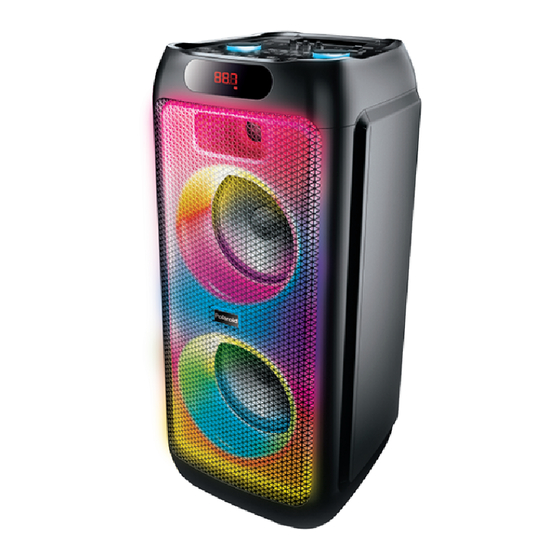

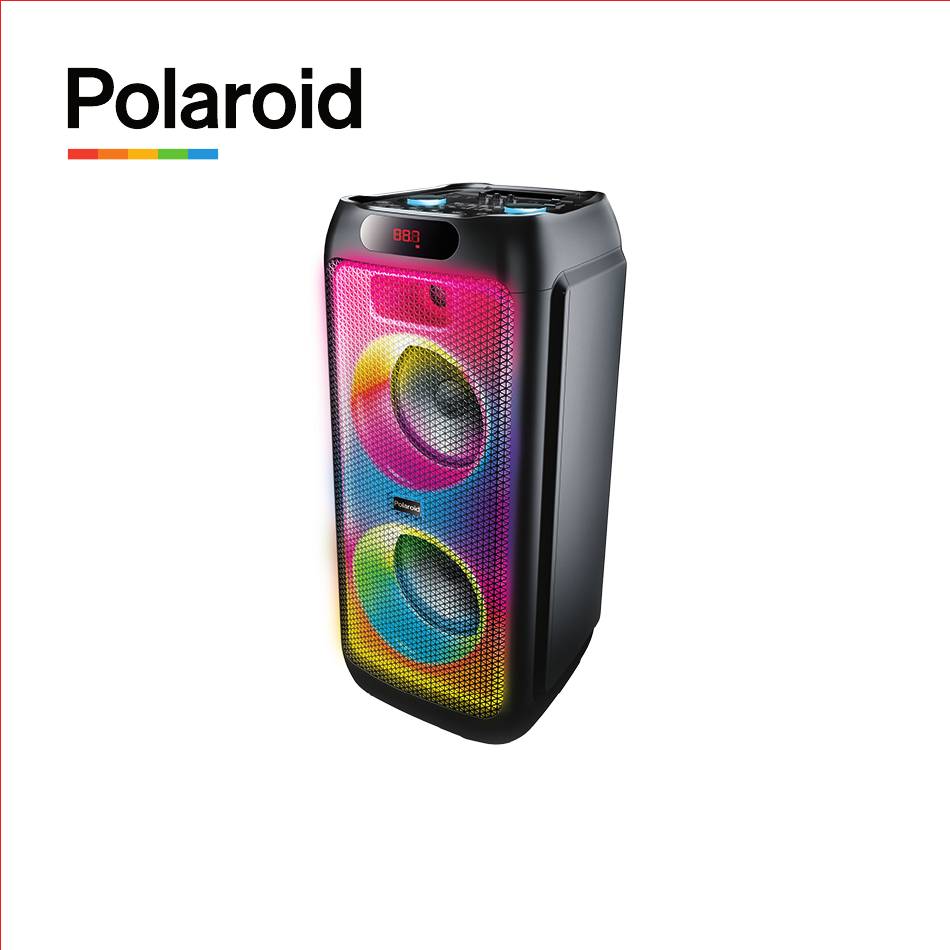

- Page 1 PBT9071 Light Show Karaoke Speaker User Manual...
-
Page 2: Customer Support
Please consult the local authorities on the correct way to dispose of this device. In the Box • PBT9071 - Wireless Speaker (x1) • 13.5V/1.3A Charging Adapter (x1) • Wired Microphone (x1) • Remote Control with Battery (x1) -
Page 3: Location Of Controls
Location of Controls Top of Speaker... - Page 4 1. TF / Micro SD Card Input 2. USB Device Input 3. AUX Input Port (3.5 mm) 4. Guitar Input (GT.IN) Port (1/4”) 5. Microphone Input (MIC.IN) Port (1/4”) 6. Microphone Input (MIC.IN) Port (1/4”) 7 . LED Screen 8. Power LED Indicator 9.
-
Page 5: Getting Started
Getting Started Charging the Speaker Plug the pin of the included power adapter into the power port on the top of the speaker. Plug into a wall outlet. The LED indicator will light up RED when connected to power and turn OFF when disconnected from power. -
Page 6: Controlling Playback
“BLUE.” 2. Set your mobile device to search for Bluetooth devices. When it appears, select PBT9071 from the found devices. 3. After a successful pairing, a tone will be heard and you will be able to play music on the speaker. - Page 7 Using the AUX Input Insert one end of a 3.5 mm auxiliary cable (not included) into the AUX input port on the speaker. Insert the other end into the headphone jack or 3.5 mm AUX output port on your media-playing device. Switch to AUX mode.
-
Page 8: Using A Microphone
USB Device and TF Card Input Insert a USB device, such as a USB flash drive, or TF card (”micro SD“ card) into the USB or TF card input ports on the speaker. Note: To listen to music on your USB device, you may need to have files stored in the root folder of the device. - Page 9 Plugging In a Guitar Plug the 1/4” connector of your guitar (not included) into the Guitar Input port on the speaker. • Adjust guitar volume using the GUITAR + — buttons on the speaker. Recording Mic Input To record microphone input, you must have a USB device or TF (micro SD) card inserted into the speaker.
-
Page 10: Remote Control
Remote Control • Button: Enter/exit standby • LED Button: Change LED light mode • MODE Button: Change input mode • Button: Play/pause • Button: Skip to previous track/station • Button: Skip to next track/station • Button: Mute/unmute audio • VOL - Button: Decrease volume •... -
Page 11: Compliance Information
Compliance Information FCC Information This device complies with Part 15 of the FCC Rules. Caution: Any changes or modifications not expressly approved could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to part 15 of the FCC Rules. -
Page 12: Warranty Information
Warranty Information 90-day Limited Warranty Territory: United States/Canada LIMITED WARRANTY TO ORIGINAL CONSUMER This product (including any accessories included in the original packaging) as supplied and distributed new by an authorized retailer is warranted by Southern Telecom, Inc. to the original consumer purchaser against defects in materials and workmanship (“Warranty”) as follows: To obtain warranty service: •... - Page 13 Designed in US Printed in China v1. 10-2021...
- Page 14 Visit us at customersupport123.com ©2021. All rights reserved. Polaroid, Polaroid Color Spectrum and Polaroid Classic Border Logo are trademarks of PLR IP Holdings, LLC, used under license. PLR IP Holdings LLC, does not manufacture this product or provide any manufacturer’s warranty or support.
