MPC-B1500A(D) Hardware Manual
M
I Corporation
2

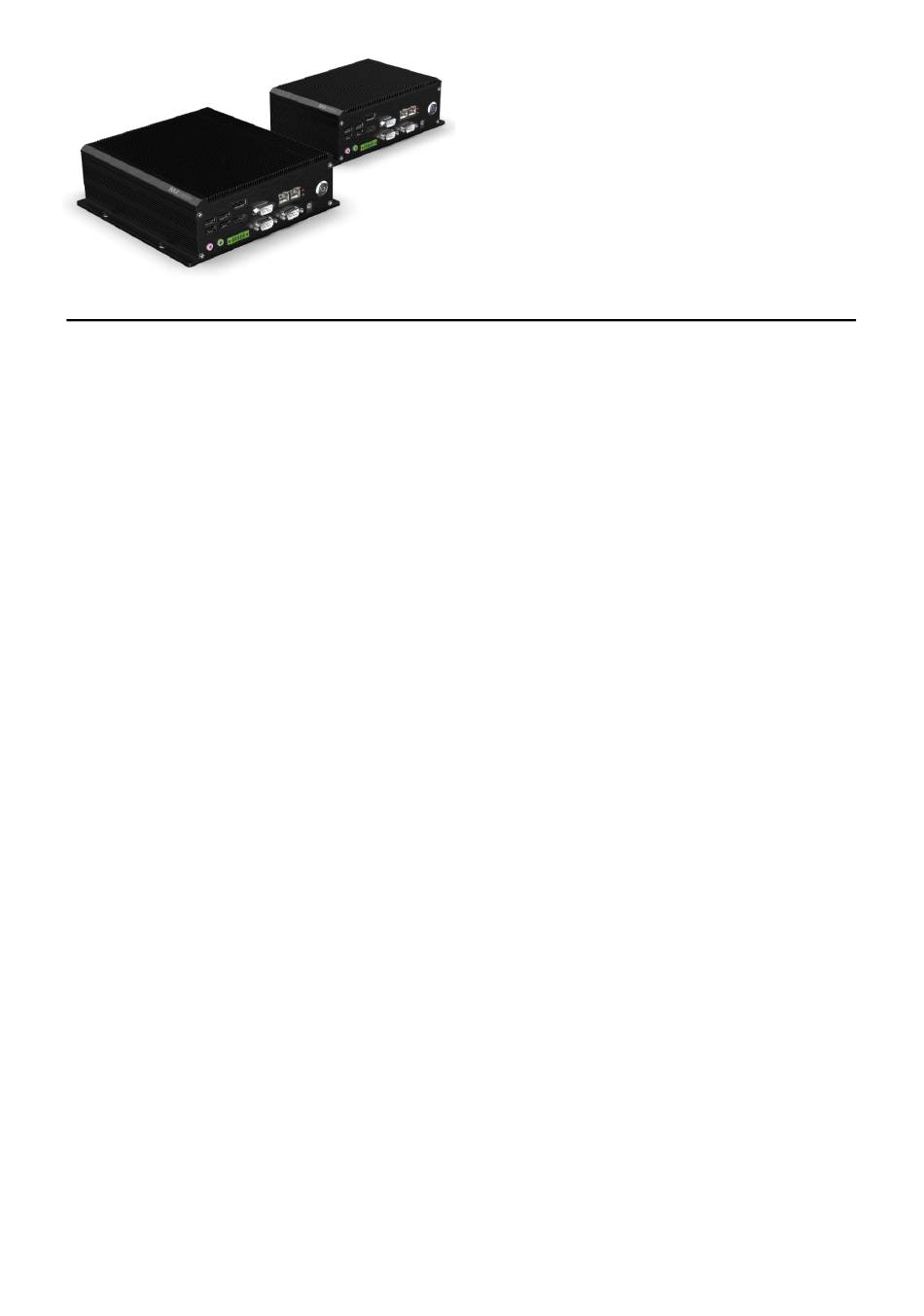

Industrial PC based BOX-HMI
MPC-B1500A(D)
Hardware Manual
Thank you for purchasing the Industrial PC based BOX-HMI
(BOX-PC).
Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this
product.
1 / 19
M2I Corporation
11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea
Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr
Advertisement
Table of Contents
Related Manuals for M2I MPC-B1500A
Summary of Contents for M2I MPC-B1500A
- Page 1 Thank you for purchasing the Industrial PC based BOX-HMI (BOX-PC). Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this product. 1 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
-
Page 2: Table Of Contents
3.8 Option Specifications ..............................7 3.9 Environment Specifications ............................7 3.10 Structure Specifications ............................... 7 Chapter 4 Part Names and General Specifications ........................8 4.1 MPC-B1500A ..................................8 4.2 MPC-B1500D..................................9 4.3 Part Names and General Specifications ....................... 10 Chapter 5 Installation....................................11 5.1 Installation Requirement ............................. -
Page 3: Chapter 1 Safety Precautions
FG Terminal must be used a dedicated ground. Not doing so could result in malfunctions. Grounding should be the Class 3 grounding. The cable for grounding should be more than 2㎟. 3 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... - Page 4 ■ All field-wiring connections to this unit shall be from Limited Voltage / Limited Current, below 24Vdc isolated secondary source with an output fuse, or Class 2. *It is for MPC-B1500D only. 4 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
-
Page 5: Chapter 2 Overview
2.3 Explanation of Model Name 2.3.1 Basic Model Name Base Unit Certifications Power MPC- B1500: Intel 8th Core-i5 A: AC/DC Integrated SMPS D: DC Adaptor Input 5 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 6: Chapter 3 General Specifications
*Outer Adaptor required 100W or more recommended *When using an outer adaptor with MPC-1500D, please check output voltage and current. Product can be damaged. 6 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 7: Option Specifications
Item Model Description MPC-B1500A Weight (Kg) MPC-B1500D Cooling System Natural Air Circulation Installation Method Floor hold / Fixing halls Case Material AL(Aluminum) 7 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 8: Chapter 4 Part Names And General Specifications
MPC-B1500A(D) Hardware Manual Chapter 4 Part Names and General Specifications 4.1 MPC-B1500A 4.1.1 Product Dimension 8 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 9: Mpc-B1500D
MPC-B1500A(D) Hardware Manual 4.2 MPC-B1500D 4.2.1 Product Dimension 9 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 10: Part Names And General Specifications
Main Unit’s Power Switch MPC-B1500A Voltage Switch Slide Switch-2P Input Voltage Selection Switch MPC-B1500A Power Input Terminal Block-3P(7.62mm) AC Power Input MPC-B1500A 10 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 11: Chapter 5 Installation
(5) Keep the product away from noise cause like power cable, and wiring length should be short as possible. 5.2 Attachment with MDP Series This product can be attached to MDP (made by M2I Corporation) Series’ rear fixing halls. Chapter 6 Interface with other Devices Please refer to below explanations to communicate with other devices. - Page 12 9Pin male Output Data Terminal Ready Signal Ground Output Data Set Ready Output Request to Send Input Clear to Send Input Ringing Indicator 12 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr...
-
Page 13: Ethernet Setting And Specifications
Communication Method Base Band Switch Method AUTO MDIX Max. Segment Length 100M(Between Hub) Communication Cable UTP(Unshielded Twisted Pair) Modular Jack RJ-45 x 2Ch 13 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 14: Usb Specifications
HDMI Type A, 1 Port 6.5 DP Specifications Type Item Description DP Version DP V1.2 Resolution Max. 4096x2306@60Hz Connector Type Standard DisplayPort, 1 Port 14 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 15: Chapter 7 Wiring
Pin Terminal as below specifications. Thus, users must be aware of below Pin Terminal guide. 1.8~2.0 22~18 12~14 3.3~3.8 2~2.5 15 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 16: Ground Wiring
It will take about 10 minutes. All saved data will be deleted by recovery, so use this function very carefully. 16 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 17: Chapter 9 Maintenance
Check the power switch’s surface about damage, scratch, pollution. (3) Related Items a. Check about any pollutions or foreign substances on all of contact points. 17 / 19 M2I Corporation 11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14055, Korea Tel: +82-31-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr... -
Page 18: Problems With The Device
MPC-B1500A(D) Hardware Manual 9.3 Problems with the Device (1) If there is a problem during operation, stop using it and contact the A/S department of M2I, which is indicated on the product label. (2) Only the authorized worker from M2I can check and repair problems related to malfunction of the machine. -
Page 19: Mpc-B1500D
I Corporation 2023.09 www.m2i.co.kr - Please read related contents in this manual when you use M2I product, and operate the product staying safe with appropriate handling. - This manual should be stored in secured and appointed place so that it can be read in any needs.
