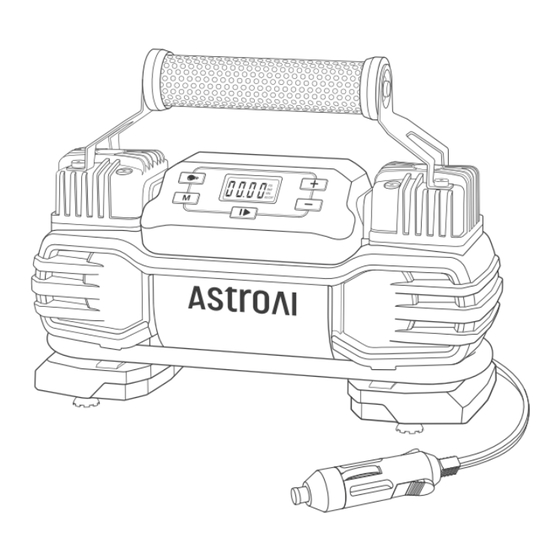

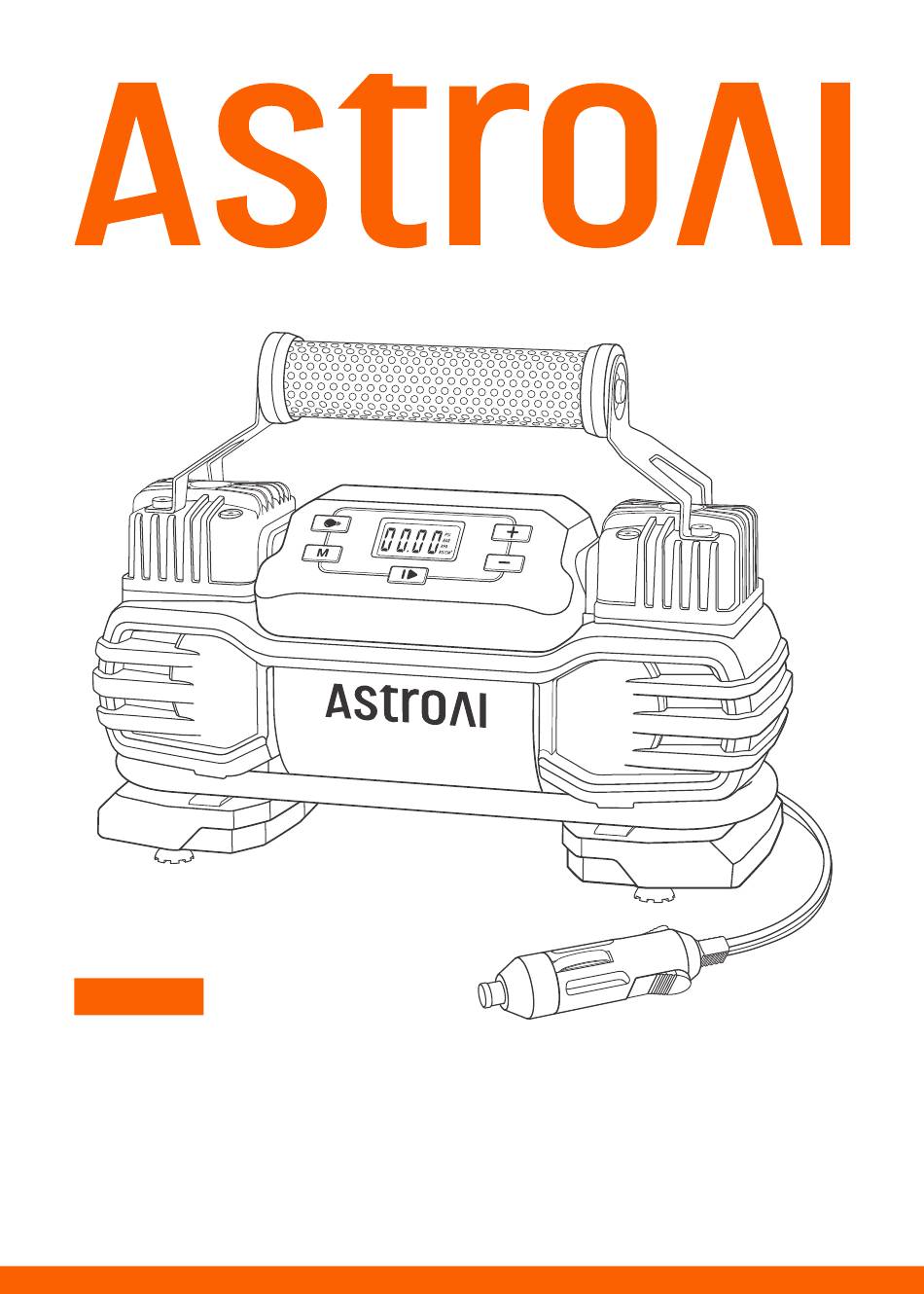

- Page 1 AIRUN T2 AIR COMPRESSOR TWIN CYLINDER USER MANUAL...
- Page 2 Once the preset air pressure is reached, the air compressor will automatically shut o . Thank you again for choosing AstroAI, if you have any questions or concerns regarding your product, please contact us via support@astroai.com. Please fully read and understand this manual before using this product and keep this manual for future reference.
- Page 3 WARNING Please read the instructions carefully before use. Incorrect usage may damage the product. The working current will increase with the inflation pressure. To protect the vehicle’s fuse, please use the cigarette lighter or the battery clamp if the tire pressure is lower than 50 PSI, and use the battery clamp only if the tire pressure is higher than 50 PSI.
- Page 4 During use, do not touch any part of the air compressor apart from the switch and handle. The air compressor gets hot during use and stays hot for some time after. Please do not use this product in the rain or near any liquids. Do not aim the nozzle at people or any part of a human body.
- Page 5 DIAGRAM KG/CM² LED Light Start Button Metal Heat Sink “M” Button “+” & “-” Buttons Quick Connector LED Button Handle 12 V Cigarette Lighter - 05 -...
- Page 6 5 m Coiled Air Hose Needle Valve Adapter Battery Clamps Replacement Fuse Presta to Schrader Adapter Storage Bag 2 × Air Nozzles - 06 -...
- Page 7 FEATURES Dual power supplies Auto Shuto : Once the preset air pressure is reached, the air compressor will automatically shut o . LCD Screen: Easy to operate, read and understand. Longer Power Cord: The 11.48 ft (3.5 m) power cord makes it easy to reach every car tire.
- Page 8 2. Press the “M” Button to choose the desired unit (4 options: PSI, Bar, kPa, kg/cm²). KG/CM² 3. Use the “+” and “-” Buttons to set the desired pressure. Use the tire pressure guide on the inside of the driver’s door for guidance. Ensure the preset pressure is higher than the current pressure of your tire.
- Page 9 4. Remove the cap from the tire’s valve stem. Connect the quick connector to the tire’s valve stem. If you need to illuminate the surrounding area, press the LED Button “ ”. KG/CM² 5. Press the Start Button, the air compressor will start working. (Note: DO NOT touch the air hose while the compressor is working.) KG/CM²...
- Page 10 ACCESSORY INSTRUCTIONS: BATTERY CLAMPS 1. Securely insert the 12 V power cord into the battery clamps. 2. Connect the black clamp to the negative terminal, connect the red clamp to the positive terminal. Press the “M” Button to turn on the air compressor. When the screen lights up, users can set the desired unit.
-
Page 11: Troubleshooting
2. Remove the cap from the tire’s valve stem, connect the air hose nozzle to the valve stem. (Tips: For better sealing when using the quick connector, align it to the valve stem, firmly press it in and flip the small lever.) KG/CM²... -
Page 12: Specifications
The connection between the air nozzle and the tire valve is not securely. Excessive use will slow the compressor’s inflation rate. Unplug the compressor and let it cool for 60 minutes. SPECIFICATIONS Model AIRUN T2 Working Voltage DC 12 V Power Rating 205 W Inflation Speed... -
Page 13: Package Includes
WARRANTY PERIOD 2-Year Limited Warranty from AstroAI. Each AstroAI Portable Air Compressor will be free from defects in material and workmanship. This warranty does not cover damage from neglect, misuse, contamination, alteration, accident, or abnormal conditions of operation or handling. - Page 14 Web: www.astroai.com E-Mail: support@astroai.com...
