Summary of Contents for AstroAI ATJ-8366

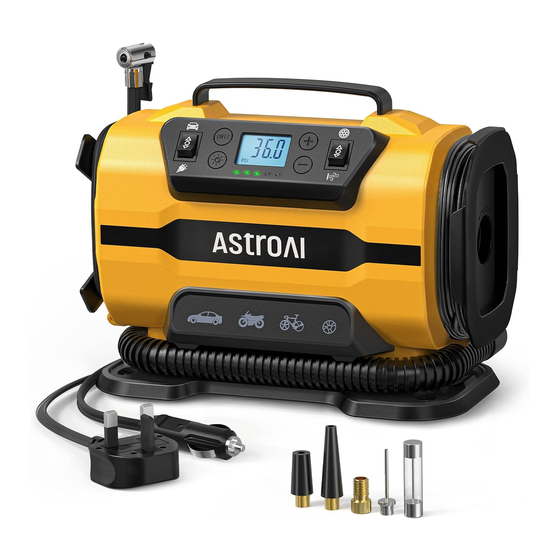

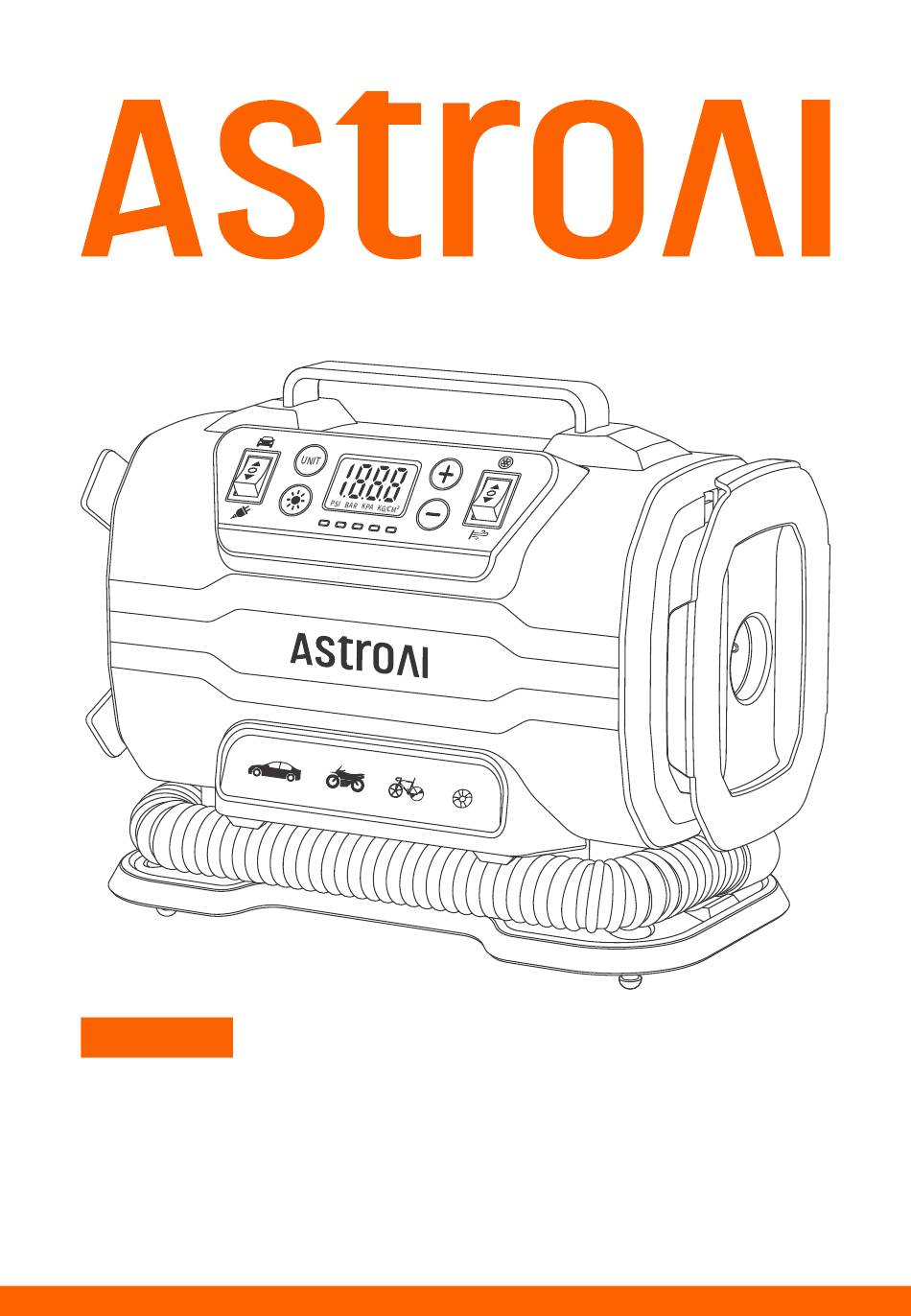

- Page 1 ATJ-8366 MULTIFUNCTIONAL AIR COMPRESSOR USER MANUAL...
-
Page 3: Table Of Contents
CATALOGUE INTRODUCTION WARNING DIAGRAM INSTRUCTIONS TROUBLESHOOTING SPECIFICATIONS PACKAGE INCLUDES FEATURES RECYCLING WARRANTY PERIOD... -
Page 4: Introduction
Once the preset air pressure is reached, the Air Compressor will automatically shut o . Thank you again for choosing AstroAI, if you have any questions or concerns regarding your product, please contact us via support@astroai.com Please fully read and understand this manual before using this product and keep this manual for future reference. -
Page 5: Warning
WARNING Please read the instructions carefully before use. Incorrect usage may damage the product. Please practice electrical safety while using this product. Do not use the product for unintended purposes. Do not place the air compressor near any heat sources, such as vehicle exhaust pipes. - Page 6 The air nozzle is compatible with all Schrader Valves. For use with cars, midsize SUVs, motorcycles, and bicycles. The large-volume hose is only for inflating and deflating low-pressure, large-capacity objects. During use, do not touch any part of the air compressor apart from the switch and handle.
-
Page 7: Diagram
DIAGRAM UNIT PSI BAR KPA KG CM² 7 Screen 1 Accessory Compartment 2 LED Light 8 ‘+’ & ‘-’ Buttons 3 AC/DC Power Switch 9 Mode Switch 4 Handle Quick Connector 5 LED Button Large-Volume Hose 6 Unit Button 12V Cigarette Lighter Cable - 05 -... - Page 8 Large-Volume Inflate Port Presta to Schrader Adapter Replacement Fuse Large-Volume Deflation Port Needle Valve Adapter AC Power Cord 2 x Air Nozzles - 06 -...
-
Page 9: Instructions
INSTRUCTIONS Tire mode Note: Ensure that your car engine is running before you use it. 1. Firmly insert the compressor’s DC power cable into the car’s 12V cigarette lighter socket. Press the power switch upward to the DC side, the screen will light up when it is powered. (If you are using AC power, press the power switch downward to the AC side.) UNIT PSI BAR KPA KG... - Page 10 2. Press the UNIT button to choose the desired unit. (4 options: PSI, BAR, KPA, Kg/cm².) UNIT UNIT PSI BAR KPA KG CM² 3. Use the ‘+’and ‘-’ buttons to set the desired pressure. Use the tire pressure guide on the inside of the driver’s door for guidance.
- Page 11 4. Remove the valve cap from the valve stem of the tire and connect the air nozzle to the valve stem. If you need to illuminate the surrounding area, press the LED button. Tip: For better sealing when using the quick connector, align it to the valve stem, press it in firmly, and flip the small lever.
- Page 12 Large-volume Mode 1. Firmly insert the compressor’s DC power cable into the car’s 12V cigarette lighter socket. Press the power switch upward to the DC side, the screen will light up when it is powered. (If you are using AC power, press the power switch downward to the AC side.) UNIT PSI BAR KPA KG CM²...
- Page 13 2. Align the hose with the port’s buckle and turn it counterclockwise until it stops. Note: To deflate, insert the hose as instructed in the picture. - 11 -...
-
Page 14: Troubleshooting
3. Insert the nozzle into the object to be inflated. 4. Press the mode switch to the ‘▼’side to start large volume mode. UNIT PSI BAR KPA KG CM² TROUBLESHOOTING Trouble Air Compressor is Operating Abnormally Solution The inflation nozzle is not properly connected to the tire’s valve stem. - Page 15 Trouble Air Compressor Will Not Inflate Solution Ensure the in-line fuse is securely inserted correctly; replace the fuse if necessary. Check the vehicle’s cigarette lighter fuse, it should be rated at 15A. Ensure there is a secure connection between the power cord and 12V socket.
-
Page 16: Specifications
Inflation Hose Length 2.29ft (0.7m) Power Cord Length DC-3m (9.84ft) / AC-9.18ft (2.8m) Dimensions 11.8×6.3×10.2in (0.3×0.16×0.26m) Certificate CE, FCC PACKAGE INCLUDES AstroAI Air Compressor ×1 Air Nozzles ×2 Needle Valve Adapter ×1 Replacement Fuse ×1 ×1 Presta to Schrader Adapter ×1... -
Page 17: Features
FEATURES AC/DC, two types of power supply. Tire mode and large-volume mode. Auto shuto : Once the preset air pressure is reached, the air compressor will automatically shut o . LCD screen: Easy to operate, read and understand. Longer power cords: AC 9.18ft (2.8m), DC 9.84ft (3m). Portable design: Easy to carry and store in a car. -
Page 18: Warranty Period
WARRANTY PERIOD 2 Year Limited Warranty From AstroAI Each AstroAI Portable Air Compressor will be free from defects in material and workmanship. This warranty does not cover damage from neglect, misuse, contami- nation, alteration, accident, or abnormal conditions of operation or handling. - Page 20 Web: www.astroai.com E-mail: support@astroai.com...
Need help?
Do you have a question about the ATJ-8366 and is the answer not in the manual?
Questions and answers
I have the tire mode selected. The compressor is running but no air is coming out of the valve to put on tire valve. Large capacity mode works.
If the AstroAI ATJ-8366 tire compressor is running but not delivering air to the tire valve, possible issues include:
- The inflation nozzle is not properly connected to the tire’s valve stem.
- The preset tire pressure is lower than the current tire pressure.
- The large volume hose is not inserted correctly.
- The mode switch may not be in the correct position (tire mode vs. large-volume mode).
This answer is automatically generated
Where is the fuse compartment?
The fuse is an in-line fuse included with the power cord, but the device does not have a clearly marked fuse compartment or instructions for fuse replacement.
