Inter-fab DURO-BEAM aquaBoard BOARD FALL Installation Instructions page 3

I N S T A L L A T I O N M A N U A L
The BOARD FALL water feature is available in 3 styles described below. Each style will work on a 6, 8 or 10 foot
Duro-Beam aquaBoard™, as well as on the T7™ diving board.
recommended. Please see detailed installation instructions for dive stand installation information and requirements.
BOARD FALL CONFIGURATIONS:
1. BOARD FALL: kit includes Board Fall, Mounting Hardware (4 screws), 8' & 4" of 1/2" Flex PVC Pipe, 1-Union
2. BOARD FALL-L: kit includes Board Fall parts PLUS LED Lights Assembled (RGB), Color Controller, 35' of
Wire (10' on unit – 25' on controller), Coupler. NOTE: No transformer is provided. *
3. BOARD FALL-F: kit includes Board Fall parts PLUS 55' of 25 Strand Fiber Optic Cable Assembled.
NOTE: No light source is provided.
STEP 1: INSTALL BOARD FALL WATER FEATURE ON DURO-BEAM aquaBoard™ :
If purchased, attach the optional waterfall assembly to the underside of the Duro-Beam aquaBoard™ as follows:
IMPORTANT: To keep the BOARD FALL from clogging when installing on a Sand Filter System, an in-line
cartridge filter is recommended on the BOARD FALL water supply line.
A) The BOARD FALL comes from the factory with an 8' length of 1/2" flex PVC pipe attached. The 8' length
goes thru the board and attaches with PVC glue to one side of the 1/2" union. The 4" length of flex PVC
pipe attaches with PVC glue to the stub-up and then to the other side of the 1/2" union.
B) (If Purchased) your BOARD FALL waterfall comes with an optional pre-wired, factory installed LED or Fiber
Optic lighting system. Simply thread the wiring attached to your waterfall lighting system down the channel
in the center of the board along side the 1/2" PVC tubing.
TIP: You may find it simpler to put end of wire into end of hose or tape the wiring to the end of the 1/2"
flex PVC and thread them thru the conduit at one time.
The LED lighting system comes with 10' of wire attached to the LED which goes through the board
and attaches to the coupler, the additional 25' of wiring attaches to the coupler and then passes
through the customer installed conduit to the color controller.
The fiber optic lighting comes with 55' of continuous cable which is passed through the board, then
through the customer installed electrical conduit to the customer provided color light source.
C) Once the water tubing and wiring are threaded all the way through the diving board, from the base side,
gently pull the end of the tubing until the waterfall assembly is pulled gently into the BOARD FALL receiver
on the top of the diving board.

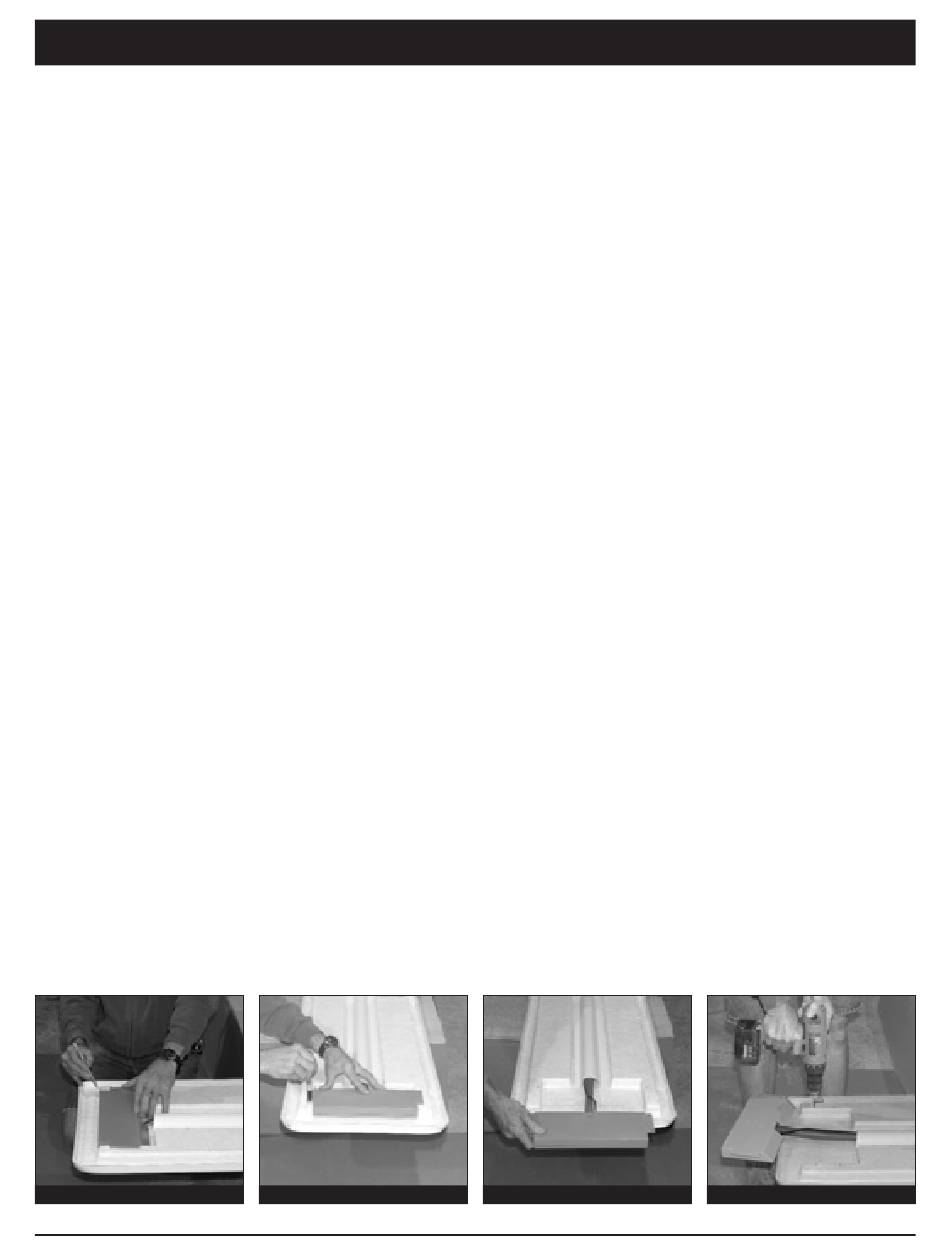

D) Mark the hole locations for attaching the BOARD FALL unit to the board. Locate the BOARD FALL unit
flush to the end of the BOARD FALL receiver. (Fig. D) Use a marker or pencil to mark through the BOARD
FALL holes onto the board. (Fig. E) Pull BOARD FALL unit slightly out of receiver. (Fig. F) Using a 1/8"
drill bit, drill the 4 holes 1/2" deep. (Fig. G) Use tape to mark the drill bit depth. IMPORTANT: Do not
drill the holes deeper than 1/2" as there is a risk of drilling all the way through the board.
E) Attach the waterfall unit to the Diving Board by inserting the 4 provided screws thru the holes in the waterfall
assembly; hand tighten only (DO NOT USE SCREW GUN), over tightening the screws will cause them to
strip inside the board or break the waterfall housing, and voids the warranty.
*WARNING:
Do not attach the color controller directly to 110V, the LED lighting is a low voltage system
requiring a transformer (not included) to provide power to the color controller. Inter-Fab recommends the
Intermatic PX100 transformer. If the Intermatic PX100 is not utilized the color controller Input Rating is:
12 VAC, 1.7 Amp 60/50HZ. Exceeding the input rating will severely damage the color controller and
void the warranty.
Duro-Beam aquaBoard™
Fig. D
BF-IM Rev. 11/09 (BBK-BFALL INST)
Duro-Beam aquaBoard™
Fig. E
a q u a B o a r d ™ B O A R D F A L L
NOTE: Minimum 10 GPM water supply
Duro-Beam aquaBoard™
Fig. F
2
Duro-Beam aquaBoard™
Fig. G
