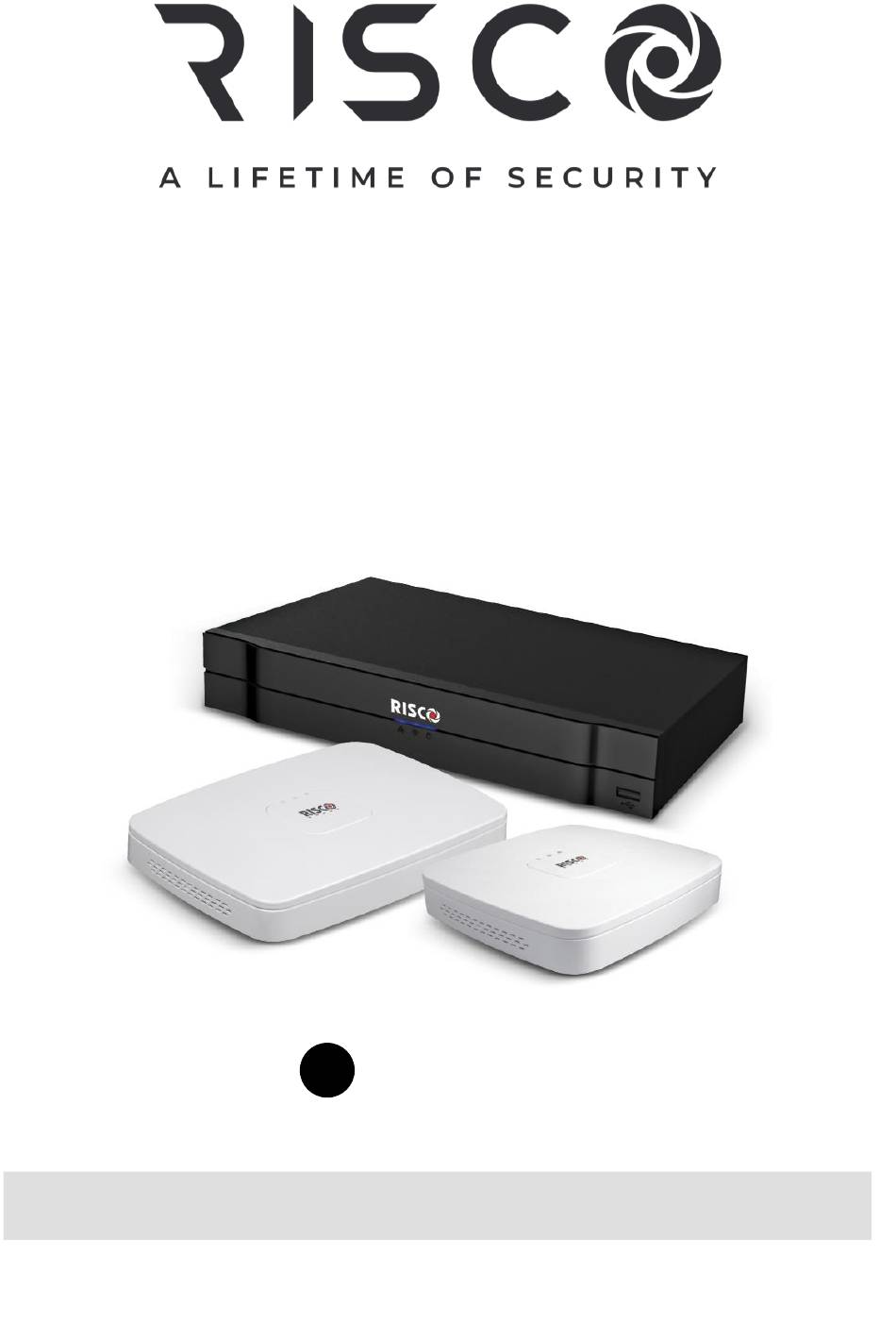

- Page 1 VUpoint Network Video Recorder Models: RVNVR040020/ RVNVR324K1F / RVNVR04002P/ RVNVR080020/ RVNVR160020 Installation Guide...
- Page 2 Language Page...
-
Page 3: Network Video Recorder
VUpoint Network Video Recorder Models: RVNVR040020/ RVNVR324K1F/ RVNVR04002P/ RVNVR080020/ RVNVR160020 Installation Guide... -
Page 4: Safety Precautions
Safety Precautions These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. WARNINGS: Installation or usage of this product that is not in accordance with the intended use as defined by the supplier and as described in the instructional materials can result in damage, injury, or death. -
Page 5: Components And Accessories
Introduction Thank you for purchasing the RVNVR040020/ RVNVR04002P/ RVNVR080020/ RVNVR160020/ RVNVR324K1F Network Video Recorder. This Quick Start Guide will help you become familiar with your NVR in a very short time. Components and Accessories NVR: Installation Guide... - Page 6 4/16 Channel NVR Rear Panel Components Figure 1 RVNVR040020/RVNVR160020 NVR Components NOTE: For Australia/USA, the approved AC/DC adapter shall be used according to the country’s regulations. 4 Channel PoE NVR Rear Panel Components Figure 2 RVNVR04002P Components NOTE: For Australia/USA, it is required to replace the AC power cable according to the country’s regulations.
- Page 7 32 Channel NVR Rear Panel Components HDMI Power Alarm Network Camera Ethernet Port Port Input Port Port Input/Output Figure 4 RVNVR324K1F NVR Components NOTE: For Australia/USA, it is required to replace the AC power cable according to the country’s regulations.
-
Page 8: Hdd Installation
HDD Installation DANGER Shut down the device and then unplug the power cable before you open the case to replace the HDD! All figures listed below are for reference only! For first time installation, please check if the HDD was previously installed. Please use HDD of 7200rpm or higher. - Page 9 32 Channel Align the HDD with Loosen the screws on Turn the device the four holes in the the rear panel and side upside down and then bottom. panel. secure the screws (supplied) firmly. Connect the Data Put back the cover cable and power cable to and then attach the...
- Page 10 NVRs and the RISCO Cloud Installer Application The RISCO Cloud Installer Application provides an interface to your NVR. This enables you to add an NVR or edit an existing one. IMPORTANT – An NVR must first be physically installed before adding the NVR to the system.
- Page 11 Click the Add New NVR button; the Add New NVR side panel opens. Figure 7 Add NVR Side Panel Enter a name for the NVR. Enter the MAC address of the NVR. Click the Add button; the NVR will be added to the network. Figure 8 NVR Added...
- Page 12 All the cameras that are connected to the NVR’s LAN will be automatically detected and displayed on the side panel. 8. Select the boxes of the IP Cameras to be added to the NVR. NOTE: Only the IP Cameras in the list that are enabled can be added. In rare cases, when IP Cameras are on the same LAN and are connected to another site, they will be displayed but not enabled.
- Page 13 Figure 10 Add Camera 10. Recording Mode: If “Motion Detected” is selected, the NVR will record only if motion is detected by the camera. If continuous is selected, the camera will record continuously. 11. Click Save & Continue. Repeat the procedure for the other cameras until all cameras you have selected for the NVR are setup.
- Page 14 13. Select the required network and then enter the password. Figure 12 Selecting Wi-Fi network 14. Click Connect; the connect to Wi-Fi screen opens. Figure 13 Connecting to Wi-Fi 15. Press OK.
- Page 15 Figure 14 Summary of Cameras Added to NVR 16. The defined NVR is displayed in the NVR page and is now added to the site. Figure 15 NVR Page...
- Page 16 Editing an NVR You can edit a selected NVR and add or remove cameras from the NVR. To edit an NVR: From the NVR page, click the NVR Name; the Edit NVR screen opens. RVNVR080020 Figure 16 Edit NVR Screen Field Description Name...
- Page 17 RVNVR080020 Figure 17 Edit NVR Settings 2. Click Save to save the current settings or click Edit Cameras to edit Site cameras; the Cameras list that appears provides information on the cameras that are connected to the NVR and the cameras that are on the NVR network but were not added to the NVR.
- Page 18 Cameras that are already connected to the NVR Cameras that can be added Figure 18 Edit NVR Cameras 3. If you wish to add a camera to the NVR, select the checkbox of the camera that you wish to add and click Add Cameras. The Add Camera side panel opens.
- Page 19 Figure 19 Add Camera 4. From the screen that opens, select the Camera Type and the Recording Mode. If “Motion Detected” is selected, the NVR will record only if motion is detected by the camera. If continuous is selected, the camera will record continuously.
- Page 20 The following screen provides a summary of the cameras that have been newly added to the NVR. 1 camera added to the NVR Figure 20 Cameras Added to NVR Click OK.
-
Page 21: Product Specification
Product Specification Please refer to the following table for product performance specification. Parameter Main Processor Quad-core embedded processor Embedded LINUX IP Camera Input 4/16/32 Channel, 4/8 Channel PoE Two-Way Talk 1 Channel Input, 1 Channel Output, RCA Interface 1 HDMI, 1 VGA HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 Resolution... - Page 22 Parameter 4/8/16CH: 1 SATA III Port, Up to 6 TB capacity Internal HDD 32CH: 2 SATA III Ports, Up to 6 TB capacity each HDD Mode Single 4/16CH: 12VDC/2A 4CH PoE: 48VDC/53VDC, 1.25A/1.13A Power Supply 8CH PoE: 48VDC/53VDC, 2A/1.8A 32CH: 12VDC/4A NVR: <7.5W (Without HDD) Power Consumption: 4/16/32 Channels...
- Page 23 UKCA and CE EMC Compliance Statement Hereby, RISCO Group declares that this equipment is in compliance with the essential requirements of the UKCA Electromagnetic Compatibility Regulations 2016 and CE Directive 2014/30/EU. For the UKCA and CE Declaration of Conformity please refer to our website:...
- Page 24 RISCO, for a period of (i) 24 months from the date of delivery of the Product (the “Warranty Period”). This Limited Warranty covers the Product only within the country where the Product was originally purchased and only covers Products purchased as new.
- Page 25 Entire Liability. The repair or replacement of Products in accordance with this Limited Warranty shall be RISCO’s entire liability and customer’s sole and exclusive remedy in case a material defect in a Product is discovered and reported as required herein. RISCO’s obligation and this Limited Warranty are contingent upon the full payment by customer for such Product and upon a proven weekly testing and examination of the Product functionality.
- Page 26 WERE FORESEEABLE OR RISCO HAS BEEN INFORMED OF THEIR POTENTIAL. Contacting RISCO RISCO Group is committed to customer service and Product support. You can contact us through our website (www.riscogroup.com) or at the following telephone and fax numbers: United Kingdom...
