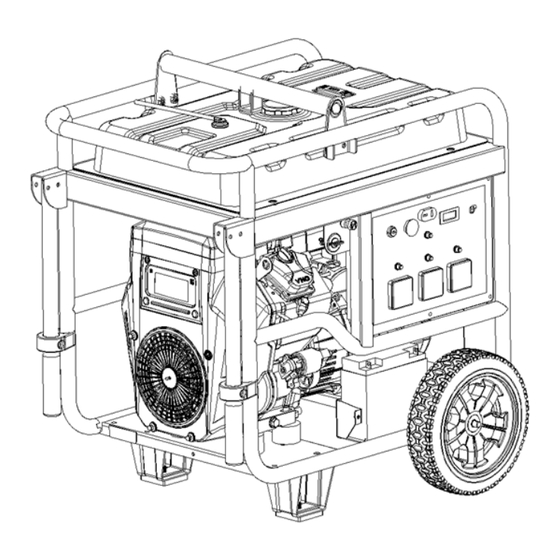

- Page 1 PETROL GENERATOR KEY START, THD<5%, TWIN ENGINE MODEL NUMBER: SABGEN13KECO OPERATING TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND ALL WARNINGS INSTRUCTIONS AND INSTRUCTIONS BEFORE USE.
-
Page 2: Table Of Contents
LOW OIL SHUTDOWN SYSTEM ................23 RESTARTING ENGINE ....................23 DC OVERLOAD CUT OUT ..................24 CARBON BUILD UP ....................24 STORAGE ........................25 MAINTENANCE & REPAIR ..................27 MAINTENANCE SCHEDULE ..................30 MAINTENANCE LOG ....................31 TROUBLESHOOTING ....................32 WIRING DIAGRAM .....................33 LABELS - SABGEN13KECO..................34 WARRANTY INFORMATION ..................36 GENERATOR... -
Page 3: About Your Generator
Take all possible precautions to protect your own safety and that of the people in the immediate vicinity. Save this manual for future reference. SPECIFICATIONS MODEL SABGEN13KECO RATED POWER 10500W MAX POWER 12000W AMPS 13.5... -
Page 4: Hazard Signal Word Definitions
HAZARD SIGNAL WORD DEFINITIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death. -
Page 5: General Warnings & Disclaimer
GENERAL WARNINGS & DISCLAIMER READ and UNDERSTAND this manual completely before using the engine! Failure to properly set up, operate, and maintain this engine could result in serious injury or death from carbon monoxide poisoning, electric shock, fire/explosion, or burns. In particular, be aware of the following hazards: CO Poisoning Engines give off carbon monoxide, an odourless, colourless poisonous gas that can kill you. - Page 6 GENERAL SAFETY RULES FOR OPERATION Read all safety warnings, instructions, illustrations and specifications WARNING provided with this generator. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. This equipment is to be only used for the purpose for which it is designed and intended.
- Page 7 • Know proper use / how to stop. Be thoroughly familiar with proper use of the equipment and all engine controls, output receptacles, and connections. Know how to stop the engine quickly (see “Stopping the Generator”). • Instruct operators. The engine owner must instruct all operators in safe engine set-up and operation.
- Page 8 • Avoid contact. Avoid contact with bare wires, terminals, connections, etc. while the unit is running. • Electric shock accident. If an electric shock accident occurs, immediately shut down the source of electrical power. If this is not possible, attempt to free the victim from the live conductor.
-
Page 9: Recommended Oil Type
• Fill container on the ground. Never fill the portable petrol container while it is sitting inside a vehicle, trailer, trunk, or pick-up truck bed. ALWAYS place container on the ground to be filled. • Keep nozzle in contact with container. Keep nozzle in contact with the portable container at all times while filling. -
Page 10: Component Identification
COMPONENT IDENTIFICATION Control Panel. See next page for panel identification Fuel Gauge designed for your generator. Fuel Cap Folding Handle Oil Dipstick Battery Air Filter Starter Grip Rubber Foot Oil Drain Plug Choke Knob Fuel Valve GENERATOR... -
Page 11: Control Panel Identification
CONTROL PANEL IDENTIFICATION MODEL: SABGEN13KECO ENGINE KEY START IGNITION SWITCH LOW OIL INDICATOR Engine start and on/off switch control. The low oil level indicator light illuminates when the oil level is too low. If the engine DC BREAKER runs low on oil during operation, the engine will stop operating within 10 seconds. -
Page 12: Assembly
ASSEMBLY REMOVE SHIPPING BRACKET • Remove and discard the shipping bracket and mounting hardware before assembling the Generator. ASSEMBLING THE WHEEL KIT AND FRAME FOOT • Raise or tilt generator so you can slide the wheel axle pin into the wheel, the washer, the wheel mounting hole located on the side of the frame and the other washer. -
Page 13: Generator Set Up
SET UP AS A BUILDING BACKUP SABGEN13KECO provides up to 12000W of electrical power so it’s ideal for use as a building backup power source. For this application, you must arrange for a licensed electrician to connect the generator to your buildings electrical system via the installation of an approved transfer switch. - Page 14 electrician in compliance with all applicable building and electrical codes and in accordance with guidelines supplied by your power company. There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction.
- Page 15 Grounding is not required when the generator is used as a portable power source. Below grounding method is only needed by a qualified electrician if not connecting WARNING through your building’s electrical system. If the generator is not grounded through your building’s electricial system, follow the procedure below.
- Page 16 SELECT A SUITABLE SITE Before using the generator, you must select a suitable OUTDOOR location for installation and operation that meets the following criteria: DRY, LEVEL SURFACE The generator should be positioned on a dry, firm, level surface. Ensure that the generator sits level and will not slide or shift during operation.
- Page 17 • Do not operate with a tarp, blanket, or cover surrounding the generator. Heat build-up from inadequate ventilation can result in fire, posing a serious risk to nearby persons and structures. Situate so there is adequate clearance around WARNING generator to allow for cooling airflow so that heat does not build up. HOT EXHAUST CLEARANCE •...
-
Page 18: Power Load Planning & Management
POWER LOAD PLANNING & MANAGEMENT NEVER exceed the rated wattage capacity of your generator. OVERLOADING may cause SERIOUS DAMAGE to the generator and attached electrical devices and may WARNING result in fire. Your generator MUST BE SIZED PROPERLY to provide both the running and starting (surge) wattage of the devices you will be powering. Before using your generator, determine the running and starting wattage requirements of all the electrical devices you will be powering simultaneously. -
Page 19: Starting The Engine
STARTING THE ENGINE PRE-OPERATION CHECK Check that all shields and covers are in place, and all nuts, bolts, and screws are tightened. Check the engine oil level. Add oil if low. Do not overfill. Running the engine without sufficient oil can cause unrepairable damage. Fill oil to the bottom lip of the dipstick... - Page 20 TO START THE ENGINE Disconnect all loads to the generator. Turn off the master switch to ensure that no electrical current is connected to the generator. FUEL VALVE LEVER • Turn the fuel valve lever to the ON position. Wait for a minute for the fuel to enter to the carburettor (for first time use).
-
Page 21: Stop The Engine
A running engine is hot enough to ignite fuel. Never add fuel or remove gas cap if engine is running or still hot. Let cool at least 2 minutes. Check engine oil level each time you refuel. Change oil after the first 20 operating hours and at least every 50 operating hours thereafter. -
Page 22: Connecting Loads
CONNECTING LOADS You will want to be careful when connecting loads so as not to overload the generator, especially if you are powering devices with motors that require a higher starting power load. Instructions are provided below for connecting loads when you are using the generator as a portable power source. -
Page 23: Low Oil Shutdown System
CHARGING A BATTERY It’s suggested to wear protective clothing, gloves and eye protection when handling and working with lead acid batteries. For operators with pacemakers or similar medical devices and conditions, it is recommended not to attempt the following procedure. WARNING DO NOT attempt to charge a lead acid battery in confined areas. -
Page 24: Dc Overload Cut Out
DC OVERLOAD CUT OUT Exceeding the rated capacity of your generator can result in serious damage to your CAUTION generator and connected apparatus. • The DC circuit has a circuit breaker to protect the generator from over loading. • If the circuit breaker trips, unplug all electrical apparatus from the generator. •... -
Page 25: Storage
STORAGE When you are finished using the generator, you must: • Disconnect all loads. • Shut off fuel supply. • Disconnect spark plug and battery. • Store the generator properly. • Plan on operating the engine regularly unless the generator is prepared for long-term storage. - Page 26 PERFORM REGULAR MAINTENANCE Perform periodic maintenance as directed in this manual to keep the generator in safe working condition. PREPARE ENGINE FOR LONG TERM STORAGE If you will not be able to operate the generator regularly, you must prepare the engine for long term storage to prevent gum deposits from forming and causing malfunction of the engine.
-
Page 27: Maintenance & Repair
MAINTENANCE & REPAIR Proper care for your generator is essential for safe, economical and trouble-free operation. It will also reduce pollution. For all maintenance and repair instructions, please read the following information. ALWAYS shut off the generator, disconnect the spark plug, disconnect the battery (negative cable first, then positive cable second), and discharge the capacitor before cleaning, adjusting, or servicing the engine. - Page 28 PETROL TANK FILTER • Stop the engine and turn off the main switch. • Turn the fuel valve to the OFF position. • The petrol tank filter is located directly under the petrol cap to protect impurities from entering the fuel tank during refuelling. •...
- Page 29 FOAM FILTER CLEANING • Clean the foam air filter in warm soapy water, rinse, and allow to dry thoroughly, or clean in non-flammable solvent and allow to dry. • Dip the foam air filter in clean engine oil, then squeeze out all excess oil. The engine will smoke when started if too much oil is left in the foam air filter SEDIMENT CUP SERVICE Occasionally the fuel inline filter may become clogged and need replacing.
-
Page 30: Maintenance Schedule
MAINTENANCE SCHEDULE To prevent accidental starting that could cause serious personal injury, WARNING always switch off the engine and disconnect the spark plug wire/lead before carrying out maintenance work. PERIODIC MAINTENANCE Item Remarks Pre- Initial 1 Every 3 Every 6 Every operation month... -
Page 31: Maintenance Log
MAINTENANCE LOG MAINTENANCE LOG Your SABER generator is protected by a 2 year limited warranty (3 month on battery) that covers the product for normal use. The warranty statement is found on the back of this Manual. You must understand that negligence or misuse is not covered in the warranty and failure to properly maintain and service the engine can void your warranty. -
Page 32: Troubleshooting
TROUBLESHOOTING GENERATOR TROUBLE SHOOTING GUIDE First check below common start up issues: Does the unit have fuel in it? Is the engine oil filled up to the threads? Have you changed/cleaned spark plug? If the above checklist has been conducted, please refer to the points below: Problem Possible Cause Suggested Correction... -
Page 33: Wiring Diagram
WIRING DIAGRAM OPERATING MANUAL... -
Page 34: Labels - Sabgen13Keco
LABELS - SABGEN13KECO GENERATOR... - Page 35 OPERATING MANUAL...
-
Page 36: Warranty Information
WARRANTY INFORMATION This warranty is provided by Total Tools (Importing) Pty Ltd of 20 Thackray Road, Port Melbourne VIC 3207. Phone: 03 9261 1900 (we, us, our). Express Warranty Subject to the exclusions set out below, we warrant that this product will be free from defects in materials or workmanship for 24 months from the date of purchase.
