Summary of Contents for Saber Compact SABGEN7KBP
-

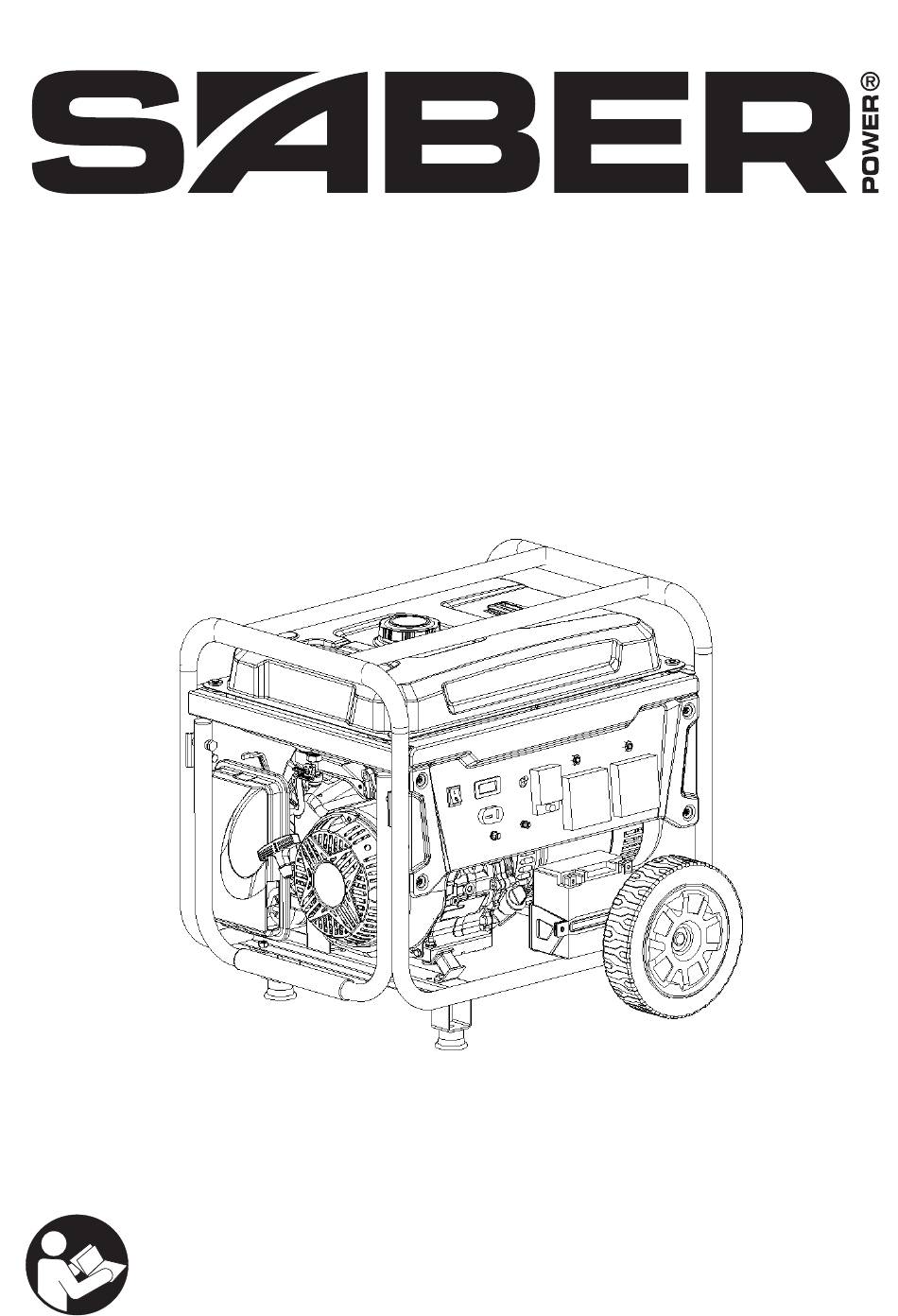

Page 1: Operating Instructions
PETROL GENERATOR RECOIL START/KEY START, THD<5%, BUILDERS PACK MODEL NUMBERS: SABGEN7KBP, SABGEN9KBP OPERATING TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND ALL WARNINGS INSTRUCTIONS AND INSTRUCTIONS BEFORE USE. -
Page 2: Table Of Contents
STOP THE ENGINE ......................23 DURING AN EMERGENCY ..................23 CARBON BUILD UP ....................23 STORAGE ........................24 MAINTENANCE & REPAIR ..................26 MAINTENANCE SCHEDULE ..................28 MAINTENANCE LOG ....................29 TROUBLESHOOTING ....................30 WIRING DIAGRAM .....................31 LABELS - SABGEN7KBP .....................32 LABELS - SABGEN9KBP .....................33 NOTES ...........................34 WARRANTY INFORMATION ..................36 GENERATOR... -
Page 3: About Your Generator
Take all possible precautions to protect your own safety and that of the people in the immediate vicinity. Save this manual for future reference. SPECIFICATIONS MODEL SABGEN7KBP SABGEN9KBP RATED POWER 6000W 7200W... -
Page 4: Hazard Signal Word Definitions
HAZARD SIGNAL WORD DEFINITIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death. -
Page 5: General Warnings & Disclaimer
GENERAL WARNINGS & DISCLAIMER READ and UNDERSTAND this manual completely before using the engine! Failure to properly set up, operate, and maintain this engine could result in serious injury or death from carbon monoxide poisoning, electric shock, fire/explosion, or burns. In particular, be aware of the following hazards: CO Poisoning Engines give off carbon monoxide, an odourless, colourless poisonous gas that can kill you. -
Page 6: General Safety Rules For Operation
GENERAL SAFETY RULES FOR OPERATION Read all safety warnings, instructions, illustrations and specifications WARNING provided with this generator. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. This equipment is to be only used for the purpose for which it is designed and intended. - Page 7 • Know proper use / how to stop. Be thoroughly familiar with proper use of the equipment and all engine controls, output receptacles, and connections. Know how to stop the engine quickly (see “Stopping the Generator”). • Instruct operators. The engine owner must instruct all operators in safe engine set-up and operation.
- Page 8 • Avoid contact. Avoid contact with bare wires, terminals, connections, etc. while the unit is running. • Electric shock accident. If an electric shock accident occurs, immediately shut down the source of electrical power. If this is not possible, attempt to free the victim from the live conductor.
-
Page 9: Recommended Oil Type
• Fill container on the ground. Never fill the portable petrol container while it is sitting inside a vehicle, trailer, trunk, or pick-up truck bed. ALWAYS place container on the ground to be filled. • Keep nozzle in contact with container. Keep nozzle in contact with the portable container at all times while filling. -
Page 10: Component Identification
COMPONENT IDENTIFICATION Control Panel. See next page for panel identification Fuel Gauge designed for your generator. Fuel Cap Fuel Valve Choke Lever Battery Air Filter Starter Grip Folding Handle Rubber Foot Oil Drain Plug Oil Fill Cap/Dipstick GENERATOR... -
Page 11: Control Panel Identification
CONTROL PANEL IDENTIFICATION MODEL: SABGEN7KBP MODEL: SABGEN9KBP ENGINE KEY START IGNITION SWITCH LOW OIL INDICATOR Engine start and on/off switch control. The low oil level indicator light illuminates when the oil level is too low. If the engine DC BREAKER runs low on oil during operation, the engine will stop operating within 10 seconds. -
Page 12: Assembly
ASSEMBLY REMOVE SHIPPING BRACKET (Fig 1.) • Remove and discard the RED shipping bracket and mounting hardware before starting the Generator. ATTACHING WHEELS (Fig 2.) • Parts needed- 2 wheels, 2 axles, 2 locking pins, 4 washers, 2 hub caps and 2 self-tapping screws. -
Page 13: Generator Set Up
GENERATOR SET UP PLANNING THE POWER LOAD Plan your power load so that you do not exceed the generator’s rated capacity. To calculate the running and starting wattage requirements for the devices you will be powering, follow these steps on page 18. SET UP AS A PORTABLE POWER SOURCE This generator is designed to provide up to its max power (in watts) of electrical power. - Page 14 electrician in compliance with all applicable building and electrical codes and in accordance with guidelines supplied by your power company. There may be Federal or State Occupational Safety and Health Administration (OSHA) regulations, local codes, or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction.
-
Page 15: Extension Cords
Grounding is not required when the generator is used as a portable power source. Below grounding method is only needed by a qualified electrician if not connecting WARNING through your building’s electrical system. If the generator is not grounded through your building’s electricial system, follow the procedure below. - Page 16 Before using the generator, you must select a suitable OUTDOOR location for installation and operation that meets the following criteria: DRY, LEVEL SURFACE The generator should be positioned on a dry, firm, level surface. Ensure that the generator sits level and will not slide or shift during operation. If applicable, block the generator’s wheels to prevent sliding and shifting.
-
Page 17: Power Load Planning & Management
Heat build-up from inadequate ventilation can result in fire, posing a serious risk to nearby persons and structures. Situate so there is adequate clearance around WARNING generator to allow for cooling airflow so that heat does not build up. HOT EXHAUST CLEARANCE •... - Page 18 NEVER exceed the rated wattage capacity of your generator. OVERLOADING may cause SERIOUS DAMAGE to the generator and attached electrical devices and may WARNING result in fire. Your generator MUST BE SIZED PROPERLY to provide both the running and starting (surge) wattage of the devices you will be powering. Before using your generator, determine the running and starting wattage requirements of all the electrical devices you will be powering simultaneously.
-
Page 19: Starting The Engine
STARTING THE ENGINE PRE-OPERATION CHECK Check that all shields and covers are in place, and all nuts, bolts, and screws are tightened. Check the engine oil level. Add oil if low. Do not overfill. Running the engine without sufficient oil can cause unrepairable damage. Fill oil to the bottom lip of the dipstick... -
Page 20: To Start The Engine
TO START THE ENGINE Disconnect all loads to the generator. Turn off the master switch to ensure that no electrical current is connected to the generator. Turn the fuel valve lever to the ON position. Wait for a minute for the fuel to enter to the carburettor (for first time use). -
Page 21: Engine Speed
ENGINE SPEED Engine speed has been factory set to provide safe operation. Tampering with the engine speed adjustment could result in overheating of attachments and could cause a fire. The generator must be run at the correct speed in order to produce the proper electrical voltage and frequency. -
Page 22: Charging A Battery
CHARGING A BATTERY It’s suggested to wear protective clothing, gloves and eye protection when handling and working with lead acid batteries. For operators with pacemakers or similar medical devices and conditions, it is recommended not to attempt the following procedure. WARNING DO NOT attempt to charge a lead acid battery in confined areas. -
Page 23: Stop The Engine
STOPPING THE GENERATOR Stop the engine using the following steps: Turn of all appliances. Disconnect all loads to the generator. Never start or stop the generator with electrical devices plugged in or turned on. Allow the generator to idle for 2-3 minutes and cool down. Turn the engine switch to the off position. -
Page 24: Storage
STORAGE When you are finished using the generator, you must: • Disconnect all loads. • Shut off fuel supply. • Disconnect spark plug and battery. • Store the generator properly. • Plan on operating the engine regularly unless the generator is prepared for long-term storage. -
Page 25: Removal From Storage
PERFORM REGULAR MAINTENANCE Perform periodic maintenance as directed in this manual to keep the generator in safe working condition. PREPARE ENGINE FOR LONG TERM STORAGE If you will not be able to operate the generator regularly, you must prepare the engine for long term storage to prevent gum deposits from forming and causing malfunction of the engine. -
Page 26: Maintenance & Repair
MAINTENANCE & REPAIR Proper care for your generator is essential for safe, economical and trouble-free operation. It will also reduce pollution. For all maintenance and repair instructions, please read the following information. ALWAYS shut off the generator, disconnect the spark plug, disconnect the battery (negative cable first, then positive cable second), and discharge the capacitor before cleaning, adjusting, or servicing the engine. -
Page 27: Petrol Tank Filter
NOTE: Do not spray generator with a garden hose or pressure washer. Water may enter the generator and cause damage to the rotor, stator or internal windings. PETROL TANK FILTER • Stop the engine and turn off the main switch. •... -
Page 28: Maintenance Schedule
MAINTENANCE SCHEDULE To prevent accidental starting that could cause serious personal injury, WARNING always switch off the engine and disconnect the spark plug wire/lead before carrying out maintenance work. PERIODIC MAINTENANCE Item Remarks Pre- Initial 1 Every 3 Every 6 Every operation month... -
Page 29: Maintenance Log
MAINTENANCE LOG MAINTENANCE LOG Your SABER generator is protected by a 2 year limited warranty (3 month on battery) that covers the product for normal use. The warranty statement is found on the back of this Manual. You must understand that negligence or misuse is not covered in the warranty and failure to properly maintain and service the engine can void your warranty. -
Page 30: Troubleshooting
TROUBLESHOOTING GENERATOR TROUBLE SHOOTING GUIDE First check below common start up issues: Does the unit have fuel in it? Is the engine oil filled up to the threads? Have you changed/cleaned spark plug? If the above checklist has been conducted, please refer to the points below: Problem Possible Cause Suggested Correction... -
Page 31: Wiring Diagram
WIRING DIAGRAM MODEL: SABGEN7KBP, SABGEN9KBP OPERATING MANUAL... -
Page 32: Labels - Sabgen7Kbp
LABELS - SABGEN7KBP GENERATOR... -
Page 33: Labels - Sabgen9Kbp
LABELS - SABGEN9KBP OPERATING MANUAL... -
Page 34: Notes
NOTES GENERATOR... - Page 35 NOTES OPERATING MANUAL...
-
Page 36: Warranty Information
WARRANTY INFORMATION This warranty is provided by Total Tools (Importing) Pty Ltd of 20 Thackray Road, Port Melbourne VIC 3207. Phone: 03 9261 1900 (we, us, our). Express Warranty Subject to the exclusions set out below, we warrant that this product will be free from defects in materials or workmanship for 24 months from the date of purchase.
